Here you will find all available parts and drawings of the 'Bosch 3603CB1300 ( PKS18LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

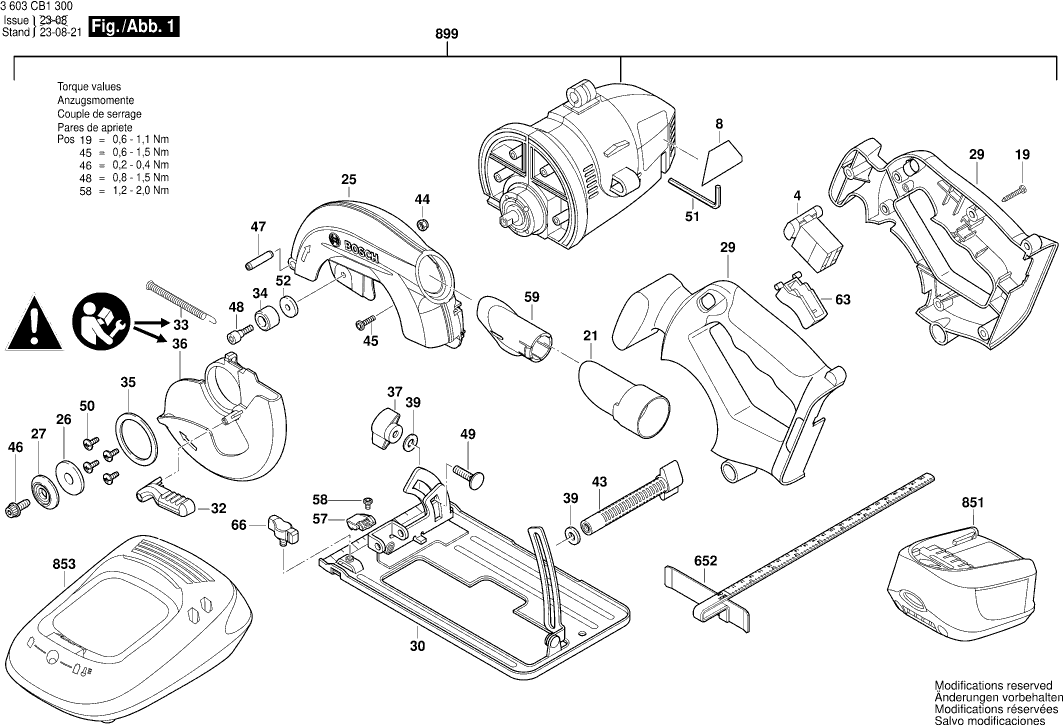

Technical drawing of model Bosch 3603CB1300 ( PKS18LI )
Spare parts list of model Bosch 3603CB1300 ( PKS18LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch | ||||
| 4 | 2607202160 | 13.93 | 16.86 | |
| Nameplate | ||||
| 8 | 1619P31754 | 1.94 | 2.35 | |
| Tapping Screw | ||||
| 19 | 1619P00219 | 0.83 | 1.00 | |
| Dust Extraction | ||||
| 21 | 1619X07202 | 2.24 | 2.71 | |
| Upper guard | ||||
| 25 | 1619X07154 | 11.88 | 14.37 | |
| Washer | ||||
| 26 | 1619X07155 | 2.24 | 2.71 | |
| Washer | ||||
| 27 | 1619X00660 | 1.94 | 2.35 | |
| Set Of Handles | ||||
| 29 | 1619X08511 | 15.71 | 19.01 | |
| Base Plate | ||||
| 30 | 1619X08434 | 20.42 | 24.71 | |
| Lever | ||||
| 32 | 1619X07162 | 1.70 | 2.06 | |
| Extension Spring | ||||
| 33 | 1619X04082 | 3.31 | 4.01 | |
| End stop | ||||
| 34 | 1619X01883 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 35 | 2610386556 | |||
| Lower guard | ||||
| 36 | 1619X07161 | 8.45 | 10.22 | |
| Knob | ||||
| 37 | 1619X05790 | 1.18 | 1.43 | |
| Washer | ||||
| 39 | 1619P01535 | 0.83 | 1.00 | |
| Adjustment Knob | ||||
| 43 | 1619X08286 | 2.24 | 2.71 | |
| Self-locking nut | ||||
| 44 | 2610904165 | 1.94 | 2.35 | |
| Screw | ||||
| 45 | 1619X02855 | 1.18 | 1.43 | |
| Flange Bolt | ||||
| 46 | 1619X07196 | 1.70 | 2.06 | |
| Roller Pin | ||||
| 47 | 1619X01894 | 2.71 | 3.28 | |
| Shoulder Screw | ||||
| 48 | 1619X02626 | 1.94 | 2.35 | |
| Round-Head Bolt | ||||
| 49 | 2610017262 | 1.70 | 2.06 | |
| Oval-Head Screw A 4x12-10,9-D | ||||
| 50 | 2914201503 | 1.70 | 2.06 | |
| Turnbuckle | ||||
| 51 | 1619X01897 | 2.24 | 2.71 | |
| Washer | ||||
| 52 | 1619X01898 | 1.70 | 2.06 | |
| Window | ||||
| 57 | 1619X08436 | 1.70 | 2.06 | |
| Screw | ||||
| 58 | 1619X05012 | 1.18 | 1.43 | |
| Dust-Tight Plate | ||||
| 59 | 1619X07201 | 1.70 | 2.06 | |
| Lever | ||||
| 63 | 1619X07217 | 1.18 | 1.43 | |
| Wing Screw BLACK | ||||
| 66 | 1619X05823 | 1.94 | 2.35 | |
| Edge Guide | ||||
| 652 | 1619X08284 | 5.33 | 6.45 | |
| Battery Pack PBA 18V 2,0 Ah W-B | ||||
| 851 | 2607337211 | 73.72 | 89.20 | |
| Battery Pack PBA 18V 2,5Ah W-B 45Wh | ||||
| 851 | 1607A350RU | 73.72 | 89.20 | |
| Battery Pack PBA 18V/1,5 Ah W-A | ||||
| 851 | 2607337187 | 57.10 | 69.09 | |
| Battery Pack PBA 18V/1,5 Ah W-A | ||||
| 851 | 1607A350JM | 55.25 | 66.85 | |
| Charger AUS AL 1830 CV 230/14,4-18V 1h | ||||
| 853 | 2607225969 | 67.25 | 81.37 | |
| Fast Charger EU AL 1830 CV 230/14,4-18V 1h | ||||
| 853 | 2607225965 | 44.82 | 54.23 | |
| No information available, not orderable | ||||
| 899 | 06033B1300 | |||
