Here you will find all available parts and drawings of the 'Bosch 0603264103 ( PKP20E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

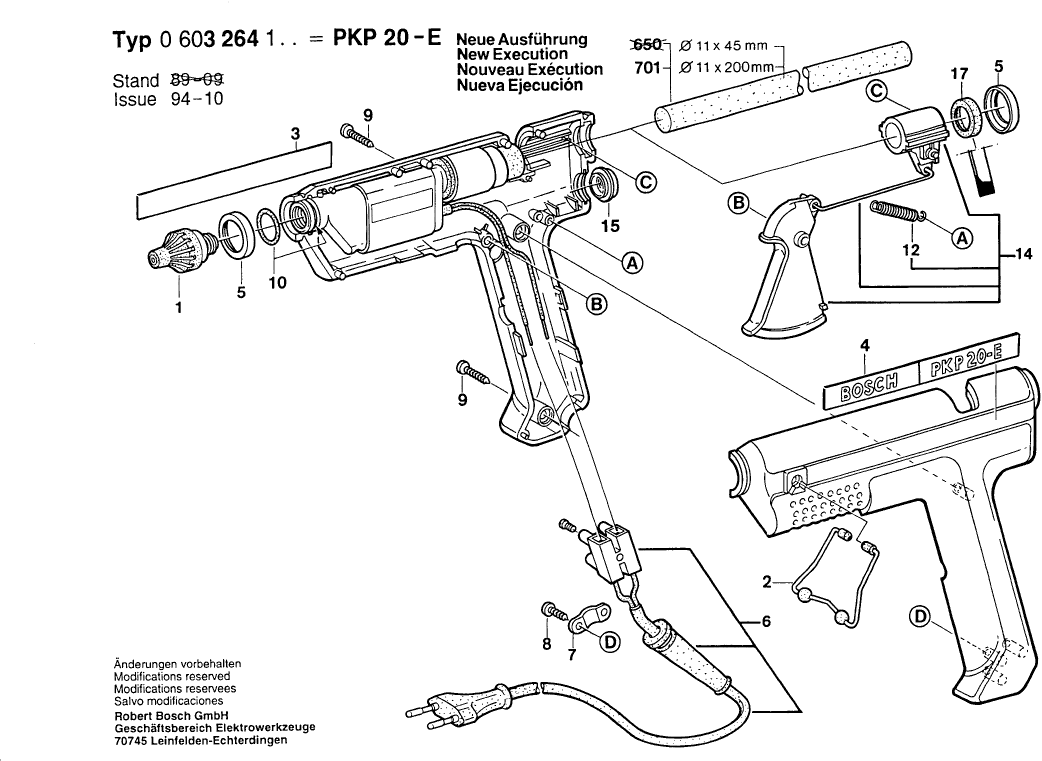

Technical drawing of model Bosch 0603264103 ( PKP20E )
Spare parts list of model Bosch 0603264103 ( PKP20E )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Nozzle Body | ||||
| 1 | 1609201241 | 8.45 | 10.22 | |
| Support Bracket | ||||
| 2 | 1609201242 | 1.18 | 1.43 | |
| Nameplate | ||||
| 3 | 1601110293 | 0.83 | 1.00 | |
| Sticker | ||||
| 4 | 1601110294 | 0.83 | 1.00 | |
| Clamping Sleeve | ||||
| 5 | 1609201243 | 1.18 | 1.43 | |
| Power supply cord | ||||
| 6 | 1609201244 | 8.45 | 10.22 | |
| Fastening Clamp | ||||
| 7 | 1609201245 | 0.83 | 1.00 | |
| Tapping Screw DIN 7971-BZ2,9x13 | ||||
| 8 | 2910211006 | 0.83 | 1.00 | |
| Tapping Screw DIN 7971-BZ2,9x16 | ||||
| 9 | 2910211007 | 1.18 | 1.43 | |
| O-Ring | ||||
| 10 | 1609201246 | 1.18 | 1.43 | |
| Extension Spring | ||||
| 12 | 1609201417 | 1.18 | 1.43 | |
| Parts Set | ||||
| 14 | 1609202403 | 18.19 | 22.01 | |
| Parts Set | ||||
| 14 | 1609202404 | 13.93 | 16.86 | |
| Signal Disk RED | ||||
| 15 | 1609201420 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 16 | 1609201421 | |||
| Retaining snap ring | ||||
| 17 | 1609201422 | 2.24 | 2.71 | |
| No information available, not orderable | ||||
| 701 | 1609201396 | |||
