Here you will find all available parts and drawings of the 'Bosch 0603221203 (PHS66G)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

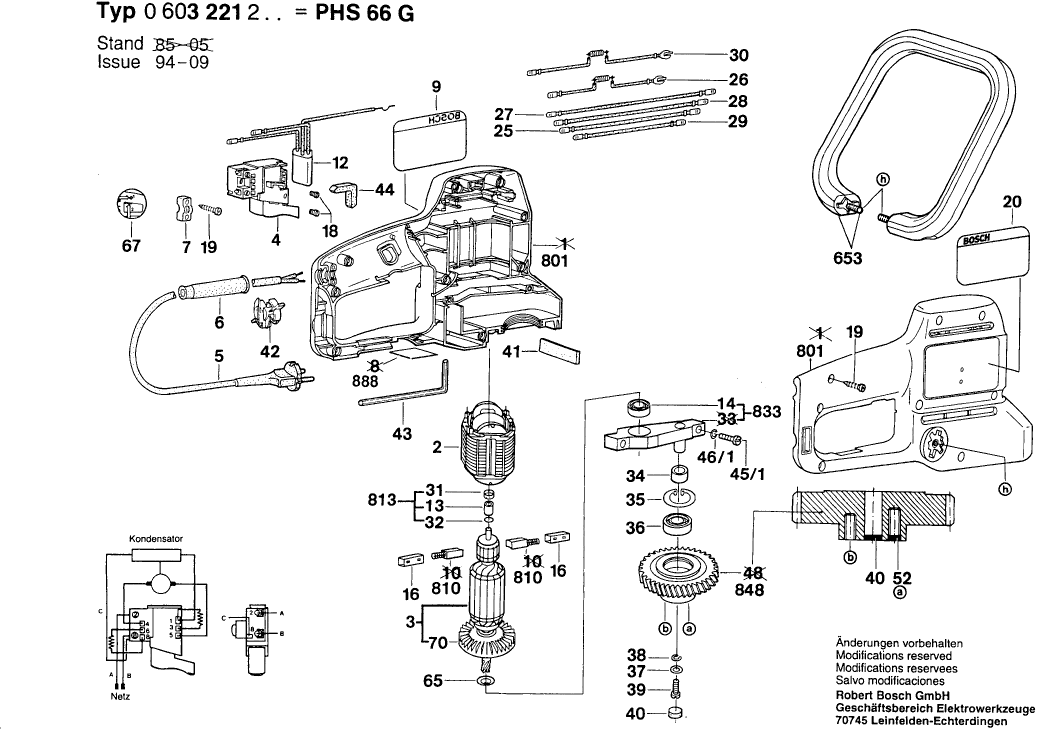

Technical drawing of model Bosch 0603221203 (PHS66G)
Spare parts list of model Bosch 0603221203 (PHS66G)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 2604220392 | 23.90 | 28.92 | |
| No longer available, no replacement | ||||
| 3 | 2604010604 | |||
| No longer available, no replacement | ||||
| 4 | 2607200147 | |||
| No longer available, no replacement | ||||
| 5 | 2604460255 | |||
| Grommet | ||||
| 6 | 1600703016 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Nameplate | ||||
| 8 | 2601105051 | 1.49 | 1.80 | |
| Sticker | ||||
| 9 | 2601110298 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 12 | 1607328028 | |||
| No longer available, no replacement | ||||
| 13 | 1600301900 | |||
| No longer available, no replacement | ||||
| 14 | 2600905003 | |||
| No longer available, no replacement | ||||
| 16 | 2604330016 | |||
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Sticker | ||||
| 20 | 2601110637 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 25 | 2604448060 | |||
| No longer available, no replacement | ||||
| 26 | 2604465044 | |||
| Connecting Cable | ||||
| 27 | 2604448059 | 1.49 | 1.80 | |
| Cable | ||||
| 28 | 2604448057 | 1.49 | 1.80 | |
| Pvc-Insulated Cable | ||||
| 29 | 2604448058 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 30 | 2604465076 | |||
| No longer available, no replacement | ||||
| 31 | 1600205023 | |||
| No longer available, no replacement | ||||
| 32 | 1610210014 | |||
| Spacer Ring | ||||
| 34 | 2600200023 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 35 | 2916660012 | 1.49 | 1.80 | |
| Component | ||||
| 36 | 2600900003 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 37 | 2916021011 | 1.00 | 1.21 | |
| Spring Lock Washer | ||||
| 38 | 2916690004 | 1.50 | 1.82 | |
| Socket head cap screw | ||||
| 39 | 2910011154 | 1.00 | 1.21 | |
| Felt Disc | ||||
| 40 | 2600005001 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 41 | 2601005008 | |||
| Component | ||||
| 42 | 2608040021 | 1.00 | 1.21 | |
| Offset Screwdriver | ||||
| 43 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 43 | 2610364015 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 44 | 2601022000 | |||
| Socket head cap screw | ||||
| 45/1 | 2910011128 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 45/1 | 2603490023 | 1.00 | 1.21 | |
| Spring Lock Washer | ||||
| 46 | 2916690003 | 1.00 | 1.21 | |
| Spring Lock Washer | ||||
| 46/1 | 2916690003 | 1.00 | 1.21 | |
| Pan head screw | ||||
| 47 | 2603410016 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 47 | 2603410018 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 49 | 2910871122 | |||
| No longer available, no replacement | ||||
| 50 | 2603414041 | |||
| No longer available, no replacement | ||||
| 51 | 2602210007 | |||
| No longer available, no replacement | ||||
| 52 | 2600005002 | |||
| Countersunk-Head Screw | ||||
| 53 | 2603421003 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 54 | 2601005002 | |||
| No longer available, no replacement | ||||
| 55 | 2605500115 | |||
| Intermediate Flange | ||||
| 56 | 2605700078 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 57 | 2603413004 | |||
| No longer available, no replacement | ||||
| 58 | 2600100647 | |||
| Hex Nut | ||||
| 59 | 2915061004 | 1.00 | 1.21 | |
| Guide | ||||
| 62 | 2601038022 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 65 | 2916640006 | 1.49 | 1.80 | |
| Sticker | ||||
| 67 | 2601110685 | 1.00 | 1.21 | |
| Component | ||||
| 70 | 2606610047 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 75 | 2910141197 | 1.44 | 1.74 | |
| Spring Washer | ||||
| 76 | 2916060007 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 653 | 2602025059 | |||
| No longer available, no replacement | ||||
| 654 | 2607001111 | |||
| No longer available, no replacement | ||||
| 700 | 1605411023 | |||
| No longer available, no replacement | ||||
| 701 | 1609200399 | |||
| No information available, not orderable | ||||
| 800 | 0603299004 | |||
| Housing Section | ||||
| 801 | 2605104180 | 16.79 | 20.32 | |
| Carbon-Brush Set | ||||
| 810 | 2604321909 | 7.46 | 9.03 | |
| No longer available, no replacement | ||||
| 813 | 1600301900 | |||
| Bearing Bracket | ||||
| 833 | 2605807910 | 14.94 | 18.08 | |
| Overload Clutch | ||||
| 848 | 2606320031 | 34.82 | 42.13 | |
| Set of knives | ||||
| 860 | 2607001041 | 98.18 | 118.80 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
