Here you will find all available parts and drawings of the 'Bosch 0603221803 (PHS560G)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

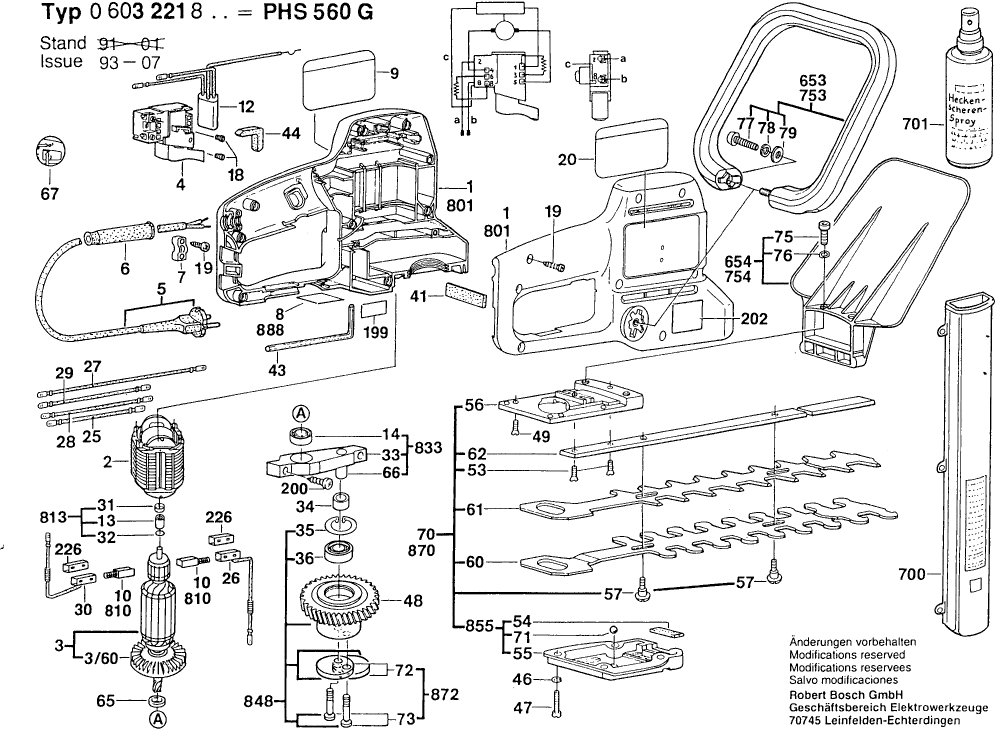

Technical drawing of model Bosch 0603221803 (PHS560G)
Spare parts list of model Bosch 0603221803 (PHS560G)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing GREEN | ||||
| 1 | 2605104218 | 43.12 | 52.18 | |
| No longer available, no replacement | ||||
| 2 | 2604220423 | |||
| No longer available, no replacement | ||||
| 3 | 2604010604 | |||
| Fan | ||||
| 3/60 | 2606610027 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 4 | 2607200147 | |||
| Power supply cord | ||||
| 5 | 1607000227 | 23.90 | 28.92 | |
| Grommet | ||||
| 6 | 2600703008 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Sticker | ||||
| 9 | 2601110146 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 12 | 2607329095 | |||
| groove ball bearing | ||||
| 14 | 2600905021 | 8.35 | 10.10 | |
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Reference Plate SHADOW SIDE | ||||
| 20 | 2601118148 | 2.40 | 2.90 | |
| Connecting Cable | ||||
| 25 | 2604448000 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 26 | 2604465075 | |||
| Cable | ||||
| 27 | 2604448057 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 28 | 2604448118 | 1.49 | 1.80 | |
| Pvc-Insulated Cable | ||||
| 29 | 2604448058 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 30 | 2604465076 | |||
| No longer available, no replacement | ||||
| 31 | 1600205023 | |||
| No longer available, no replacement | ||||
| 32 | 1610210014 | |||
| Spacer Ring | ||||
| 34 | 2600200023 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 35 | 2916660012 | 1.49 | 1.80 | |
| groove ball bearing | ||||
| 36 | 2600905028 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 41 | 2601005008 | |||
| Offset Screwdriver | ||||
| 43 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 43 | 2610364015 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 44 | 2601022000 | |||
| Spring Lock Washer | ||||
| 46 | 2916690003 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 47 | 2603410018 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 49 | 2910871122 | |||
| No longer available, no replacement | ||||
| 53 | 2603421006 | |||
| No longer available, no replacement | ||||
| 54 | 2601005002 | |||
| Intermediate Flange | ||||
| 56 | 2605700078 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 57 | 2603413031 | |||
| Guide 550MM | ||||
| 62 | 2601038033 | 13.13 | 15.89 | |
| No longer available, no replacement | ||||
| 65 | 2600209003 | |||
| Sticker | ||||
| 67 | 2601110685 | 1.00 | 1.21 | |
| Ball | ||||
| 71 | 1903230007 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 73 | 2603123018 | |||
| Hex Socket Head Cap Screw | ||||
| 75 | 2910141197 | 1.44 | 1.74 | |
| No longer available, no replacement | ||||
| 76 | 2916061007 | |||
| Hex Socket Head Cap Screw | ||||
| 77 | 2910141201 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 78 | 2916690005 | |||
| Plain Washer | ||||
| 79 | 2916011014 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 753 | 2602025059 | |||
| No longer available, no replacement | ||||
| 754 | 2607001111 | |||
| No longer available, no replacement | ||||
| 810 | 2604321912 | |||
| No longer available, no replacement | ||||
| 813 | 1600301900 | |||
| Bearing Bracket | ||||
| 833 | 2605807910 | 14.94 | 18.08 | |
| No longer available, no replacement | ||||
| 848 | 2606320900 | |||
| Gear Cover | ||||
| 855 | 2605500904 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 870 | 2607001124 | |||
| No longer available, no replacement | ||||
| 872 | 2600030900 | |||
| Nameplate | ||||
| 888 | 160111A3HC | 2.86 | 3.46 | |
