Here you will find all available parts and drawings of the 'Bosch 0603296008 ( PHO25-83 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

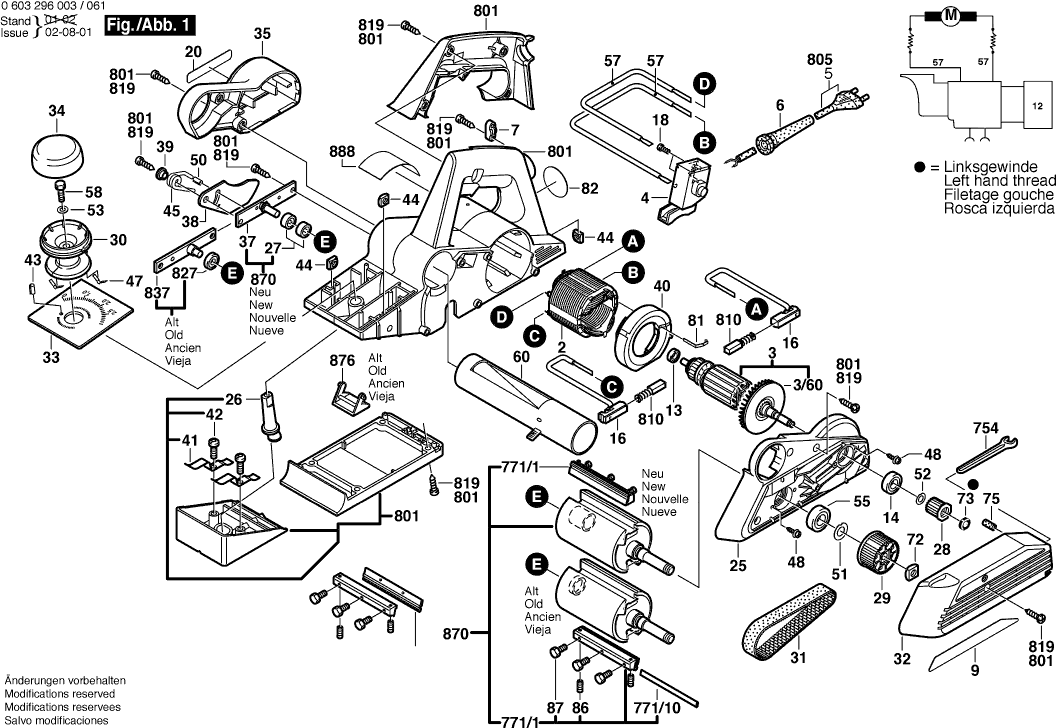

Technical drawing of model Bosch 0603296008 ( PHO25-83 )

Spare parts list of model Bosch 0603296008 ( PHO25-83 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field 230-240V
2 2604220480 18.19 22.01
No longer available, no replacement
3 2604010763
Fan
3/60 2606610049 1.70 2.06
Switch
4 2607200367 5.33 6.45
Grommet Ø7,2-Ø9,5x81 MM
6 1600703026 1.70 2.06
Cable Clip
7 2601035001 1.18 1.43
Manufacturer's nameplate
9 2601117951 2.71 3.28
No longer available, no replacement
12 1607328028
groove ball bearing 7x19x6
13 2600905086 4.70 5.69
No longer available, no replacement
14 2600905052
Brush Holder
16 2604449027 1.18 1.43
Socket head cap screw M3x6,5-4.8
18 2603410001 1.18 1.43
Manufacturer's nameplate SHADOW SIDE
20 1601110481 1.70 2.06
No longer available, no replacement
25 2605719003
No longer available, no replacement
26 2606110001
Needle-Roller Bearing Ø8x8 MM
27 2600917003 2.24 2.71
Toothed Belt Wheel Z=19
28 2600324009 1.70 2.06
No longer available, no replacement
29 2606625009
No longer available, no replacement
30 2602026004
Toothed Belt 17 MM, Z=89
31 2609995917 6.54 7.91
No longer available, no replacement
32 2605510064
Scale Plate
33 2601120003 5.33 6.45
Cap-Handle
34 2605500105 1.70 2.06
No longer available, no replacement
35 2605510063
No longer available, no replacement
37 2605819011
Sheet metal cover
38 2601098036 1.70 2.06
Guide Bushing
39 2600324008 1.18 1.43
Air-Deflector Ring
40 2600290009 2.71 3.28
Spring Plate
41 2601290016 1.70 2.06
Thread-forming tap. Screw M 5x12 MM
42 2603435027 1.18 1.43
Coiled Spring Pin DIN 7343-5x2,5
43 2917800053 1.70 2.06
Square Nut M6
44 2603320004 1.18 1.43
Torsion Spring
45 2604651007 1.18 1.43
Ratchet Spring
47 2601254000 1.18 1.43
Screw and washer assembly
48 2603433000 1.18 1.43
Coiled Spring Pin DIN 7343-3,5x8 MM
50 2917800303 0.83 1.00
Plain Washer DIN 315-M8-GT-C
51 2600100041 1.18 1.43
Shim 0,2 MM THICK
52 1600100632 0.83 1.00
Plain Washer DIN 125-A4,3-ST
53 2916011010 0.83 1.00
groove ball bearing 10x26x8
55 2600905064 8.45 10.22
Connecting Cable L = 288 MM WHITE
57 2604448062 1.18 1.43
Torx Oval-Head Screw 4x20
58 2603490023 0.83 1.00
No longer available, no replacement
60 2600409022
Shrinkable Tube BLACK
68 2600409020 0.83 1.00
Square Nut M8
72 2603320003 1.18 1.43
Round Nut M6 LEFTHAND THREADS
73 2603342006 1.18 1.43
Rubber Buffer
75 2603100053 0.83 1.00
Contact Strap
81 2601329053 1.18 1.43
No longer available, no replacement
86 2603400014
No longer available, no replacement
87 2603450005
Dust Bag
704 2609170013 23.75 28.74
Suction Connector
711 2605702022 0.83 1.00
No longer available, no replacement
720 2605438119
No longer available, no replacement
730 2608133001
No information available, not orderable
750 2607001077
Single-Head Eng. Wrench
754 2607950504 1.70 2.06
Grip-Spring Tensioning E
771/1 2608040039 18.19 22.01
No information available, not orderable
771/10 2607000096
No information available, not orderable
789 2607000102
No longer available, no replacement
796 2607001106
No longer available, no replacement
798 0603095000
No longer available, no replacement
799 0603095002
Housing
801 2605190913 73.72 89.20
No longer available, no replacement
805 1607000389
Carbon-Brush Set
810 2604321905 8.45 10.22
Tapping Screw DIN 7981-ST3,9x19-C-H
819 2910611020 1.18 1.43
No longer available, no replacement
827 2600905037
No longer available, no replacement
837 2605819004
No longer available, no replacement
870 2603204908
No longer available, no replacement
876 2601329055
Nameplate
888 160111A3H3 1.94 2.35
