Here you will find all available parts and drawings of the 'Bosch 0603258103 ( PHO200 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

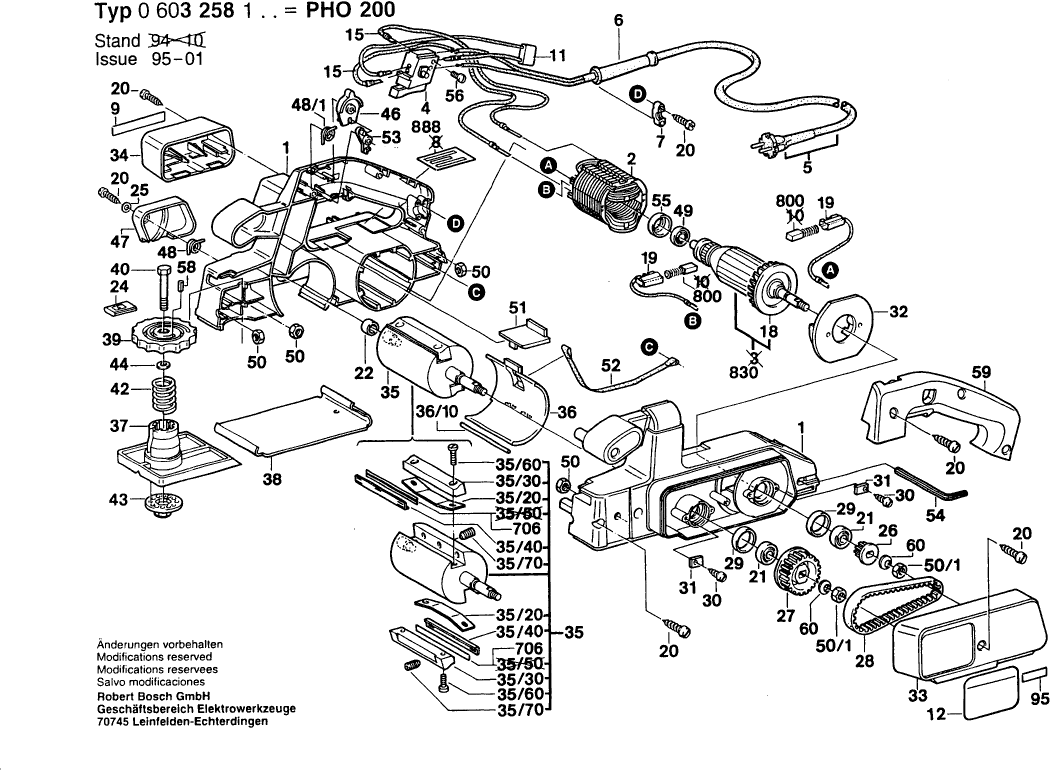

Technical drawing of model Bosch 0603258103 ( PHO200 )

Spare parts list of model Bosch 0603258103 ( PHO200 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No longer available, no replacement
1 2605104214
Field 230-240V
2 2604220447 20.42 24.71
Switch
4 2607200260 8.45 10.22
Switch
4 2607200084 7.58 9.17
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
5 1607000386 15.71 19.01
No longer available, no replacement
6 2600703007
Cable Clip
7 2601035001 1.18 1.43
Manufacturer's nameplate SHADOW SIDE
9 1601110481 1.70 2.06
No longer available, no replacement
11 1607328028
Sticker SUNNY SIDE
12 2601110714 1.94 2.35
Connecting Cable L = 288 MM WHITE
15 2604448062 1.18 1.43
Fan
18 2606610049 1.70 2.06
Brush Holder
19 2604449027 1.18 1.43
Tapping Screw DIN 7971-ST3,9x16-F
20 2910211019 0.83 1.00
No longer available, no replacement
21 2600905052
Needle-Roller Bearing Ø14 MM
22 2600910001 3.31 4.01
Scale Window
24 1601099010 1.18 1.43
Shim 0,5 MM
25 2600100588 1.18 1.43
No longer available, no replacement
26 1606625026
No longer available, no replacement
27 1606625025
No longer available, no replacement
28 1604736004
Rubber Ring
29 1600206025 1.70 2.06
Tapping Screw DIN 7971-ST2,9x9,5-F
30 2910211005 0.83 1.00
Tab Washer
31 1600190016 1.18 1.43
Air-Deflector Ring
32 1600591006 1.94 2.35
No longer available, no replacement
33 1605510140
Covering hood BLACK
34 1605510141 2.24 2.71
No longer available, no replacement
35 2603204900
No longer available, no replacement
35/20 1601234002
No longer available, no replacement
35/30 2608040027
No longer available, no replacement
35/40 2601334006
No longer available, no replacement
35/60 2603410041
No longer available, no replacement
35/70 2912081193
Protective Cover
36 1605510142 6.54 7.91
No longer available, no replacement
36/10 1600410003
No longer available, no replacement
37 1605190031
No longer available, no replacement
38 1608000091
Graduated Dial
39 2606621001 0.83 1.00
Hex Screw
40 3603450005 1.18 1.43
Compression Spring
42 1604619017 1.70 2.06
Adjusting Nut
43 3603342003 0.83 1.00
No longer available, no replacement
44 3600100005
Protective Cover
47 1605510139 1.94 2.35
No longer available, no replacement
48 1604651007
No longer available, no replacement
48/1 1604651007
groove ball bearing 7x19x6
49 2600905086 4.70 5.69
Hex Nut DIN 934-M6-8-A
50 2915011007 0.83 1.00
Hex Nut DIN 934-M6-8-A
50/1 2915011007 0.83 1.00
No longer available, no replacement
51 1601099011
No longer available, no replacement
52 1601006006
Locking Lever
53 1602051001 1.18 1.43
Offset Screwdriver DIN 911, SW3
54 1907950004 4.70 5.69
Intermediate Ring
55 1600502011 1.94 2.35
Socket head cap screw M3x6,5-4.8
56 2603410001 1.18 1.43
Slotted Spring Pin 3x5 DIN 1481
58 2917760073 1.18 1.43
No longer available, no replacement
59 1605500124
Disc Spring DIN 2093-A12,5-GR-1
60 2916160003 0.83 1.00
No information available, not orderable
650 1608132006
No information available, not orderable
700 1608132006
Stop Bracket
700/10 1601331039 3.31 4.01
Wing Screw M 6x16 MM
700/20 2603480003 1.94 2.35
Plain Washer DIN 125-A 6,4-ST
700/30 2916011014 0.83 1.00
O-Ring 4,0x1,5 MM
700/40 1610210043 1.18 1.43
No longer available, no replacement
701 0603095002
Wing Screw M 6x16 MM
701/20 2603480003 1.94 2.35
Manufacturer's nameplate
701/30 1601110005 1.18 1.43
Rubber Ring
701/40 1602380012 0.83 1.00
No longer available, no replacement
701/50 1608000104
No longer available, no replacement
702 1605411022
Fitting
702/10 1605190030 0.83 1.00
No longer available, no replacement
702/20 1605703073
Retaining Bracket
702/30 2608045003 0.83 1.00
No longer available, no replacement
702/40 1605411022
Torx Oval-Head Screw 3x10
702/50 2603490017 1.70 2.06
No longer available, no replacement
703 1607000154
No longer available, no replacement
704 2607001078
O-Ring 4,0x1,5 MM
704/10 1610210043 1.18 1.43
Tubular rivet B 4x0,5x15 DIN 734
704/100 2917190492 0.83 1.00
No longer available, no replacement
704/110 1608000093
Plain Washer DIN 125-A 6,4-ST
704/20 2916011014 0.83 1.00
Wing Screw M 6x16 MM
704/30 2603480003 1.94 2.35
Stop Bracket
704/40 1601332018 2.71 3.28
Round-Head Bolt DIN 603-M6x25
704/50 2910281203 1.94 2.35
Hex Nut
704/60 2610387875 1.94 2.35
Round-Head Bolt M6x15 DIN 603
704/70 2910281196 1.18 1.43
No longer available, no replacement
704/80 1608000092
Plain Washer DIN 125-A4,3-ST
704/90 2916011010 0.83 1.00
No information available, not orderable
706 2607000096
Carbon-Brush Set
800 2604321905 8.45 10.22
Armature 220V
830 1604010236 36.85 44.59
Nameplate
888 160111A3H3 1.94 2.35
