Here you will find all available parts and drawings of the 'Bosch 0603365003 ( PHO16-82 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

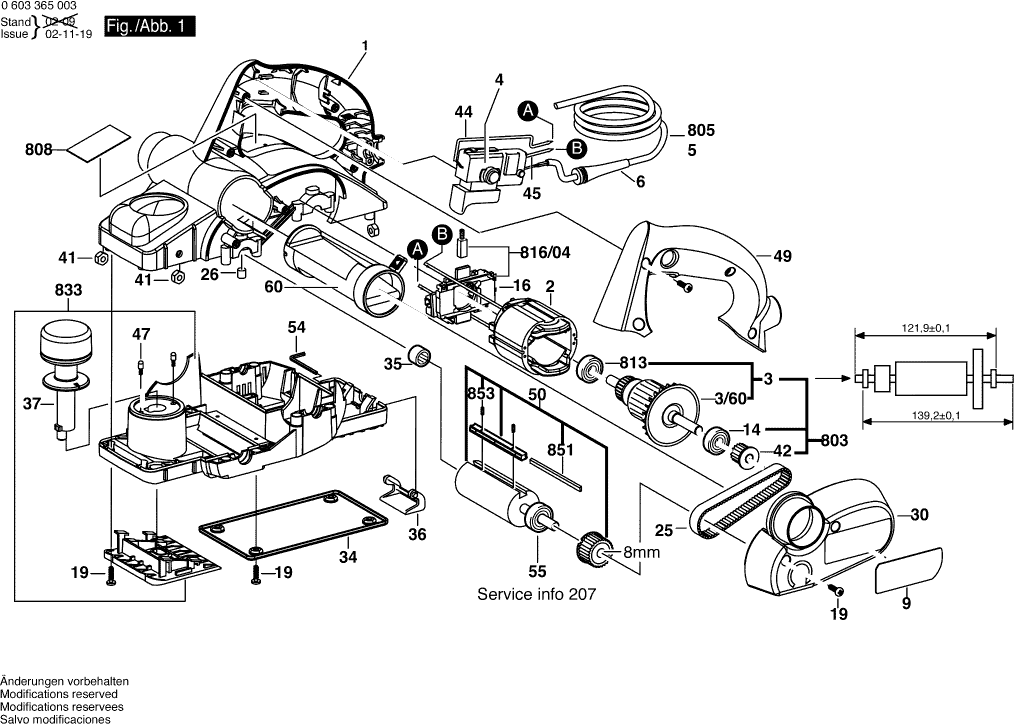

Technical drawing of model Bosch 0603365003 ( PHO16-82 )
Spare parts list of model Bosch 0603365003 ( PHO16-82 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section GREEN | ||||
| 1 | 2605105037 | 20.42 | 24.71 | |
| Field 230V | ||||
| 2 | 2610390992 | 13.93 | 16.86 | |
| Armature 230-240V | ||||
| 3 | 2604011196 | 36.85 | 44.59 | |
| Fan | ||||
| 3/60 | 2606610096 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 4 | 2607200531 | |||
| Grommet Ø6,4-Ø7,2x76 MM | ||||
| 6 | 2600703017 | 1.94 | 2.35 | |
| groove ball bearing 9x24x7 | ||||
| 14 | 1610905011 | 11.88 | 14.37 | |
| Brush Plate | ||||
| 16 | 2604337086 | 8.45 | 10.22 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Toothed Belt | ||||
| 25 | 2604736001 | 7.58 | 9.17 | |
| Damping rubber | ||||
| 26 | 2603100056 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 30 | 2605500149 | |||
| Base Plate | ||||
| 34 | 2608000225 | 5.83 | 7.05 | |
| Needle bearing Ø8xØ12x10 MM | ||||
| 35 | 1610910057 | 2.24 | 2.71 | |
| Knife Guard | ||||
| 36 | 2601329104 | 2.24 | 2.71 | |
| Handle BLACK | ||||
| 37 | 2602026094 | 6.54 | 7.91 | |
| Hex Nut DIN 934-M6-8-A | ||||
| 41 | 2915011007 | 0.83 | 1.00 | |
| Toothed Belt Wheel | ||||
| 42 | 2606625030 | 2.71 | 3.28 | |
| Connecting Cable L = 300 MM WHITE | ||||
| 44 | 2604448221 | 1.94 | 2.35 | |
| Connecting Cable L = 325 MM WHITE | ||||
| 45 | 2604448222 | 1.94 | 2.35 | |
| Ratchet Cap | ||||
| 47 | 2600590006 | 1.18 | 1.43 | |
| Handle Plate GREEN | ||||
| 49 | 2605133029 | 5.83 | 7.05 | |
| Planer Head | ||||
| 50 | 2608584003 | 40.61 | 49.14 | |
| Offset Screwdriver DIN 911 SW2,5 | ||||
| 54 | 1907950003 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 55 | 2600905052 | |||
| Deflector Pipe | ||||
| 60 | 2600409027 | 4.70 | 5.69 | |
| Armature | ||||
| 803 | 2604010990 | 81.47 | 98.58 | |
| Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F | ||||
| 805 | 1607000388 | 9.53 | 11.53 | |
| Marking Plate | ||||
| 808 | 2601117121 | 2.71 | 3.28 | |
| groove ball bearing 7x19x6 | ||||
| 813 | 2600905086 | 4.70 | 5.69 | |
| Carbon-Brush Set | ||||
| 816/04 | 2607014014 | 6.54 | 7.91 | |
| Base Frame | ||||
| 833 | 2608000921 | 26.84 | 32.48 | |
| Planing Knife | ||||
| 851 | 2608635341 | 12.41 | 15.02 | |
| No longer available, no replacement | ||||
| 853 | 2603400016 | |||
