Here you will find all available parts and drawings of the 'Bosch 3603BA4000 (PHO1500)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

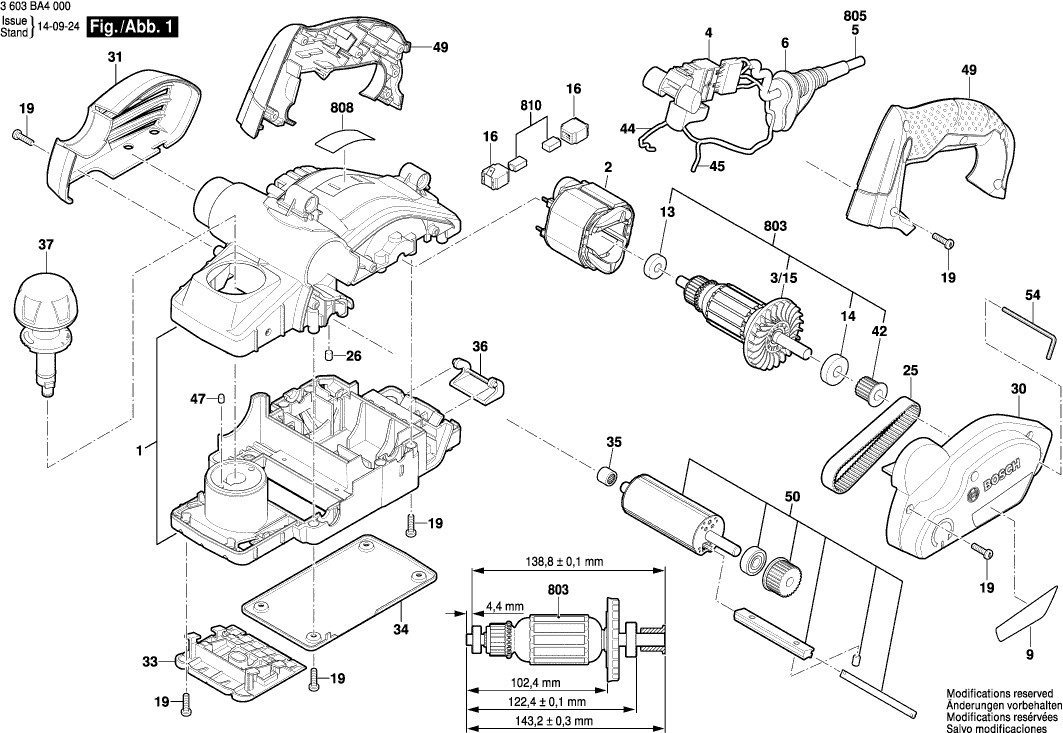

Technical drawing of model Bosch 3603BA4000 (PHO1500)
Spare parts list of model Bosch 3603BA4000 (PHO1500)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing GREEN | ||||
| 1 | 1619P12317 | 21.30 | 25.77 | |
| Field 220-230V | ||||
| 2 | 1619P08350 | 16.79 | 20.32 | |
| Fan | ||||
| 3/15 | 2606610096 | 2.40 | 2.90 | |
| Switch | ||||
| 4 | 1619X08569 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 1619X06341 | 2.08 | 2.52 | |
| Manufacturer's nameplate PHO 1500 | ||||
| 9 | 1619X08494 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 13 | 1619X06535 | 3.44 | 4.16 | |
| groove ball bearing | ||||
| 14 | 1619P12162 | 3.44 | 4.16 | |
| Brush Holder | ||||
| 16 | 1619X02735 | 2.08 | 2.52 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Toothed Belt | ||||
| 25 | 2604736001 | 9.67 | 11.70 | |
| Damping rubber | ||||
| 26 | 2603100056 | 1.49 | 1.80 | |
| Gear Cover BLACK | ||||
| 30 | 1619X08461 | 8.35 | 10.10 | |
| Brush-Cover | ||||
| 31 | 1619X08484 | 7.46 | 9.03 | |
| Adjusting Slide | ||||
| 33 | 1619X08462 | 11.37 | 13.76 | |
| Base Plate | ||||
| 34 | 1619X08463 | 8.35 | 10.10 | |
| Needle bearing | ||||
| 35 | 1610910057 | 2.86 | 3.46 | |
| Knife Guard | ||||
| 36 | 1619X08465 | 2.40 | 2.90 | |
| Cap-Handle BLACK | ||||
| 37 | 1619X08673 | 5.81 | 7.03 | |
| Toothed Belt Wheel | ||||
| 42 | 1619X08472 | 2.86 | 3.46 | |
| Connecting Cable L=300 MM BLUE | ||||
| 44 | 1619X08473 | 2.08 | 2.52 | |
| Lead | ||||
| 45 | 1619X06542 | 1.00 | 1.21 | |
| Ratchet Cap | ||||
| 47 | 1619X08636 | 2.08 | 2.52 | |
| Ratchet Cap | ||||
| 47 | 2600590006 | 1.49 | 1.80 | |
| Set Of Handles GREEN | ||||
| 49 | 1619X08466 | 9.67 | 11.70 | |
| Planer Head | ||||
| 50 | 2608584003 | 47.53 | 57.51 | |
| Offset Screwdriver | ||||
| 54 | 2607950045 | 2.08 | 2.52 | |
| Armature set 220-230V | ||||
| 803 | 1619X09120 | 31.42 | 38.02 | |
| Power supply cord | ||||
| 805 | 1607000388 | 11.37 | 13.76 | |
| Nameplate | ||||
| 808 | 1619P31672 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1619X09122 | 7.46 | 9.03 | |
