Here you will find all available parts and drawings of the 'Bosch 0603258003 (PHO150)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

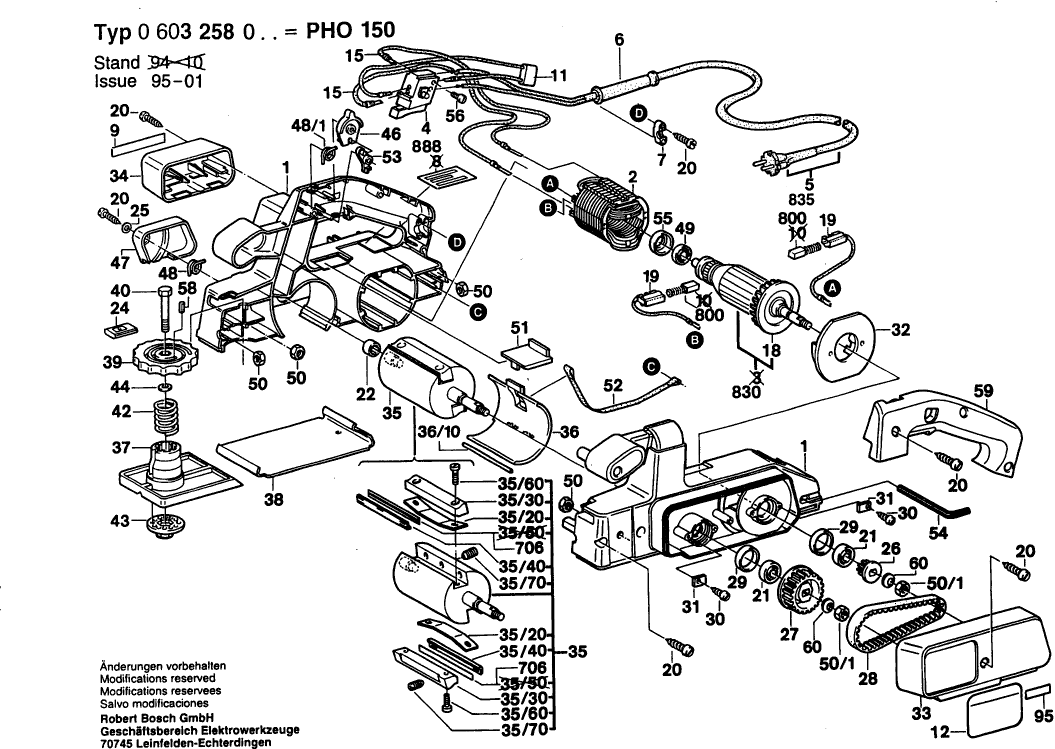

Technical drawing of model Bosch 0603258003 (PHO150)
Spare parts list of model Bosch 0603258003 (PHO150)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 2605104214 | |||
| Field | ||||
| 2 | 1604220194 | 23.90 | 28.92 | |
| Switch | ||||
| 4 | 2607200084 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 1600703016 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 1601110481 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 11 | 1607328028 | |||
| Sticker | ||||
| 12 | 1601110183 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 15 | 1604448004 | |||
| Fan | ||||
| 18 | 2606610049 | 2.08 | 2.52 | |
| Brush Holder | ||||
| 19 | 2604449027 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 20 | 2910211019 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 21 | 2600905052 | |||
| Needle-Roller Bearing | ||||
| 22 | 2600910001 | 4.18 | 5.06 | |
| Scale Window | ||||
| 24 | 1601099010 | 1.49 | 1.80 | |
| Shim | ||||
| 25 | 2600100588 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 26 | 1606625026 | |||
| No longer available, no replacement | ||||
| 27 | 1606625025 | |||
| No longer available, no replacement | ||||
| 28 | 1604736004 | |||
| Intermediate Ring | ||||
| 29 | 1600206024 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 30 | 2910211005 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 31 | 1600190016 | |||
| Air-Deflector Ring | ||||
| 32 | 1600591006 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 33 | 1605510140 | |||
| Covering hood | ||||
| 34 | 1605510141 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 35 | 2603204900 | |||
| No longer available, no replacement | ||||
| 35/20 | 1601234002 | |||
| Pressure Bar | ||||
| 35/30 | 2608040025 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 35/40 | 1601330010 | |||
| Socket head cap screw | ||||
| 35/60 | 2910021125 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 35/70 | 2912081193 | |||
| Protective Cover | ||||
| 36 | 1605510142 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 36/10 | 1600410003 | |||
| No longer available, no replacement | ||||
| 37 | 1605190031 | |||
| No longer available, no replacement | ||||
| 38 | 1608000091 | |||
| Graduated Dial | ||||
| 39 | 1606621003 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 40 | 3603450005 | |||
| Compression Spring | ||||
| 42 | 1604619017 | 2.08 | 2.52 | |
| Adjusting Nut | ||||
| 43 | 3603342003 | 1.00 | 1.21 | |
| Shim | ||||
| 44 | 1600100617 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 47 | 1605510139 | |||
| No longer available, no replacement | ||||
| 48 | 1604651007 | |||
| No longer available, no replacement | ||||
| 48/1 | 1604651007 | |||
| groove ball bearing | ||||
| 49 | 2600905086 | 5.81 | 7.03 | |
| Hex Nut | ||||
| 50 | 2915011007 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 50/1 | 2915011007 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 51 | 1601099011 | |||
| No longer available, no replacement | ||||
| 52 | 1601006006 | |||
| Offset Screwdriver | ||||
| 54 | 1907950004 | 5.81 | 7.03 | |
| Intermediate Ring | ||||
| 55 | 1600502011 | 2.40 | 2.90 | |
| Socket head cap screw | ||||
| 56 | 2603410001 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 58 | 2917760073 | |||
| No longer available, no replacement | ||||
| 59 | 1605500124 | |||
| Spring Washer | ||||
| 60 | 2916060007 | 1.00 | 1.21 | |
| Depth-Gauge | ||||
| 650 | 1608132006 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 651 | 1608132007 | |||
| Depth-Gauge | ||||
| 700 | 1608132006 | 1.00 | 1.21 | |
| Stop Bracket | ||||
| 700/10 | 1601331039 | 4.18 | 5.06 | |
| Wing Screw | ||||
| 700/20 | 2603480003 | 2.40 | 2.90 | |
| Plain Washer | ||||
| 700/30 | 2916011014 | 1.00 | 1.21 | |
| O-Ring | ||||
| 700/40 | 1610210043 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 701 | 0603095002 | |||
| Wing Screw | ||||
| 701/20 | 2603480003 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 701/30 | 1601110005 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 701/40 | 1602380012 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 701/50 | 1608000104 | |||
| No longer available, no replacement | ||||
| 702 | 1605411022 | |||
| Fitting | ||||
| 702/10 | 1605190030 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 702/20 | 1605703073 | |||
| Retaining Bracket | ||||
| 702/30 | 2608045003 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 702/40 | 1605411022 | |||
| Torx Oval-Head Screw | ||||
| 702/50 | 2603490017 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 703 | 1607000154 | |||
| No longer available, no replacement | ||||
| 704 | 1608132007 | |||
| O-Ring | ||||
| 704/10 | 1610210043 | 1.49 | 1.80 | |
| Tubular rivet | ||||
| 704/100 | 2917190492 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 704/110 | 1608000093 | |||
| Plain Washer | ||||
| 704/20 | 2916011014 | 1.00 | 1.21 | |
| Wing Screw | ||||
| 704/30 | 2603480003 | 2.40 | 2.90 | |
| Stop Bracket | ||||
| 704/40 | 1601332018 | 3.44 | 4.16 | |
| Round-Head Bolt | ||||
| 704/50 | 2910281203 | 2.40 | 2.90 | |
| Hex Nut | ||||
| 704/60 | 2610387875 | 2.40 | 2.90 | |
| Round-Head Bolt | ||||
| 704/70 | 2910281196 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 704/80 | 1608000092 | |||
| Plain Washer | ||||
| 704/90 | 2916011010 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 706 | 2607000096 | |||
| No longer available, no replacement | ||||
| 800 | 1607014117 | |||
| Armature | ||||
| 830 | 1604010236 | 43.12 | 52.18 | |
| Power supply cord | ||||
| 835 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
