Here you will find all available parts and drawings of the 'Bosch 0603272003 ( PHO100 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

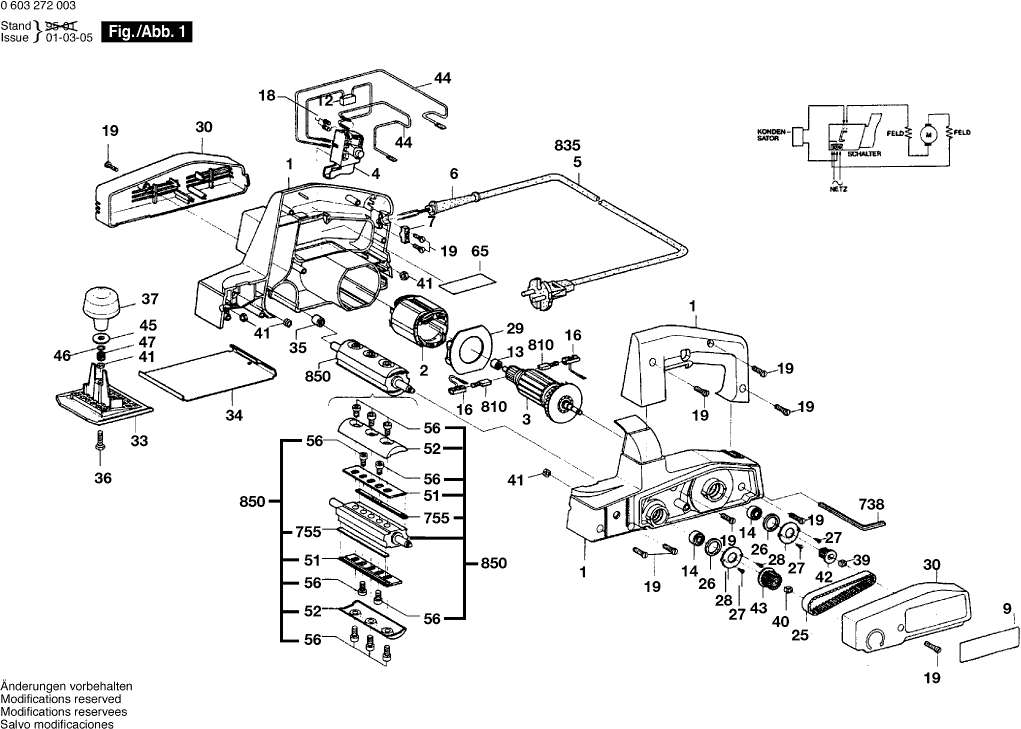

Technical drawing of model Bosch 0603272003 ( PHO100 )
Spare parts list of model Bosch 0603272003 ( PHO100 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section GREEN | ||||
| 1 | 2605104976 | 29.75 | 36.00 | |
| Field 240V | ||||
| 2 | 2604220411 | 18.19 | 22.01 | |
| Armature 220-230V | ||||
| 3 | 2604010648 | 36.85 | 44.59 | |
| No longer available, no replacement | ||||
| 4 | 2607200261 | |||
| No longer available, no replacement | ||||
| 6 | 2600703007 | |||
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Sticker | ||||
| 9 | 2601110643 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 12 | 1607328028 | |||
| No longer available, no replacement | ||||
| 13 | 2600910005 | |||
| No longer available, no replacement | ||||
| 14 | 2600905052 | |||
| Brush Holder | ||||
| 16 | 2604449026 | 1.18 | 1.43 | |
| Socket head cap screw M3x6,5-4.8 | ||||
| 18 | 2603410001 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Toothed Belt | ||||
| 25 | 2604736001 | 7.58 | 9.17 | |
| Rubber Ring | ||||
| 26 | 1600206025 | 1.70 | 2.06 | |
| Tapping Screw DIN 7971-ST2,9x9,5-F | ||||
| 27 | 2910211005 | 0.83 | 1.00 | |
| Tab Washer | ||||
| 28 | 1600190016 | 1.18 | 1.43 | |
| Air-Deflector Ring | ||||
| 29 | 2600290004 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 30 | 2605500163 | |||
| No longer available, no replacement | ||||
| 33 | 2608000012 | |||
| No longer available, no replacement | ||||
| 34 | 1608000091 | |||
| Needle bearing Ø8xØ12x10 MM | ||||
| 35 | 1610910057 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 36 | 2911061209 | |||
| No longer available, no replacement | ||||
| 37 | 2602026041 | |||
| Round Nut M6 LEFTHAND THREADS | ||||
| 39 | 2603342006 | 1.18 | 1.43 | |
| Nut M 8 | ||||
| 40 | 2603342010 | 1.94 | 2.35 | |
| Hex Nut DIN 934-M6-8-A | ||||
| 41 | 2915011007 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 42 | 2606625001 | |||
| Toothed Belt Wheel Z=28 | ||||
| 43 | 2606625002 | 5.33 | 6.45 | |
| Connecting Cable L = 288 MM WHITE | ||||
| 44 | 2604448062 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 45 | 2600100029 | |||
| Plain Washer DIN 125-A 6,4-ST | ||||
| 46 | 2916011014 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 47 | 2604611010 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 51 | 2602316000 | |||
| No longer available, no replacement | ||||
| 52 | 2605510007 | |||
| No longer available, no replacement | ||||
| 56 | 2603414027 | |||
| Offset Screwdriver DIN 911-4 | ||||
| 738 | 2607950004 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 755 | 2607000096 | |||
| No longer available, no replacement | ||||
| 810 | 2604321917 | |||
| Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN- | ||||
| 835 | 1607000386 | 15.71 | 19.01 | |
| No longer available, no replacement | ||||
| 850 | 2608584002 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 1.94 | 2.35 | |
