Here you will find all available parts and drawings of the 'Bosch 0603997989 ( PHO1 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

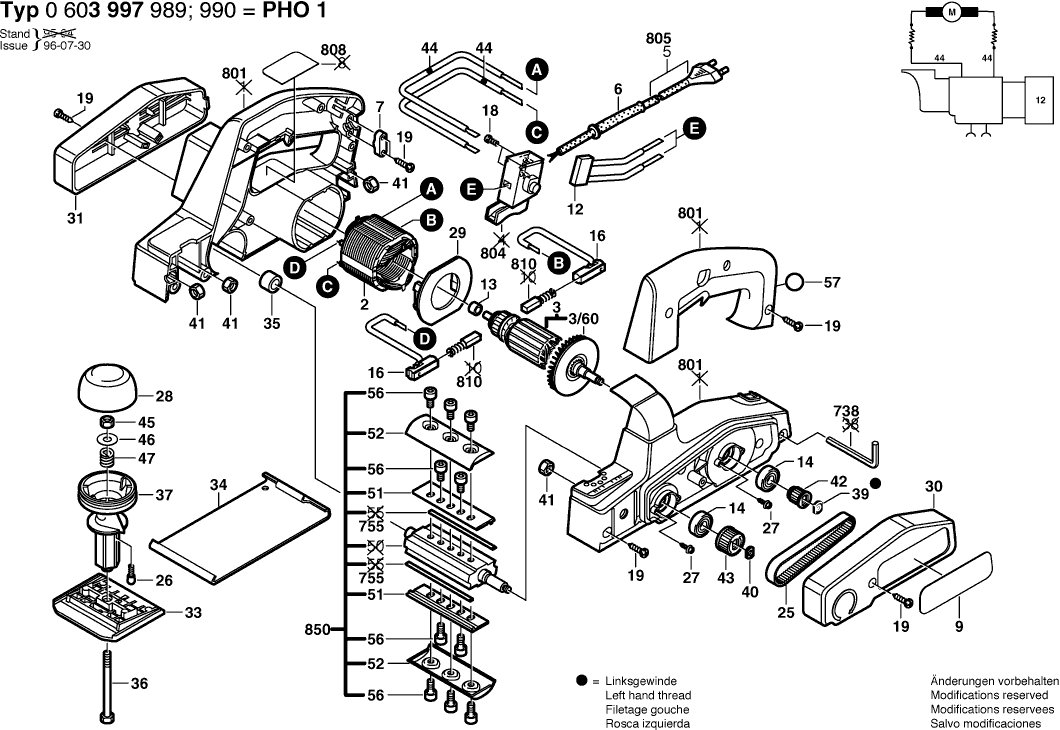

Technical drawing of model Bosch 0603997989 ( PHO1 )
Spare parts list of model Bosch 0603997989 ( PHO1 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 240V | ||||
| 2 | 2604220411 | 18.19 | 22.01 | |
| Armature 220-230V | ||||
| 3 | 2604010648 | 36.85 | 44.59 | |
| Fan | ||||
| 3/60 | 1619P11262 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 6 | 2600703007 | |||
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate | ||||
| 9 | 2601118847 | 18.19 | 22.01 | |
| No longer available, no replacement | ||||
| 12 | 1607328028 | |||
| No longer available, no replacement | ||||
| 13 | 2600910005 | |||
| No longer available, no replacement | ||||
| 14 | 2600905052 | |||
| Brush Holder | ||||
| 16 | 2604449026 | 1.18 | 1.43 | |
| Socket head cap screw M3x6,5-4.8 | ||||
| 18 | 2603410001 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-ST3,9x16-C-H | ||||
| 19 | 2910611019 | 2.24 | 2.71 | |
| Toothed Belt | ||||
| 25 | 2604736001 | 7.58 | 9.17 | |
| Ratchet Cap | ||||
| 26 | 2600590006 | 1.18 | 1.43 | |
| Screw and washer assembly | ||||
| 27 | 2603433000 | 1.18 | 1.43 | |
| Handle | ||||
| 28 | 2602026053 | 1.94 | 2.35 | |
| Air-Deflector Ring | ||||
| 29 | 2600290004 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 30 | 2605500163 | |||
| Covering hood | ||||
| 31 | 2605500078 | 0.83 | 1.00 | |
| Adjusting Slide | ||||
| 33 | 2608000133 | 6.54 | 7.91 | |
| No longer available, no replacement | ||||
| 34 | 1608000091 | |||
| Needle bearing Ø8xØ12x10 MM | ||||
| 35 | 1610910057 | 2.24 | 2.71 | |
| Hex Screw DIN 933-M5x70-8.8 | ||||
| 36 | 2911061180 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 37 | 2602026052 | |||
| Round Nut M6 LEFTHAND THREADS | ||||
| 39 | 2603342006 | 1.18 | 1.43 | |
| Nut M 8 | ||||
| 40 | 2603342010 | 1.94 | 2.35 | |
| Hex Nut DIN 934-M6-8-A | ||||
| 41 | 2915011007 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 42 | 2606625001 | |||
| Toothed Belt Wheel Z=28 | ||||
| 43 | 2606625002 | 5.33 | 6.45 | |
| Connecting Cable L = 288 MM WHITE | ||||
| 44 | 2604448062 | 1.18 | 1.43 | |
| Hex Nut DIN 985-M 5-8-A | ||||
| 45 | 2915061003 | 1.70 | 2.06 | |
| Plain Washer DIN 125-A5,3-A2 | ||||
| 46 | 2918650007 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 47 | 2604611010 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 51 | 2602316000 | |||
| No longer available, no replacement | ||||
| 52 | 2605510007 | |||
| No longer available, no replacement | ||||
| 56 | 2603414027 | |||
| Reference Plate | ||||
| 57 | 2601118306 | 2.24 | 2.71 | |
| Offset Screwdriver DIN 911-4 | ||||
| 738 | 2607950004 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 755 | 2607000096 | |||
| Housing Section GREEN | ||||
| 801 | 2605104866 | 33.45 | 40.47 | |
| On-Off Switch | ||||
| 804 | 1607000231 | 13.93 | 16.86 | |
| Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN- | ||||
| 805 | 1607000386 | 15.71 | 19.01 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 2604321905 | 8.45 | 10.22 | |
| No longer available, no replacement | ||||
| 850 | 2608584002 | |||
