Here you will find all available parts and drawings of the 'Bosch 0603272208 ( PHO1 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

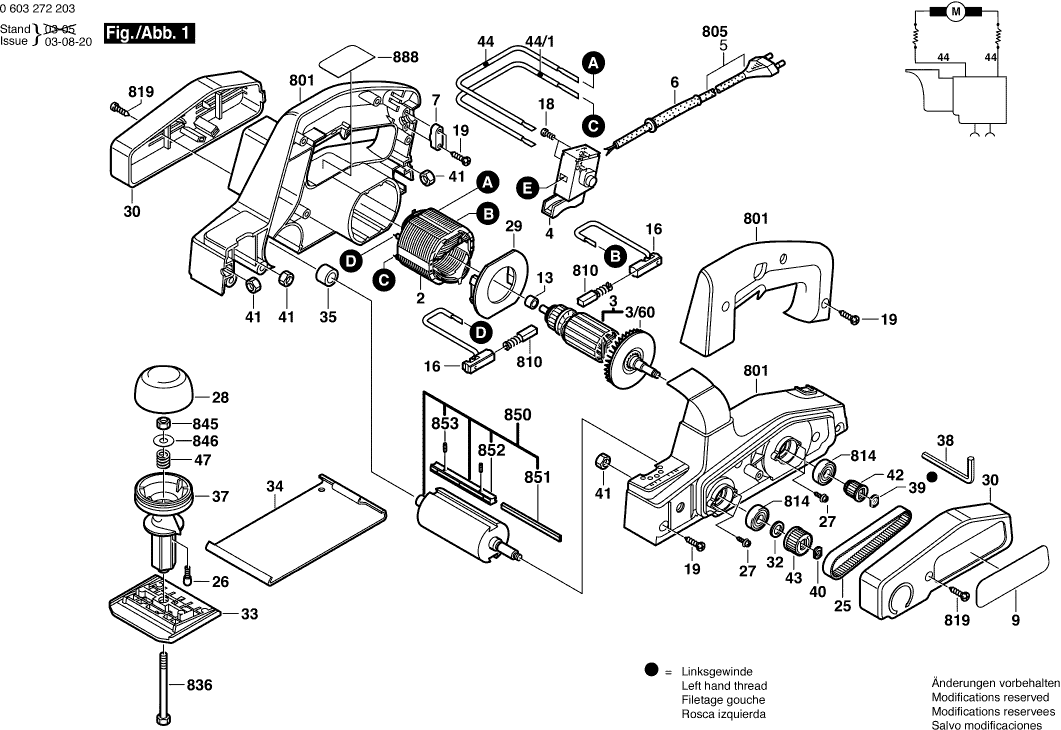

Technical drawing of model Bosch 0603272208 ( PHO1 )
Spare parts list of model Bosch 0603272208 ( PHO1 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 240V | ||||
| 2 | 2604220411 | 18.19 | 22.01 | |
| Armature 220-230V | ||||
| 3 | 2604010648 | 36.85 | 44.59 | |
| Fan | ||||
| 3/60 | 1619P11262 | 2.24 | 2.71 | |
| Switch | ||||
| 4 | 2607200367 | 5.33 | 6.45 | |
| Power supply cord CN 2,65m 2 x 0,75mm H05 W-F | ||||
| 5 | 1607000387 | 8.45 | 10.22 | |
| Grommet Ø8,2 MM | ||||
| 6 | 2600703008 | 0.83 | 1.00 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate | ||||
| 9 | 2609130606 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 13 | 2600910005 | |||
| Brush Holder | ||||
| 16 | 2604449026 | 1.18 | 1.43 | |
| Socket head cap screw M3x6,5-4.8 | ||||
| 18 | 2603410001 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-ST3,9x19-C-H | ||||
| 19 | 2910611020 | 1.18 | 1.43 | |
| Toothed Belt | ||||
| 25 | 2604736001 | 7.58 | 9.17 | |
| Ratchet Cap | ||||
| 26 | 2600590006 | 1.18 | 1.43 | |
| Screw and washer assembly | ||||
| 27 | 2603433000 | 1.18 | 1.43 | |
| Handle | ||||
| 28 | 2602026053 | 1.94 | 2.35 | |
| Air-Deflector Ring | ||||
| 29 | 2600290004 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 30 | 2605500163 | |||
| Shim 0,2 MM | ||||
| 32 | 2600100621 | 1.18 | 1.43 | |
| Adjusting Slide | ||||
| 33 | 2608000133 | 6.54 | 7.91 | |
| No longer available, no replacement | ||||
| 34 | 1608000091 | |||
| Needle bearing Ø8xØ12x10 MM | ||||
| 35 | 1610910057 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 37 | 2602026052 | |||
| Hexagon-Socket Key | ||||
| 38 | 2609110279 | 1.70 | 2.06 | |
| Round Nut M6 LEFTHAND THREADS | ||||
| 39 | 2603342006 | 1.18 | 1.43 | |
| Nut M 8 | ||||
| 40 | 2603342010 | 1.94 | 2.35 | |
| Hex Nut DIN 934-M6-8-A | ||||
| 41 | 2915011007 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 42 | 2606625001 | |||
| Toothed Belt Wheel Z=28 | ||||
| 43 | 2606625002 | 5.33 | 6.45 | |
| Connecting Cable L = 288 MM WHITE | ||||
| 44 | 2604448062 | 1.18 | 1.43 | |
| Cable L = 238 MM WHITE | ||||
| 44/1 | 2604448160 | 1.70 | 2.06 | |
| Compression Spring | ||||
| 47 | 2604611010 | 1.70 | 2.06 | |
| Housing Section GREEN | ||||
| 801 | 2605104866 | 33.45 | 40.47 | |
| Carbon-Brush Set | ||||
| 810 | 2604321905 | 8.45 | 10.22 | |
| No longer available, no replacement | ||||
| 814 | 2600905052 | |||
| Screw 4x16 | ||||
| 819 | 2603490022 | 0.83 | 1.00 | |
| Hex Screw DIN 933-M5x70-8.8 | ||||
| 836 | 2911061180 | 0.83 | 1.00 | |
| Hex Nut DIN 985-M 5-8-A | ||||
| 845 | 2915061003 | 1.70 | 2.06 | |
| Plain Washer DIN 125-A5,3-A2 | ||||
| 846 | 2918650007 | 1.18 | 1.43 | |
| Planer Head | ||||
| 850 | 2609110258 | 44.82 | 54.23 | |
| Planing Knife | ||||
| 851 | 2608635341 | 12.41 | 15.02 | |
| Gripping Wedge | ||||
| 852 | 2603111001 | 10.73 | 12.98 | |
| No longer available, no replacement | ||||
| 853 | 2603400016 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 1.94 | 2.35 | |
