Here you will find all available parts and drawings of the 'Bosch 0603268703 ( PHG600-E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

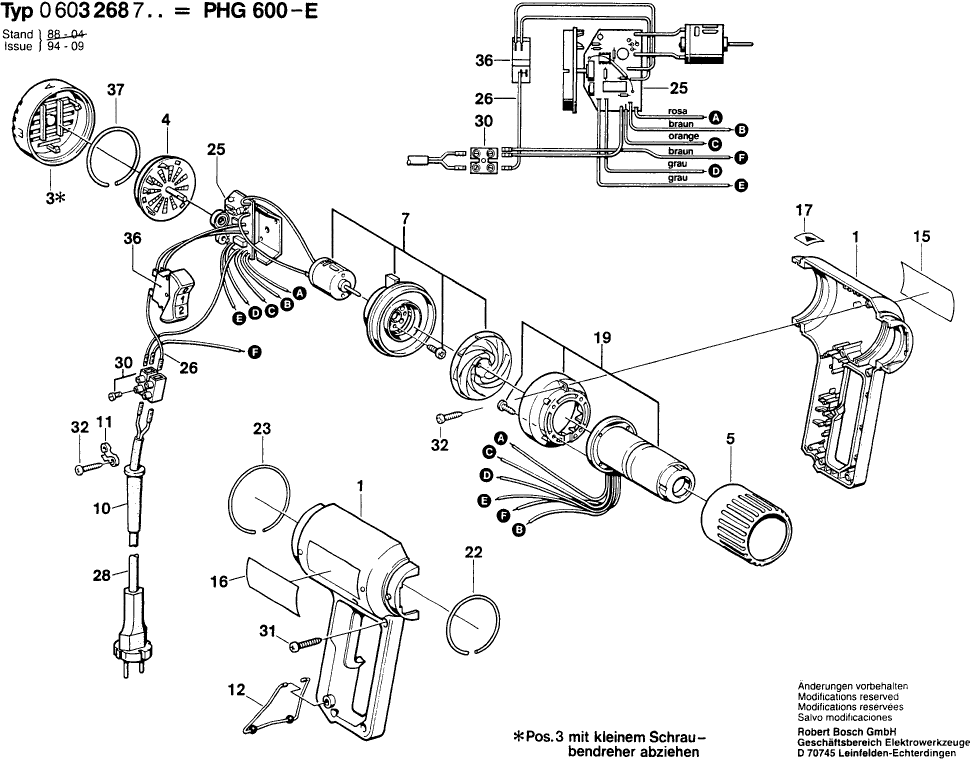

Technical drawing of model Bosch 0603268703 ( PHG600-E )
Spare parts list of model Bosch 0603268703 ( PHG600-E )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing GREEN | ||||
| 1 | 1609201481 | 18.19 | 22.01 | |
| Sealing cap | ||||
| 3 | 1609201571 | 7.58 | 9.17 | |
| Slotted Disc | ||||
| 4 | 1609201483 | 5.33 | 6.45 | |
| Protective Tube | ||||
| 5 | 1609201484 | 7.58 | 9.17 | |
| DC motor 115-240V | ||||
| 7 | 1609201572 | 12.41 | 15.02 | |
| Grommet | ||||
| 10 | 1609202793 | 1.94 | 2.35 | |
| Fastening Clamp | ||||
| 11 | 1609201487 | 1.18 | 1.43 | |
| Transport Bracket | ||||
| 12 | 1609202794 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 13 | 1609201489 | |||
| Manufacturer's nameplate | ||||
| 15 | 1601110367 | 0.83 | 1.00 | |
| Nameplate | ||||
| 16 | 1601110368 | 0.83 | 1.00 | |
| Sticker RED | ||||
| 17 | 1601110369 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 19 | 1609201573 | |||
| Retaining ring CA.Ø2,3xØ47 MM | ||||
| 22 | 1609201490 | 1.70 | 2.06 | |
| Retaining Ring CA.Ø2,5xØ62 MM | ||||
| 23 | 1609201491 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 25 | 1609201574 | |||
| Connecting Cable | ||||
| 26 | 1609201492 | 2.24 | 2.71 | |
| Power supply cord | ||||
| 28 | 1609201493 | 8.45 | 10.22 | |
| connecting terminal 2-POLE | ||||
| 30 | 1609390042 | 1.18 | 1.43 | |
| Tapping Screw DIN 7983-B2,9x16 | ||||
| 31 | 2910615507 | 1.70 | 2.06 | |
| Tapping Screw DIN 7981-ST 2,9x13-F-H | ||||
| 32 | 2910614406 | 0.83 | 1.00 | |
| On-Off Switch | ||||
| 36 | 1609201500 | 8.45 | 10.22 | |
| Clamping Ring Ø1,5xØ47 MM | ||||
| 37 | 1609201723 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 702 | 1609390451 | |||
| No information available, not orderable | ||||
| 703 | 1609390452 | |||
| No information available, not orderable | ||||
| 704 | 1609390453 | |||
| No information available, not orderable | ||||
| 705 | 1609201648 | |||
| No information available, not orderable | ||||
| 708 | 1609201751 | |||
| No longer available, no replacement | ||||
| 709 | 1609201752 | |||
| No longer available, no replacement | ||||
| 715 | 1609390450 | |||
| Blade | ||||
| 715/10 | 1609201745 | 8.45 | 10.22 | |
| Blade | ||||
| 715/20 | 1609201746 | 8.45 | 10.22 | |
| Plain Washer 8,4 DIN 433-ST | ||||
| 715/30 | 2916011015 | 0.83 | 1.00 | |
| Hex Nut DIN 934-M8-8-A | ||||
| 715/40 | 2915011009 | 1.94 | 2.35 | |
