Here you will find all available parts and drawings of the 'Bosch 060329B008 ( PHG600-3 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

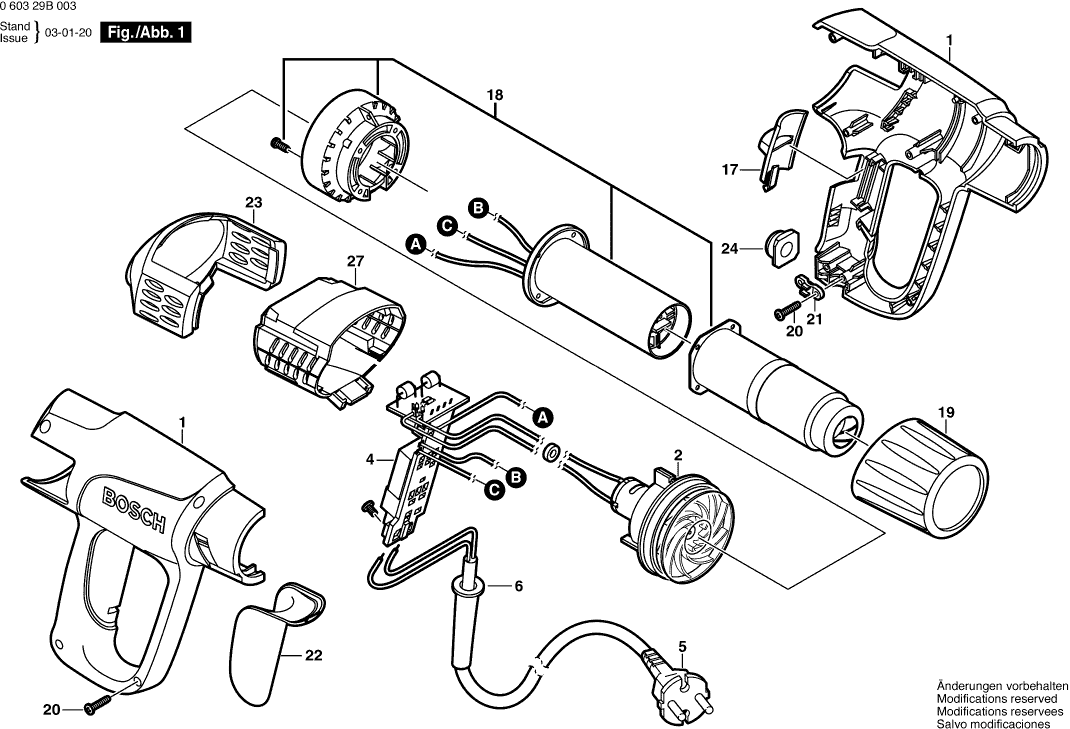

Technical drawing of model Bosch 060329B008 ( PHG600-3 )
Spare parts list of model Bosch 060329B008 ( PHG600-3 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 1609203H58 | 26.84 | 32.48 | |
| DC motor 115-240V | ||||
| 2 | 1609202617 | 11.88 | 14.37 | |
| Connecting Block 220-230V | ||||
| 4 | 1609203H59 | 20.42 | 24.71 | |
| Power supply cord | ||||
| 5 | 1609202797 | 18.19 | 22.01 | |
| Grommet | ||||
| 6 | 1609202606 | 1.94 | 2.35 | |
| Switch Button | ||||
| 17 | 1609203H54 | 5.33 | 6.45 | |
| Heating Element 220-230V | ||||
| 18 | 1609203H60 | 36.85 | 44.59 | |
| Protective Tube | ||||
| 19 | 1609203H61 | 8.45 | 10.22 | |
| Tapping Screw DIN 7981-ST2,9x16-F-H | ||||
| 20 | 2910615407 | 0.83 | 1.00 | |
| Fastening Clamp | ||||
| 21 | 1609203102 | 1.18 | 1.43 | |
| Cap-Handle | ||||
| 22 | 1609203H62 | 13.93 | 16.86 | |
| Cover | ||||
| 23 | 1609203H63 | 4.10 | 4.96 | |
| Rubber Base | ||||
| 24 | 1609203H65 | 1.18 | 1.43 | |
| Plug-In Housing | ||||
| 27 | 1609203L50 | 9.53 | 11.53 | |
