Here you will find all available parts and drawings of the 'Bosch 0603290008 ( PHG530-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

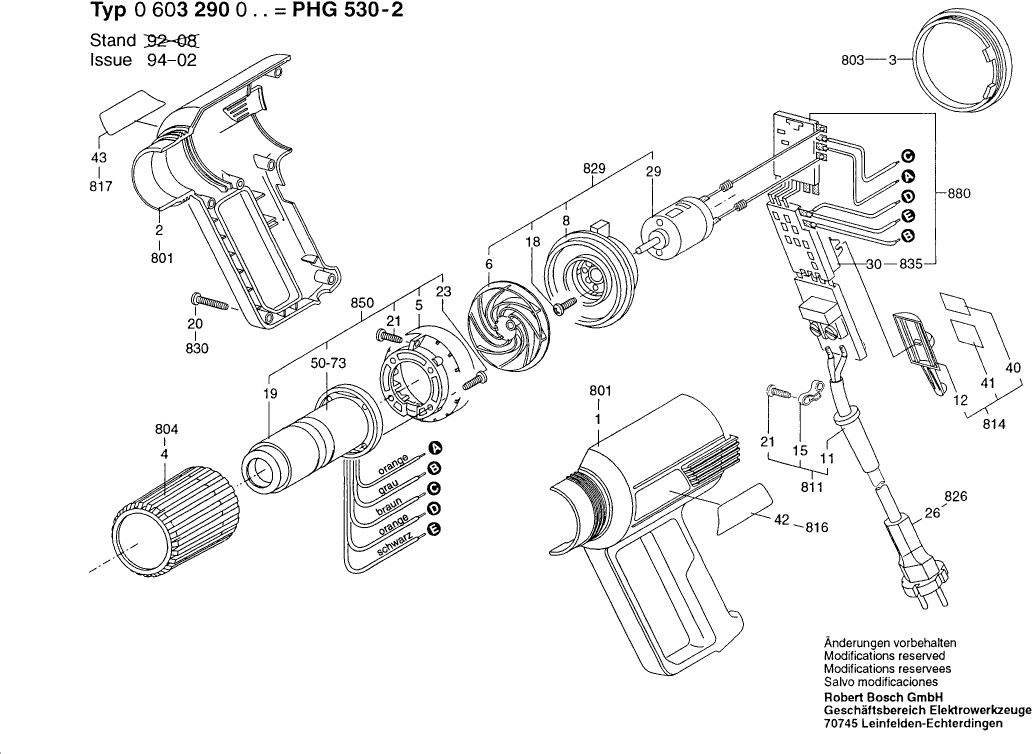

Technical drawing of model Bosch 0603290008 ( PHG530-2 )
Spare parts list of model Bosch 0603290008 ( PHG530-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 753 | 2605438391 | |||
| Housing Section GREEN | ||||
| 801 | 1609202615 | 23.75 | 28.74 | |
| Aperture Wheel | ||||
| 803 | 1609202616 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 804 | 1609202604 | |||
| Grommet | ||||
| 811 | 1609202606 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 814 | 1609202607 | |||
| Manufacturer's nameplate | ||||
| 816 | 1601118060 | 0.83 | 1.00 | |
| Nameplate | ||||
| 817 | 1601118E55 | 0.83 | 1.00 | |
| Power supply cord | ||||
| 826 | 1609203103 | 29.75 | 36.00 | |
| DC motor 115-240V | ||||
| 829 | 1609202617 | 11.88 | 14.37 | |
| Tapping Screw DIN 7981-ST2,9x16-F-H | ||||
| 830 | 2910615407 | 0.83 | 1.00 | |
| On-Off Switch | ||||
| 835 | 1609202612 | 11.88 | 14.37 | |
| Cylindrical Heating Elem 230V | ||||
| 850 | 1609202618 | 49.56 | 59.97 | |
| Connecting Block 230-240V | ||||
| 880 | 1609202686 | 18.19 | 22.01 | |
