Here you will find all available parts and drawings of the 'Bosch 0603290103 ( PHG500-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

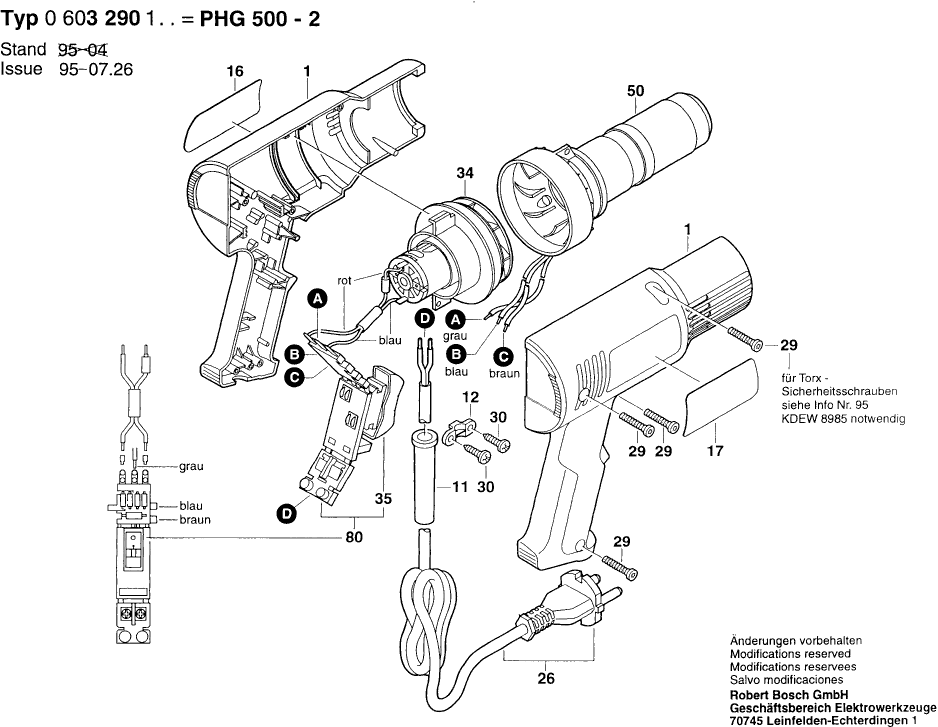

Technical drawing of model Bosch 0603290103 ( PHG500-2 )
Spare parts list of model Bosch 0603290103 ( PHG500-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section GREEN | ||||
| 1 | 1609203485 | 13.93 | 16.86 | |
| Grommet | ||||
| 11 | 1609202793 | 1.94 | 2.35 | |
| Fastening Clamp | ||||
| 12 | 1609203102 | 1.18 | 1.43 | |
| Manufacturer's nameplate | ||||
| 16 | 1601118523 | 1.94 | 2.35 | |
| Nameplate | ||||
| 17 | 1601118524 | 1.94 | 2.35 | |
| Power supply cord | ||||
| 26 | 1609202797 | 18.19 | 22.01 | |
| Tapping Screw BZ 2,9x16, SW I-TORX T10 | ||||
| 29 | 1609203349 | 2.24 | 2.71 | |
| Tapping Screw DIN 7981-ST 2,9x13-F-H | ||||
| 30 | 2910614406 | 0.83 | 1.00 | |
| DC motor 115-240V | ||||
| 34 | 1609201572 | 12.41 | 15.02 | |
| No longer available, no replacement | ||||
| 35 | 1609202799 | |||
| Cylindrical Heating Elem | ||||
| 50 | 1609203486 | 36.85 | 44.59 | |
| Connecting Block 100-240V | ||||
| 80 | 1609203487 | 13.93 | 16.86 | |
| No information available, not orderable | ||||
| 753 | 2605438391 | |||
