Here you will find all available parts and drawings of the 'Bosch 0603363703 ( PFZ600E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

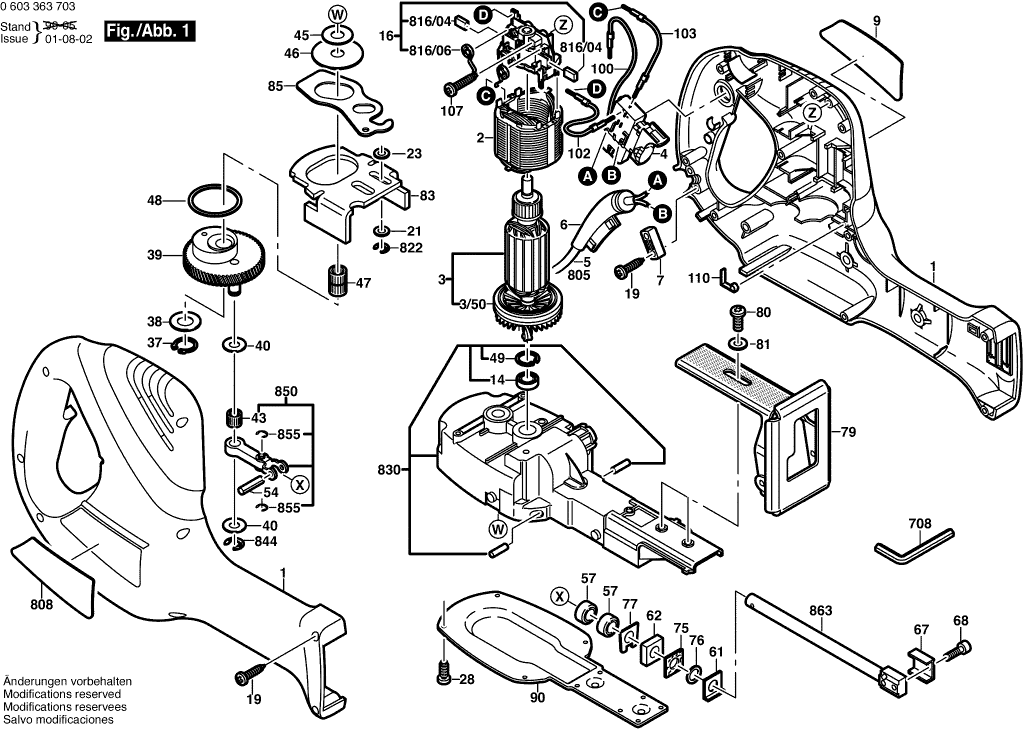

Technical drawing of model Bosch 0603363703 ( PFZ600E )

Spare parts list of model Bosch 0603363703 ( PFZ600E )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing Section GREEN
1 2605104604 23.75 28.74
Field 230V
2 2604220647 15.71 19.01
Armature 230-240V
3 2604011219 49.56 59.97
Fan
3/50 2606610093 2.24 2.71
No longer available, no replacement
4 2607200579
Grommet Ø6,4-Ø7,2x76 MM
6 2600703017 1.94 2.35
Cable Clip
7 2601035001 1.18 1.43
Sticker
9 2601117193 2.71 3.28
Ball Bearing 9x24x7
14 2600905095 9.53 11.53
Brush Plate
16 2605807082 23.75 28.74
Screw 4x16
19 2603490022 0.83 1.00
Shim
21 2600100103 0.83 1.00
Shim
23 2600100525 0.83 1.00
Thread-forming tap. Screw M4x12 MM
28 2603410049 1.18 1.43
Spring retaining ring DIN 471-12x1-FSTM
37 2916650903 1.18 1.43
Shim
38 2600105001 0.83 1.00
Eccentric Cog Wheel
39 2606320062 33.45 40.47
Shim 0,5 MM
40 2600100623 1.18 1.43
Needle bearing Ø8xØ12x10 MM
43 1610910057 2.24 2.71
Shim washer
45 2600105109 2.24 2.71
Shim
46 2600105013 1.70 2.06
Needle-Roller Assembly
47 2600913008 5.33 6.45
Shim
48 2600105004 1.70 2.06
Spring retaining ring DIN 472-24x1,2 MM
49 2916660008 1.70 2.06
Pivot Pin
54 2603105065 1.18 1.43
Sintered-Metal Bushing
57 2600302022 1.94 2.35
Sealing disk
61 2601334011 0.83 1.00
Felt Disc
62 2600108078 0.83 1.00
No longer available, no replacement
67 2601321012
Hex Socket Head Cap Screw DIN 912-M5x12-12.9
68 2910405154 0.83 1.00
Rubber Gasket 1 MM
75 2601015082 1.18 1.43
Scraper
76 2600101038 0.83 1.00
Guiding Plate
77 2601334012 0.83 1.00
No longer available, no replacement
79 2608000239
Oval-Head Screw M 5x10
80 2603414007 0.83 1.00
Plain Washer
81 3600100002 0.83 1.00
Counterweight
83 2608012009 7.58 9.17
Fork Lever
85 2601923011 4.10 4.96
Gear Cover
90 2605500142 2.71 3.28
Earth Conductor
100 2604448217 1.94 2.35
Connecting Cable L=220 MM WHITE
102 2604448127 0.83 1.00
Connecting Cable
103 2604448220 1.94 2.35
Torx Oval-Head Screw 4x25
107 2603490024 1.18 1.43
Contact Spring
110 2601329057 1.94 2.35
Offset Screwdriver DIN 911-4
708 2607950004 1.18 1.43
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
805 1607000386 15.71 19.01
Marking Plate
808 2601117194 2.71 3.28
No longer available, no replacement
816/04 2604320914
Spiral Spring
816/06 1604652013 1.18 1.43
Locking Washer DIN 6799-6-FST
822 2916080909 0.83 1.00
Gear Housing
830 2605806897 49.56 59.97
Locking Washer DIN 6799-7-FSt
844 2916080910 1.70 2.06
Connecting Rod
850 2602130903 20.42 24.71
Locking Washer DIN 6799-4-FSt
855 2916080007 1.94 2.35
No longer available, no replacement
863 2600780910
