Here you will find all available parts and drawings of the 'Bosch 0603997757 ( PFZ550PE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

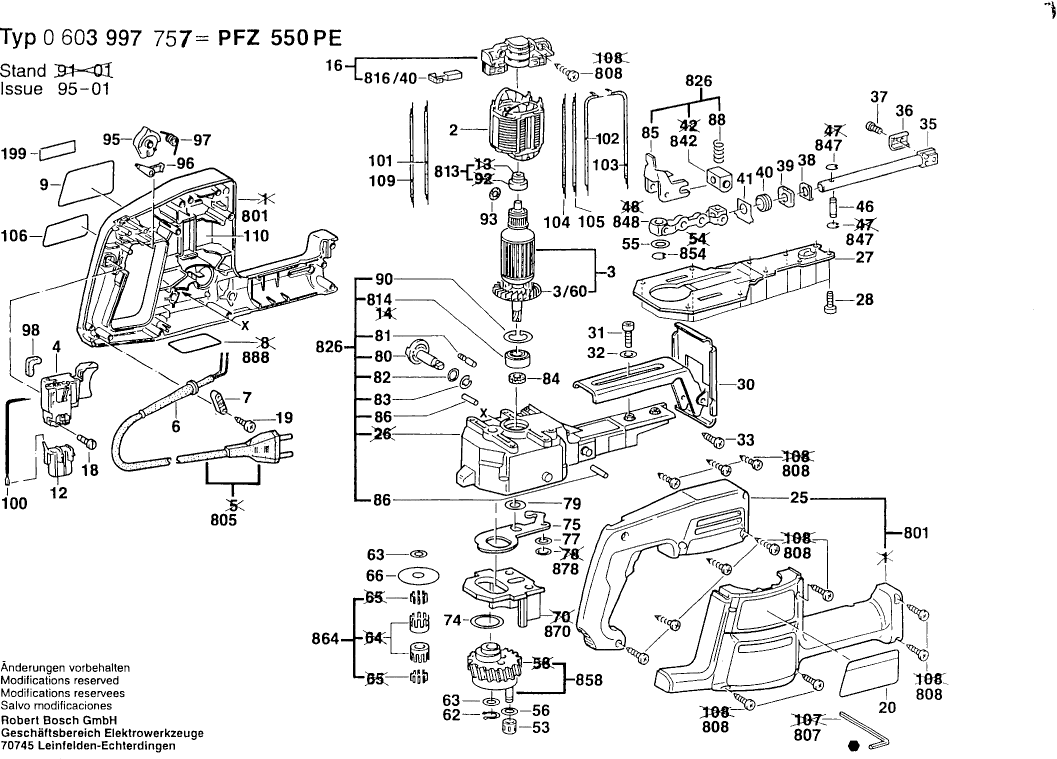

Technical drawing of model Bosch 0603997757 ( PFZ550PE )

Spare parts list of model Bosch 0603997757 ( PFZ550PE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field 230-240V
2 2604220447 20.42 24.71
Armature 220V
3 2604010715 36.85 44.59
Fan
3/60 2606610049 1.70 2.06
No longer available, no replacement
4 2607200218
Grommet Ø6,5-Ø6,9x95 MM
6 2600703012 2.24 2.71
Cable Clip
7 2601035001 1.18 1.43
Sticker SUNNY SIDE
9 2601110709 1.18 1.43
No longer available, no replacement
12 2607329114
No longer available, no replacement
16 2609992612
Socket head cap screw M3x6,5-4.8
18 2603410001 1.18 1.43
Tapping Screw DIN 7981-ST3,9x16-C-H
19 2910611019 2.24 2.71
Sticker SHADOW SIDE
20 2601110710 1.18 1.43
Housing Cover GREEN
25 2605500099 7.58 9.17
Gear Cover
27 2605500100 3.31 4.01
Thread-forming tap. Screw M4x8
28 2603410048 1.18 1.43
No longer available, no replacement
30 2608000074
No longer available, no replacement
31 2910141152
Plain Washer
32 3600100002 0.83 1.00
No longer available, no replacement
33 2910601318
No longer available, no replacement
35 2600780017
No longer available, no replacement
36 2601321012
Hex Socket Head Cap Screw DIN 912-M5x12-12.9
37 2910405154 0.83 1.00
Sealing disk
38 2601334002 1.18 1.43
Felt Washer
39 2600108006 0.83 1.00
Sintered-Metal Bushing
40 2600302004 2.24 2.71
Guiding Plate
41 2601334009 1.18 1.43
Pivot Pin
46 2603105038 2.71 3.28
Needle-Roller Assembly
53 2600913003 1.70 2.06
No longer available, no replacement
55 2600100647
Shim 0,5 MM
56 2600100039 1.18 1.43
Spring retaining ring DIN 471-10x1MM-FSt
62 2916650001 1.94 2.35
Shim 17 x 0,5
63 2600101674 1.18 1.43
Shim 17 x 0,2
63 2600101675 1.18 1.43
Shim washer
66 2600200027 1.18 1.43
Spacer Ring
74 2600200028 1.18 1.43
Fork Lever
75 2601923006 4.10 4.96
Shim
77 2600100040 1.18 1.43
Shim
79 2600100047 1.18 1.43
Change-Over Switch
80 2602026044 7.58 9.17
Ratchet Cap
81 2600590006 1.18 1.43
Shim 0,2 MM
82 2600100050 1.18 1.43
Shim 0,5 MM THICK
82 3600100013 1.18 1.43
Spring retaining ring DIN 471 9x1MM
83 2916640006 1.18 1.43
Reverse-Transfer Lever
85 2601321016 5.83 7.05
Bearing bolt
86 2603100048 1.18 1.43
Compression Spring
88 2604617002 1.18 1.43
Spring retaining ring DIN 472-24x1,2 MM
90 2916660008 1.70 2.06
O-Ring 5,0x1,75 MM
93 2600210036 1.18 1.43
Rotary Head
95 2602026045 1.70 2.06
Locking Lever
96 2602051000 1.18 1.43
No longer available, no replacement
97 1604651007
No longer available, no replacement
98 2601022000
Earth Conductor Ø0,35 MM WHITE
100 2604448010 1.70 2.06
Connecting Cable L = 278 MM BLUE
101 2604448012 1.18 1.43
Connecting Cable L=180MM BLUE
102 2604448113 1.18 1.43
Connecting Cable L=243 MM WHITE
103 2604448033 1.18 1.43
Connecting Cable L=162MM WHITE
104 2604448122 1.18 1.43
Connecting Cable L=263MM BLUE
105 2604448119 1.18 1.43
Sticker
106 2601110740 1.18 1.43
Cable L=233 MM WHITE
109 1614431010 2.71 3.28
Contact Spring
110 2601329057 1.94 2.35
Housing Section GREEN
801 2605104897 36.85 44.59
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
805 1607000386 15.71 19.01
Offset Screwdriver DIN 911-4
807 2607950004 1.18 1.43
Tapping Screw DIN 7981-3,9x19-C-Z-ST
808 2912401020 0.83 1.00
No longer available, no replacement
813 2600917902
groove ball bearing 9x24x7
814 2600905039 9.53 11.53
No longer available, no replacement
816/40 2607014009
Ratchet Cap
816/60 2601322013 1.18 1.43
Ratchet Cap
816/60 2601322017 1.18 1.43
Gear Housing
826 2605806989 91.56 110.79
Bearing Holder
842 2602130901 18.19 22.01
Locking Washer DIN 6799-4-FSt
847 2916080007 1.94 2.35
No longer available, no replacement
848 2602130900
Locking Washer DIN 6799-7-FSt
854 2916080910 1.70 2.06
Eccentric Cog Wheel Z=45
858 2606320043 36.85 44.59
Needle-Roller Cage
864 2607001130 4.70 5.69
Counterweight
870 2608012002 13.93 16.86
No longer available, no replacement
878 2916080008
Nameplate
888 160111A3H3 1.94 2.35
