Here you will find all available parts and drawings of the 'Bosch 0603281703 (PFZ550PE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

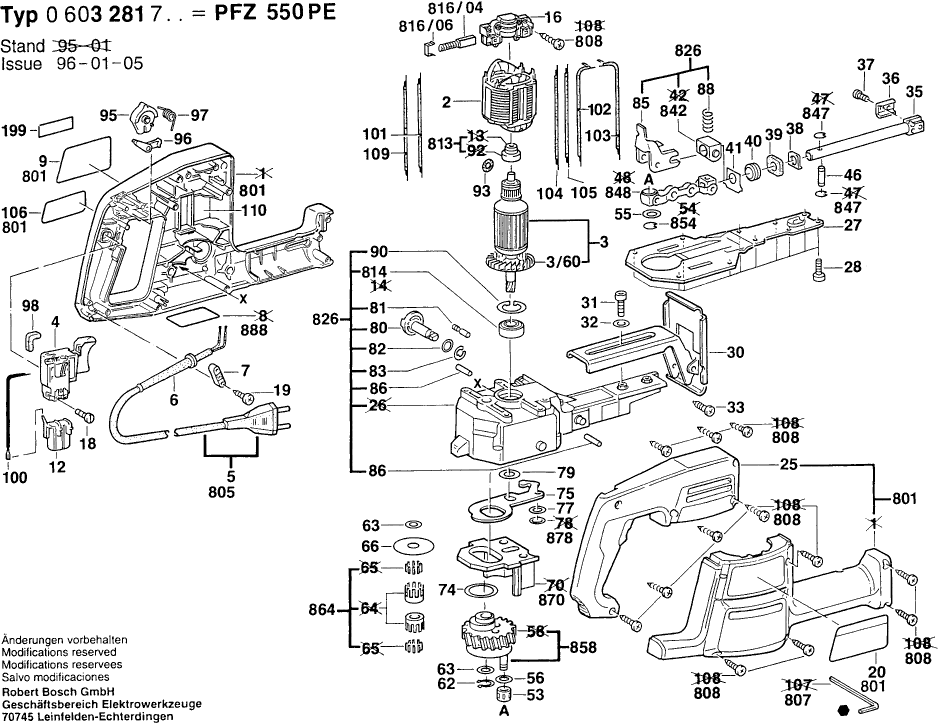

Technical drawing of model Bosch 0603281703 (PFZ550PE)
Spare parts list of model Bosch 0603281703 (PFZ550PE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 2 | 2604220447 | |||
| No longer available, no replacement | ||||
| 3 | 2604010715 | |||
| Fan | ||||
| 3/60 | 2606610049 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 4 | 2607200218 | |||
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 9 | 2601110709 | |||
| No longer available, no replacement | ||||
| 12 | 2607329114 | |||
| No longer available, no replacement | ||||
| 16 | 2609992612 | |||
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 20 | 2601110710 | |||
| No information available, not orderable | ||||
| 25 | 2605500099 | |||
| No information available, not orderable | ||||
| 27 | 2605500100 | |||
| Thread-forming tap. Screw | ||||
| 28 | 2603410048 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 30 | 2608000074 | |||
| No longer available, no replacement | ||||
| 31 | 2910141152 | |||
| No information available, not orderable | ||||
| 32 | 3600100002 | |||
| No longer available, no replacement | ||||
| 33 | 2910601318 | |||
| No longer available, no replacement | ||||
| 35 | 2600780017 | |||
| No longer available, no replacement | ||||
| 36 | 2601321012 | |||
| Hex Socket Head Cap Screw | ||||
| 37 | 2910405154 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 38 | 2601334002 | |||
| Felt Washer | ||||
| 39 | 2600108006 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 40 | 2600302004 | |||
| No information available, not orderable | ||||
| 41 | 2601334009 | |||
| No information available, not orderable | ||||
| 46 | 2603105038 | |||
| No information available, not orderable | ||||
| 53 | 2600913003 | |||
| No longer available, no replacement | ||||
| 55 | 2600100647 | |||
| No information available, not orderable | ||||
| 56 | 2600100039 | |||
| Spring retaining ring | ||||
| 62 | 2916650001 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 63 | 2600101675 | |||
| No information available, not orderable | ||||
| 66 | 2600200027 | |||
| No information available, not orderable | ||||
| 74 | 2600200028 | |||
| No information available, not orderable | ||||
| 75 | 2601923006 | |||
| Shim | ||||
| 77 | 2600100040 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 79 | 2600100047 | |||
| No information available, not orderable | ||||
| 80 | 2602026044 | |||
| Ratchet Cap | ||||
| 81 | 2600590006 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 82 | 3600100013 | |||
| Spring retaining ring | ||||
| 83 | 2916640006 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 85 | 2601321016 | |||
| Bearing bolt | ||||
| 86 | 2603100048 | 1.24 | 1.50 | |
| No information available, not orderable | ||||
| 88 | 2604617002 | |||
| Spring retaining ring | ||||
| 90 | 2916660008 | 2.08 | 2.52 | |
| O-Ring | ||||
| 93 | 1900210000 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 95 | 2602026045 | |||
| No longer available, no replacement | ||||
| 96 | 2602051000 | |||
| No longer available, no replacement | ||||
| 97 | 1604651007 | |||
| No longer available, no replacement | ||||
| 98 | 2601022000 | |||
| No information available, not orderable | ||||
| 100 | 2604448010 | |||
| No information available, not orderable | ||||
| 101 | 2604448012 | |||
| Connecting Cable | ||||
| 102 | 2604448113 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 103 | 2604448033 | |||
| No information available, not orderable | ||||
| 104 | 2604448122 | |||
| No information available, not orderable | ||||
| 105 | 2604448119 | |||
| No information available, not orderable | ||||
| 106 | 2601110740 | |||
| Cable | ||||
| 109 | 1614431010 | 3.44 | 4.16 | |
| Contact Spring | ||||
| 110 | 2601329057 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 199 | 1601110265 | |||
| No information available, not orderable | ||||
| 700 | 0603095003 | |||
| No information available, not orderable | ||||
| 801 | 2605104897 | |||
| No longer available, no replacement | ||||
| 805 | 1607000389 | |||
| Offset Screwdriver | ||||
| 807 | 2607950004 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 808 | 2910611020 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 813 | 2600917902 | |||
| groove ball bearing | ||||
| 814 | 2600905039 | 11.37 | 13.76 | |
| No longer available, no replacement | ||||
| 816/04 | 2607014009 | |||
| Ratchet Cap | ||||
| 816/06 | 2601322013 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 826 | 2605806989 | |||
| No information available, not orderable | ||||
| 842 | 2602130901 | |||
| Locking washer | ||||
| 847 | 2916080007 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 848 | 2602130900 | |||
| Locking washer | ||||
| 854 | 2916080910 | 2.08 | 2.52 | |
| No information available, not orderable | ||||
| 858 | 2606320043 | |||
| No longer available, no replacement | ||||
| 864 | 2607001130 | |||
| No information available, not orderable | ||||
| 870 | 2608012002 | |||
| No longer available, no replacement | ||||
| 878 | 2916080008 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
