Here you will find all available parts and drawings of the 'Bosch 3603C98000 ( PFZ500E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

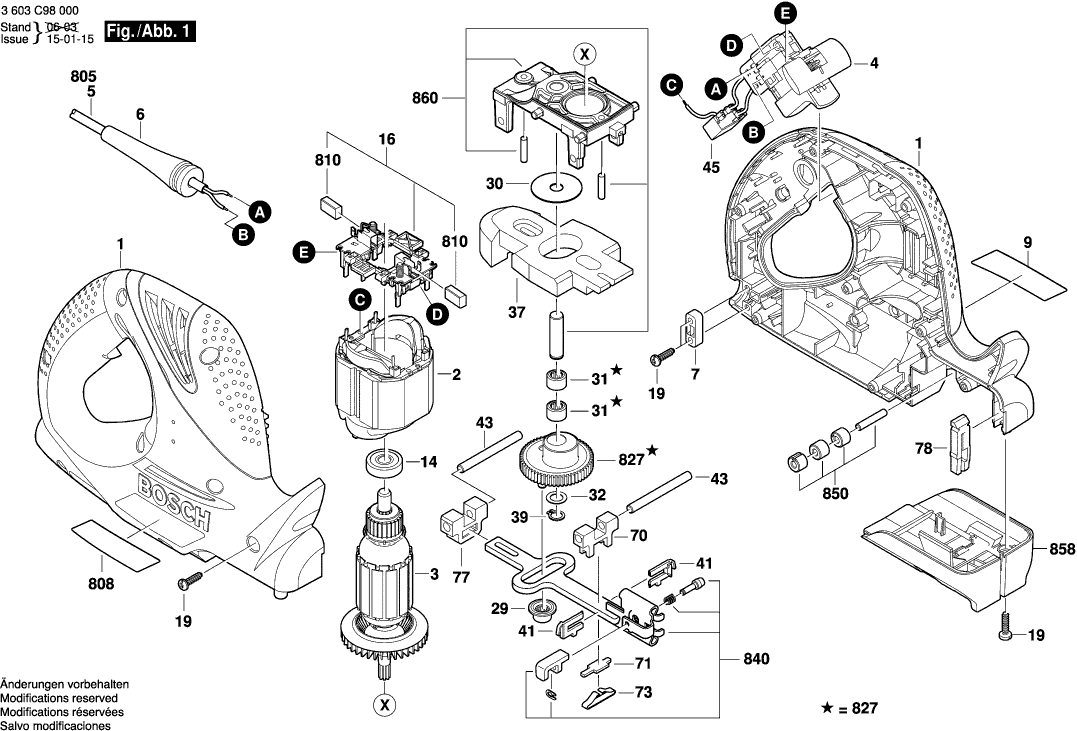

Technical drawing of model Bosch 3603C98000 ( PFZ500E )
Spare parts list of model Bosch 3603C98000 ( PFZ500E )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609000751 | 20.42 | 24.71 | |
| No longer available, no replacement | ||||
| 2 | 2604220601 | |||
| Armature 220-230V | ||||
| 3 | 2604011305 | 29.75 | 36.00 | |
| Switch | ||||
| 4 | 2607200631 | 26.84 | 32.48 | |
| Power supply cord EU 2,7m 2 x 0,75mm H05 VV-F | ||||
| 5 | 2609001429 | 7.58 | 9.17 | |
| Grommet | ||||
| 6 | 2609002019 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate PFZ 500 E | ||||
| 9 | 2609000782 | 2.24 | 2.71 | |
| groove ball bearing 8x19x6 | ||||
| 14 | 2600905046 | 8.45 | 10.22 | |
| Brush Plate | ||||
| 16 | 2609001171 | 10.73 | 12.98 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Needle bearing | ||||
| 29 | 2600914022 | 5.33 | 6.45 | |
| Shim 0,5 MM | ||||
| 30 | 2600101048 | 1.18 | 1.43 | |
| Needle-Roller Bearing Ø8x8 MM | ||||
| 31 | 2600917003 | 2.24 | 2.71 | |
| Shim 0,5 MM | ||||
| 32 | 2600101077 | 1.18 | 1.43 | |
| Counterweight | ||||
| 37 | 2609000787 | 12.41 | 15.02 | |
| Spring retaining ring DIN 471-8x0,8 FSt | ||||
| 39 | 2916640005 | 0.83 | 1.00 | |
| Seal | ||||
| 41 | 2609001156 | 1.94 | 2.35 | |
| Needle Roller | ||||
| 43 | 2603201089 | 4.70 | 5.69 | |
| Suppression Filter | ||||
| 45 | 2609001375 | 5.83 | 7.05 | |
| Plain bearing | ||||
| 70 | 2609001160 | 4.10 | 4.96 | |
| Pressure Element | ||||
| 71 | 2609001161 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 73 | 2609001163 | 0.83 | 1.00 | |
| Plain bearing | ||||
| 77 | 2609001435 | 4.10 | 4.96 | |
| Lateral Guide | ||||
| 78 | 2609001855 | 3.31 | 4.01 | |
| Nameplate | ||||
| 808 | 2609000778 | 2.71 | 3.28 | |
| Carbon-Brush Set | ||||
| 810 | 2610391290 | 6.54 | 7.91 | |
| Eccentric Cog Wheel | ||||
| 827 | 2609001552 | 36.85 | 44.59 | |
| Lifting Rod | ||||
| 840 | 2609001553 | 67.25 | 81.37 | |
| Receptacle | ||||
| 850 | 2609001554 | 15.71 | 19.01 | |
| Protective Cover | ||||
| 858 | 1600A0034U | 5.33 | 6.45 | |
| Bearing Bracket | ||||
| 860 | 2609001556 | 33.45 | 40.47 | |
