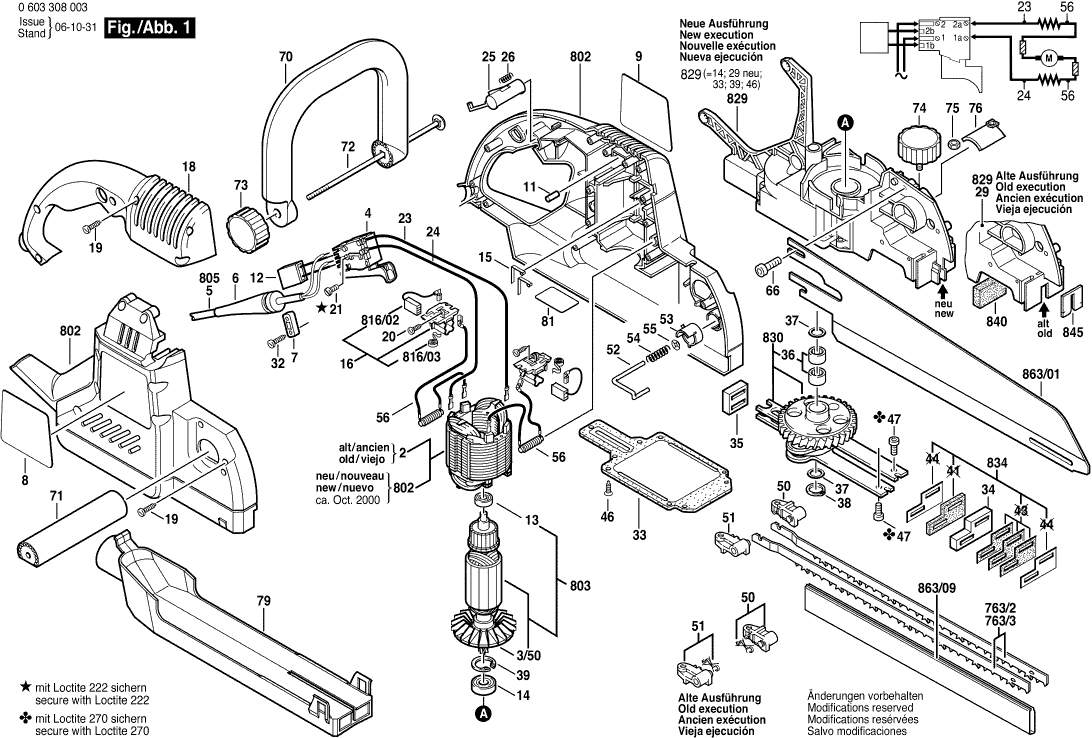

Technical drawing of model Bosch 0603308003 (PFZ1200A)
Spare parts list of model Bosch 0603308003 (PFZ1200A)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 3/50 | 3606610002 | |||
| Switch | ||||
| 4 | 3607200066 | 9.47 | 11.46 | |
| Grommet | ||||
| 6 | 1600703026 | 2.08 | 2.52 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Nameplate | ||||
| 8 | 3601110259 | 2.87 | 3.47 | |
| Manufacturer's nameplate | ||||
| 9 | 3601110258 | 2.87 | 3.47 | |
| Rubber Buffer | ||||
| 11 | 1603100036 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 12 | 1607328028 | |||
| groove ball bearing | ||||
| 13 | 1610905025 | 6.73 | 8.14 | |
| groove ball bearing | ||||
| 14 | 1600900042 | 5.27 | 6.38 | |
| Contact Spring | ||||
| 15 | 3604680003 | 1.32 | 1.60 | |
| Brush Holder | ||||
| 16 | 3604336002 | 9.47 | 11.46 | |
| Housing Cover | ||||
| 18 | 3605500125 | 9.08 | 10.99 | |
| Tapping Screw | ||||
| 19 | 3603435009 | 1.24 | 1.50 | |
| Tapping Screw | ||||
| 20 | 2910211006 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 21 | 2603410001 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 23 | 3604411036 | 3.04 | 3.68 | |
| Connecting Cable | ||||
| 24 | 3604411038 | 2.87 | 3.47 | |
| Rejection Slide | ||||
| 25 | 3602329028 | 1.32 | 1.60 | |
| Compression Spring | ||||
| 26 | 3604610041 | 1.32 | 1.60 | |
| Tapping Screw | ||||
| 32 | 2910211019 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 33 | 3605500133 | 10.68 | 12.92 | |
| Plain bearing | ||||
| 34 | 3600929027 | 5.96 | 7.21 | |
| Plain bearing | ||||
| 35 | 3600929030 | 4.58 | 5.54 | |
| Needle bearing | ||||
| 36 | 3600913008 | 3.04 | 3.68 | |
| Friction Washer | ||||
| 37 | 3600102045 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 38 | 2916650903 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 39 | 2916660010 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 46 | 3603391003 | 2.08 | 2.52 | |
| Hex Socket Head Cap Screw | ||||
| 47 | 3603410020 | 1.32 | 1.60 | |
| Base Body | ||||
| 50 | 3602319021 | 10.68 | 12.92 | |
| Base Body | ||||
| 51 | 3602319022 | 10.68 | 12.92 | |
| Bow | ||||
| 52 | 3601921005 | 5.27 | 6.38 | |
| Actuating Element | ||||
| 53 | 3600522002 | 3.04 | 3.68 | |
| Compression Spring | ||||
| 54 | 3604682004 | 1.90 | 2.30 | |
| Locking washer | ||||
| 55 | 3600112002 | 1.32 | 1.60 | |
| Suppression Filter | ||||
| 56 | 3604463010 | 5.61 | 6.79 | |
| Hex Socket Head Cap Screw | ||||
| 66 | 3603386041 | 1.32 | 1.60 | |
| Auxiliary Handle | ||||
| 70 | 3605132063 | 15.61 | 18.89 | |
| Distance Pipe | ||||
| 71 | 3600723012 | 6.53 | 7.90 | |
| Round-Head Bolt | ||||
| 72 | 3603300015 | 2.52 | 3.05 | |
| Handwheel | ||||
| 73 | 3602317021 | 3.71 | 4.49 | |
| Handwheel | ||||
| 74 | 3602317020 | 3.71 | 4.49 | |
| Hex Nut | ||||
| 75 | 2915011007 | 1.00 | 1.21 | |
| Clamping Piece | ||||
| 76 | 3601329018 | 1.32 | 1.60 | |
| Suction Channel | ||||
| 79 | 3602317017 | 17.60 | 21.30 | |
| Reference Plate | ||||
| 81 | 3601110332 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 763/2 | 2608632119 | |||
| No longer available, no replacement | ||||
| 763/3 | 2608632122 | |||
| Field | ||||
| 802 | 1607000712 | 80.75 | 97.71 | |
| No longer available, no replacement | ||||
| 803 | 3604010077 | |||
| Power supply cord | ||||
| 805 | 1607000227 | 23.90 | 28.92 | |
| Carbon Brush | ||||
| 816/02 | 3604321012 | 10.68 | 12.92 | |
| Spiral Spring | ||||
| 816/03 | 3604652500 | 1.00 | 1.21 | |
| Gear Housing | ||||
| 829 | 3605109010 | 91.33 | 110.51 | |
| Lift Gear | ||||
| 830 | 3602319020 | 126.98 | 153.65 | |
| Seal Kit | ||||
| 834 | 3600929039 | 13.90 | 16.82 | |
| Insulating Plate | ||||
| 840 | 1602381006 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 845 | 3600929034 | |||
| No longer available, no replacement | ||||
| 863/01 | 2608045016 | |||
| No longer available, no replacement | ||||
| 863/09 | 2601329048 | |||
