Here you will find all available parts and drawings of the 'Bosch 3603B07100 (PFS3000-2)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

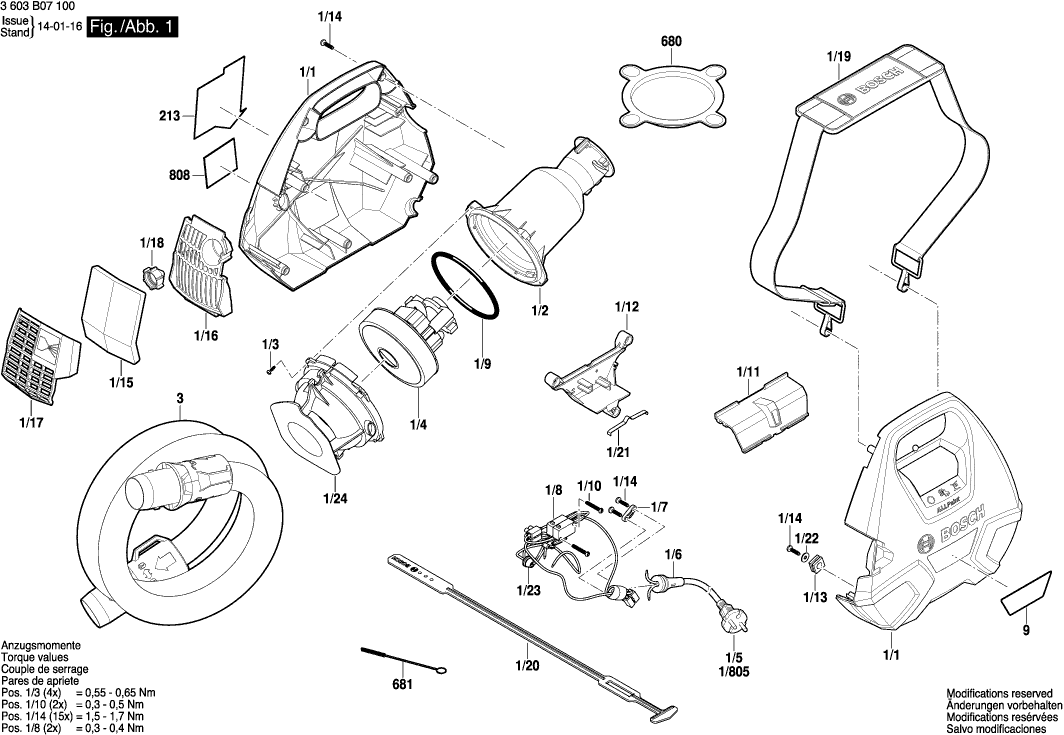

Technical drawing of model Bosch 3603B07100 (PFS3000-2)
Spare parts list of model Bosch 3603B07100 (PFS3000-2)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1/1 | 2609006541 | 31.42 | 38.02 | |
| Plastic-Cutting Screw | ||||
| 1/10 | 1609280149 | 1.00 | 1.21 | |
| Slide Button | ||||
| 1/11 | 2609006542 | 3.44 | 4.16 | |
| Switch Plate | ||||
| 1/12 | 2609006546 | 2.08 | 2.52 | |
| Vibration Damper | ||||
| 1/13 | 2609006797 | 1.00 | 1.21 | |
| Screw | ||||
| 1/14 | 2603490022 | 1.00 | 1.21 | |
| Air Filter | ||||
| 1/15 | 2609006555 | 7.46 | 9.03 | |
| Holder | ||||
| 1/16 | 2609006556 | 3.44 | 4.16 | |
| Filter Cover | ||||
| 1/17 | 2609006547 | 3.44 | 4.16 | |
| Nozzle GRAY | ||||
| 1/18 | 2609006620 | 1.49 | 1.80 | |
| Shoulder strap | ||||
| 1/19 | 2609006815 | 9.67 | 11.70 | |
| Motor Housing | ||||
| 1/2 | 2609006543 | 6.73 | 8.14 | |
| Cable tie | ||||
| 1/20 | 2609006816 | 6.73 | 8.14 | |
| Leaf Spring | ||||
| 1/21 | 2609006817 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 1/22 | 2916011892 | 1.00 | 1.21 | |
| Cable Sleeve | ||||
| 1/23 | 2609006881 | 1.49 | 1.80 | |
| Motor Housing | ||||
| 1/24 | 16051082A8 | 8.35 | 10.10 | |
| Torx Oval-Head Screw | ||||
| 1/3 | 2603490017 | 2.08 | 2.52 | |
| Motor | ||||
| 1/4 | 2609006540 | 52.45 | 63.46 | |
| Grommet | ||||
| 1/6 | 2609002019 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 1/7 | 2601035001 | 1.49 | 1.80 | |
| Wiring Harness | ||||
| 1/8 | 2609006802 | 16.79 | 20.32 | |
| Power supply cord | ||||
| 1/805 | 1607000387 | 10.90 | 13.19 | |
| Seal Ring | ||||
| 1/9 | 2609006882 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 2/10 | 2609006630 | |||
| No information available, not orderable | ||||
| 2/12 | 2609006622 | |||
| No information available, not orderable | ||||
| 2/13 | 2609006624 | |||
| No information available, not orderable | ||||
| 2/14 | 2609006619 | |||
| No information available, not orderable | ||||
| 2/15 | 2609006623 | |||
| No longer available, no replacement | ||||
| 2/16 | 2604610073 | |||
| No longer available, no replacement | ||||
| 2/17 | 2609006625 | |||
| No longer available, no replacement | ||||
| 2/18 | 2609006626 | |||
| No longer available, no replacement | ||||
| 2/19 | 2609006627 | |||
| No information available, not orderable | ||||
| 2/2 | 2609006611 | |||
| No longer available, no replacement | ||||
| 2/20 | 2609006628 | |||
| Torx Oval-Head Screw | ||||
| 2/21 | 2603490017 | 2.08 | 2.52 | |
| O-Ring | ||||
| 2/22 | 1610210201 | 1.00 | 1.21 | |
| O-Ring 10,82x1,78 MM | ||||
| 2/23 | 2600210004 | 4.18 | 5.06 | |
| Torx Oval-Head Screw | ||||
| 2/24 | 2603490018 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 2/3 | 2609006612 | |||
| Insert | ||||
| 2/4 | 2609006613 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 2/5 | 2609006614 | |||
| Spraying Nozzle | ||||
| 2/6 | 2609006615 | 7.46 | 9.03 | |
| Union Nut | ||||
| 2/7 | 2609006616 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 2/8 | 2609006617 | |||
| No information available, not orderable | ||||
| 2/801 | 2609007309 | |||
| No information available, not orderable | ||||
| 2/9 | 2609006618 | |||
| Air Hose | ||||
| 3 | 2609007100 | 23.90 | 28.92 | |
| Manufacturer's nameplate PFS 3000-2 | ||||
| 9 | 2609007306 | 2.40 | 2.90 | |
| Sticker | ||||
| 213 | 2609007310 | 2.40 | 2.90 | |
| Filter | ||||
| 680 | 2609007097 | 5.81 | 7.03 | |
| Brush | ||||
| 681 | 1600A028GH | 2.52 | 3.05 | |
| Nameplate | ||||
| 808 | 160111A2LZ | 2.40 | 2.90 | |
| spray gun | ||||
| 899 | 2609006609 | 71.68 | 86.73 | |
