Here you will find all available parts and drawings of the 'Bosch 3603CA3000 (PEX300AE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

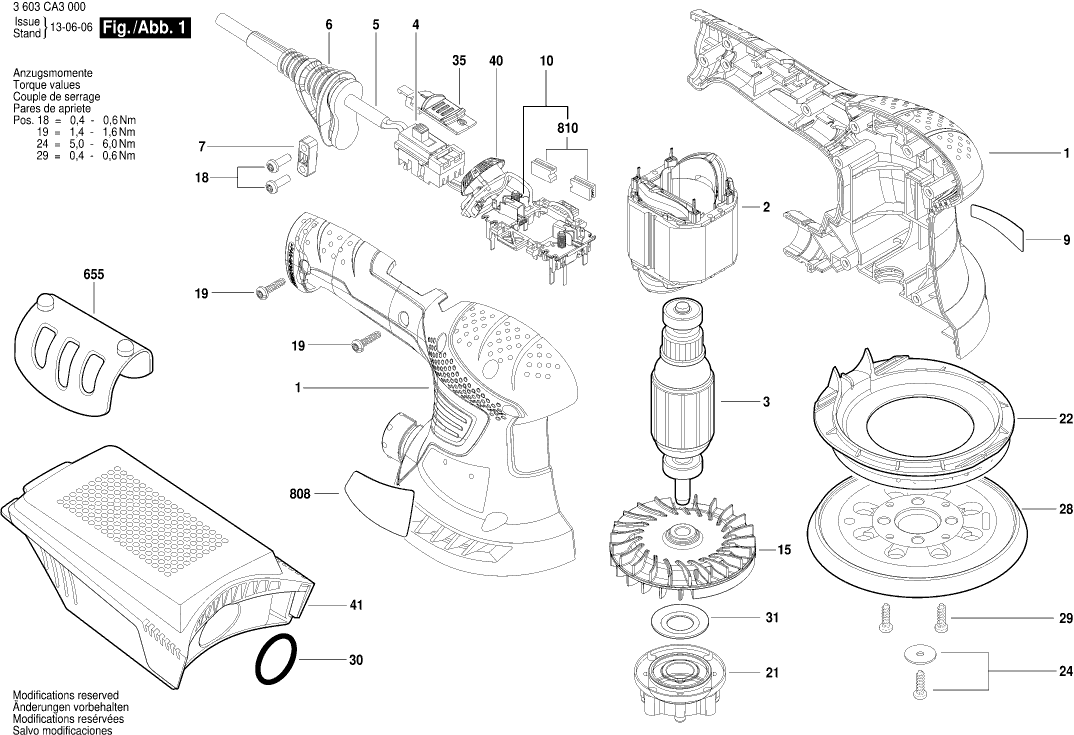

Technical drawing of model Bosch 3603CA3000 (PEX300AE)
Spare parts list of model Bosch 3603CA3000 (PEX300AE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2609004166 | 18.94 | 22.92 | |
| Field | ||||
| 2 | 2609005423 | 16.79 | 20.32 | |
| Armature | ||||
| 3 | 2609004167 | 31.42 | 38.02 | |
| Switch | ||||
| 4 | 1607200254 | 6.73 | 8.14 | |
| Power supply cord | ||||
| 5 | 2604460259 | 12.82 | 15.51 | |
| Grommet | ||||
| 6 | 2609003080 | 1.49 | 1.80 | |
| Grommet | ||||
| 6 | 2609006376 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2609004179 | 2.40 | 2.90 | |
| Brush Holder | ||||
| 10 | 2609004170 | 8.35 | 10.10 | |
| axial flow fan | ||||
| 15 | 2609004169 | 9.67 | 11.70 | |
| Screw | ||||
| 18 | 2603490022 | 1.00 | 1.21 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Bearing Flange | ||||
| 21 | 2609006535 | 23.90 | 28.92 | |
| Holder | ||||
| 22 | 2609004914 | 8.35 | 10.10 | |
| Torx Oval-Head Screw | ||||
| 24 | 2610918116 | 3.44 | 4.16 | |
| Sander Plate | ||||
| 28 | 2609004175 | 18.94 | 22.92 | |
| Torx Oval-Head Screw | ||||
| 29 | 2610386516 | 1.49 | 1.80 | |
| O-Ring | ||||
| 30 | 160021007J | 1.49 | 1.80 | |
| Disc | ||||
| 31 | 2609004690 | 1.00 | 1.21 | |
| Slider | ||||
| 35 | 2609004171 | 1.00 | 1.21 | |
| Rpm Actuator | ||||
| 40 | 1607233419 | 18.94 | 22.92 | |
| Dust container | ||||
| 41 | 2609005842 | 12.82 | 15.51 | |
| Carrying Case | ||||
| 650 | 16054381FV | 43.12 | 52.18 | |
| Positioning Element | ||||
| 655 | 2609004646 | 2.86 | 3.46 | |
| Nameplate | ||||
| 808 | 160111A2V7 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 2609000246 | 6.73 | 8.14 | |
