Here you will find all available parts and drawings of the 'Bosch 3603C78001 ( PEX220A )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

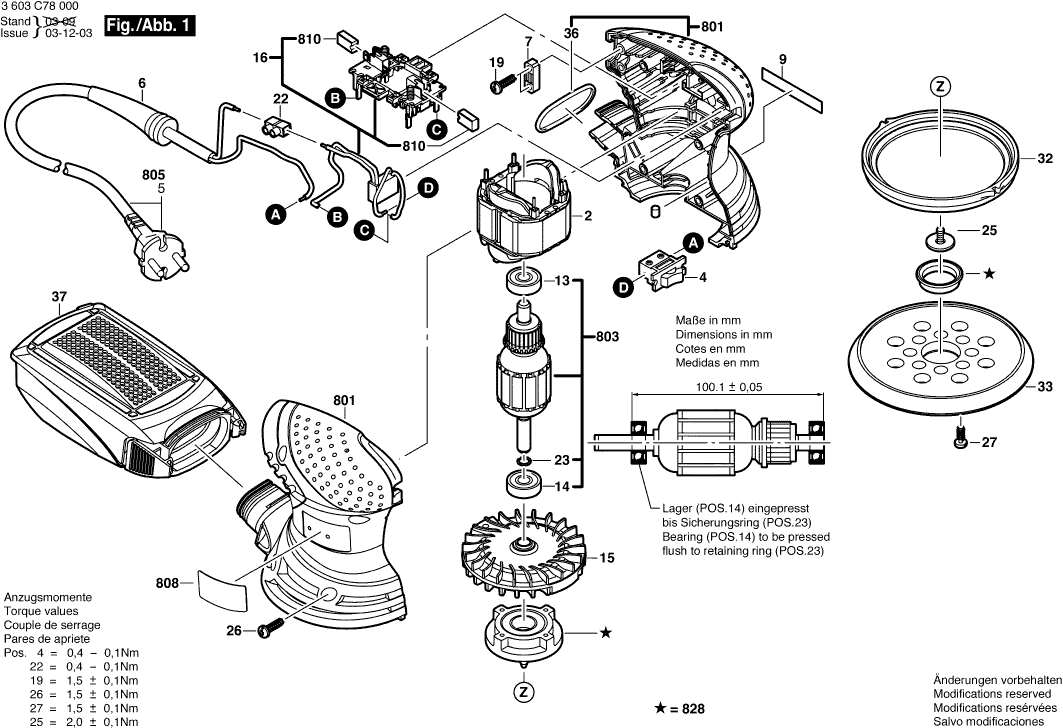

Technical drawing of model Bosch 3603C78001 ( PEX220A )
Spare parts list of model Bosch 3603C78001 ( PEX220A )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 2609001807 | 16.79 | 20.32 | |
| Switch | ||||
| 4 | 1607200289 | 3.44 | 4.16 | |
| Grommet | ||||
| 6 | 2609002019 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2609000119 | 3.44 | 4.16 | |
| groove ball bearing | ||||
| 13 | 2600905078 | 6.73 | 8.14 | |
| groove ball bearing | ||||
| 14 | 2600905078 | 6.73 | 8.14 | |
| Fan | ||||
| 15 | 2609000020 | 7.46 | 9.03 | |
| Brush Holder | ||||
| 16 | 2609000032 | 11.37 | 13.76 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Socket-Terminal Strip | ||||
| 22 | 2609000082 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 23 | 2916540005 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 25 | 2610918116 | 3.44 | 4.16 | |
| Screw | ||||
| 26 | 2603490022 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 27 | 2603490021 | 1.00 | 1.21 | |
| Friction Ring | ||||
| 32 | 2609170077 | 3.04 | 3.68 | |
| Friction Ring | ||||
| 32 | 1600A00JE7 | 2.40 | 2.90 | |
| Backing Pad | ||||
| 33 | 2609000750 | 13.13 | 15.89 | |
| O-Ring | ||||
| 36 | 2609001761 | 1.00 | 1.21 | |
| Dust container | ||||
| 37 | 2609001542 | 14.94 | 18.08 | |
| Housing Section | ||||
| 801 | 2609001825 | 21.30 | 25.77 | |
| Armature | ||||
| 803 | 2609001827 | 39.14 | 47.36 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 160111A2V1 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 2610391290 | 7.32 | 8.86 | |
| Bearing Flange | ||||
| 828 | 2609000261 | 16.79 | 20.32 | |
