Here you will find all available parts and drawings of the 'Bosch 3603C78000 (PEX220A)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

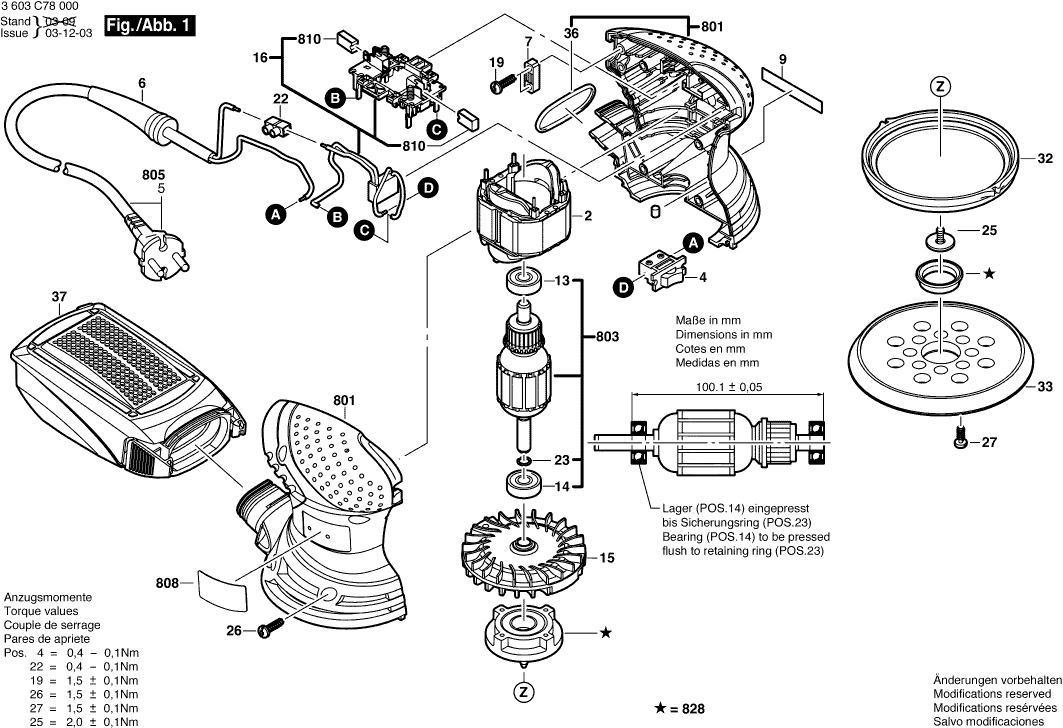

Technical drawing of model Bosch 3603C78000 (PEX220A)
Spare parts list of model Bosch 3603C78000 (PEX220A)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 2 | 2604220695 | |||
| Switch | ||||
| 4 | 1607200289 | 3.44 | 4.16 | |
| Grommet | ||||
| 6 | 2609002019 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2609000119 | 3.44 | 4.16 | |
| groove ball bearing | ||||
| 13 | 2600905078 | 6.73 | 8.14 | |
| groove ball bearing | ||||
| 14 | 2600905078 | 6.73 | 8.14 | |
| Fan | ||||
| 15 | 2609000020 | 7.46 | 9.03 | |
| Brush Holder | ||||
| 16 | 2609000032 | 11.37 | 13.76 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Socket-Terminal Strip | ||||
| 22 | 2609000082 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 23 | 2916540005 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 25 | 2610918116 | 3.44 | 4.16 | |
| Screw | ||||
| 26 | 2603490022 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 27 | 2603490021 | 1.00 | 1.21 | |
| Friction Ring | ||||
| 32 | 1600A00JE7 | 2.40 | 2.90 | |
| Backing Pad | ||||
| 33 | 2609000750 | 13.13 | 15.89 | |
| O-Ring | ||||
| 36 | 2609001761 | 1.00 | 1.21 | |
| Dust container | ||||
| 37 | 2609001542 | 14.94 | 18.08 | |
| Housing Section | ||||
| 801 | 2609001825 | 21.30 | 25.77 | |
| No information available, not orderable | ||||
| 803 | 2609000217 | |||
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| No information available, not orderable | ||||
| 808 | 2609000123 | |||
| Carbon-Brush Set | ||||
| 810 | 2610391290 | 7.32 | 8.86 | |
| Bearing Flange | ||||
| 828 | 2609000261 | 16.79 | 20.32 | |
