Here you will find all available parts and drawings of the 'Bosch 0603283003 (PEX125A)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

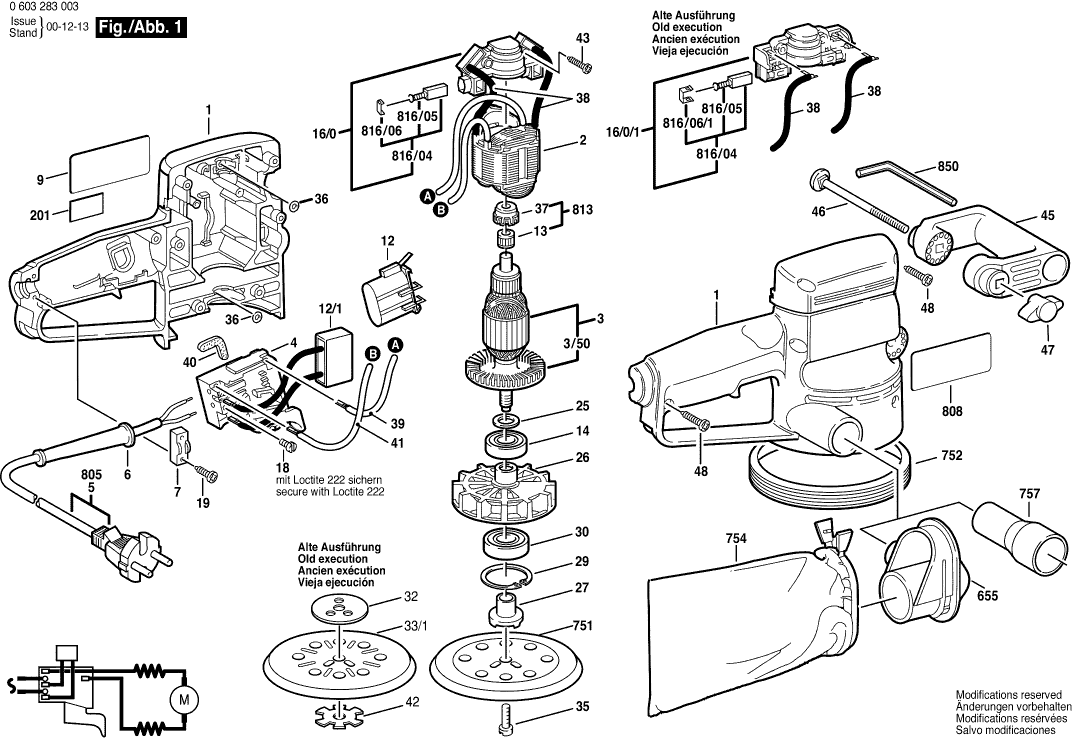

Technical drawing of model Bosch 0603283003 (PEX125A)
Spare parts list of model Bosch 0603283003 (PEX125A)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104288 | 17.22 | 20.84 | |
| No longer available, no replacement | ||||
| 2 | 2604220475 | |||
| No longer available, no replacement | ||||
| 3 | 2604010754 | |||
| Fan | ||||
| 3/50 | 2606610055 | 4.18 | 5.06 | |
| Switch | ||||
| 4 | 2607200260 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 6 | 2600703007 | |||
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2601118055 | 1.73 | 2.09 | |
| No longer available, no replacement | ||||
| 12 | 1607328028 | |||
| Needle bearing | ||||
| 13 | 2600917002 | 3.44 | 4.16 | |
| groove ball bearing | ||||
| 14 | 2600905034 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 16 | 2604337118 | |||
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 19 | 2603490021 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 25 | 2600100041 | 1.49 | 1.80 | |
| Fan | ||||
| 26 | 2606610058 | 11.94 | 14.45 | |
| No longer available, no replacement | ||||
| 27 | 2600328017 | |||
| Spring retaining ring | ||||
| 29 | 2600116014 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 30 | 2600905111 | |||
| Plastic Disc | ||||
| 32 | 2600009008 | 1.73 | 2.09 | |
| No longer available, no replacement | ||||
| 35 | 2910975197 | |||
| No longer available, no replacement | ||||
| 36 | 2600210036 | |||
| No longer available, no replacement | ||||
| 37 | 2600222002 | |||
| Connecting Cable | ||||
| 39 | 2604448000 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 40 | 2601022000 | |||
| Cable | ||||
| 41 | 1614431010 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 42 | 2600190150 | |||
| Special Screw | ||||
| 43 | 2603435032 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 45 | 2602025058 | |||
| Round-Head Bolt | ||||
| 46 | 2910285226 | 1.32 | 1.60 | |
| Hex Nut | ||||
| 47 | 2610387875 | 2.40 | 2.90 | |
| Special Screw | ||||
| 48 | 2603435036 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 655 | 2605702012 | |||
| Backing Pad | ||||
| 751 | 2608601061 | 0.83 | 1.00 | |
| Backing Pad | ||||
| 751 | 2608601062 | 0.83 | 1.00 | |
| Backing Pad | ||||
| 751 | 2608601063 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 752 | 2600282003 | |||
| Dust Bag | ||||
| 754 | 2605411027 | 1.00 | 1.21 | |
| Suction Pipe | ||||
| 757 | 1609200976 | 1.00 | 1.21 | |
| Power supply cord | ||||
| 805 | 1607000388 | 11.37 | 13.76 | |
| Nameplate | ||||
| 808 | 2601118048 | 0.83 | 1.00 | |
| Needle bearing | ||||
| 813 | 2600917002 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 816/04 | 2607014001 | |||
| Compression Spring | ||||
| 816/05 | 2604610026 | 2.40 | 2.90 | |
| Ratchet Cap | ||||
| 816/06 | 2601322013 | 1.49 | 1.80 | |
| Offset Screwdriver | ||||
| 850 | 2607950004 | 1.49 | 1.80 | |
