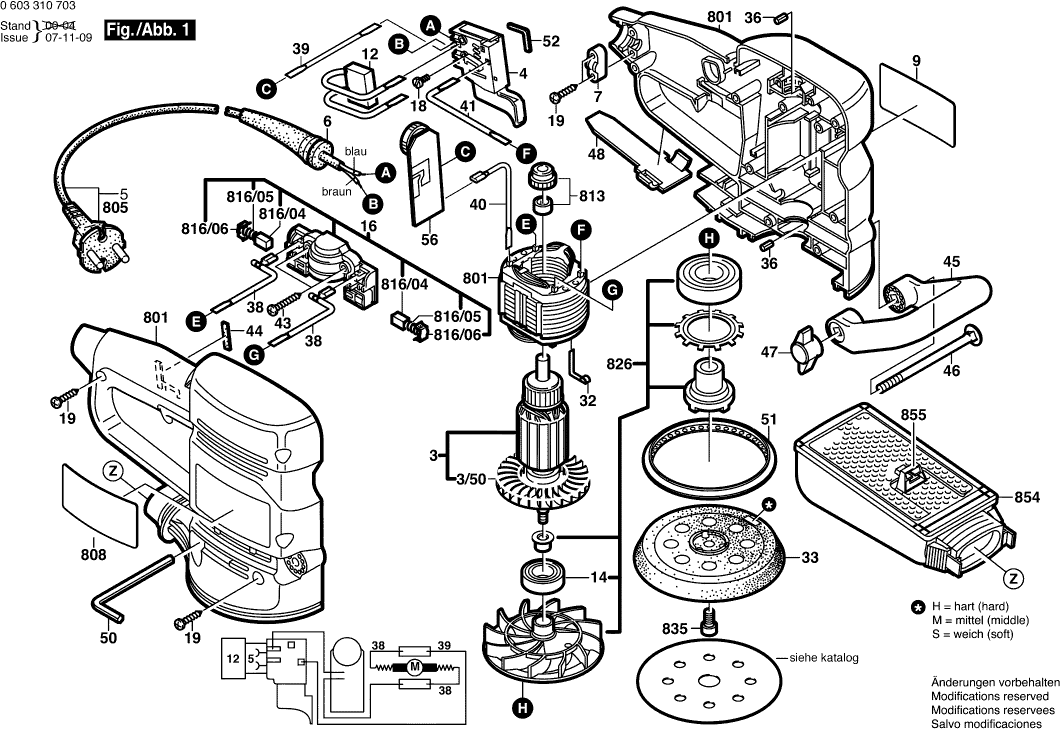

Technical drawing of model Bosch 0603310703 ( PEX12AE )
Spare parts list of model Bosch 0603310703 ( PEX12AE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 3 | 2604011265 | |||
| No longer available, no replacement | ||||
| 3/50 | 2606610077 | |||
| Switch | ||||
| 4 | 2607200260 | 8.45 | 10.22 | |
| Grommet Ø6,4-Ø7,2x76 MM | ||||
| 6 | 2600703017 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601118416 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 12 | 1607328028 | |||
| groove ball bearing | ||||
| 14 | 2600905034 | 10.73 | 12.98 | |
| Brush Plate | ||||
| 16 | 2604337118 | 20.42 | 24.71 | |
| Socket head cap screw M3x6,5-4.8 | ||||
| 18 | 2603410001 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Contact Spring | ||||
| 32 | 2601329057 | 1.94 | 2.35 | |
| Backing Pad | ||||
| 33 | 2608601902 | 20.42 | 24.71 | |
| Rubber Buffer | ||||
| 36 | 1603100036 | 1.18 | 1.43 | |
| Connecting Cable L=113 MM WHITE | ||||
| 38 | 2604448180 | 0.83 | 1.00 | |
| Connecting Cable L=233 MM WHITE | ||||
| 40 | 2604448181 | 1.70 | 2.06 | |
| Connecting Cable L=83 MM WHITE | ||||
| 41 | 2604448183 | 1.70 | 2.06 | |
| Torx Oval-Head Screw 4x20 | ||||
| 43 | 2603490023 | 0.83 | 1.00 | |
| Seal Strip | ||||
| 44 | 2602380003 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 45 | 2602025068 | |||
| Round-Head Bolt DIN 603-M6x110 | ||||
| 46 | 2910285226 | 1.18 | 1.43 | |
| Hex Nut | ||||
| 47 | 2610387875 | 1.94 | 2.35 | |
| Pusher | ||||
| 48 | 2608005043 | 0.83 | 1.00 | |
| Offset Screwdriver | ||||
| 50 | 1907950006 | 3.12 | 3.78 | |
| Hexagon Socket Screw Key 5 MM | ||||
| 50 | 2610364015 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 51 | 2600206015 | |||
| No longer available, no replacement | ||||
| 52 | 2601022000 | |||
| Rpm Actuator 230-240V | ||||
| 56 | 2607233023 | 20.42 | 24.71 | |
| Dust Bag 1 PIECE | ||||
| 654 | 2605411069 | 2.71 | 3.28 | |
| Housing Section | ||||
| 801 | 2605104800 | 36.85 | 44.59 | |
| Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F | ||||
| 805 | 1607000388 | 9.53 | 11.53 | |
| Nameplate | ||||
| 808 | 2601119287 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 813 | 2605805005 | |||
| No longer available, no replacement | ||||
| 816/04 | 2604321917 | |||
| Compression Spring | ||||
| 816/05 | 2604610026 | 1.94 | 2.35 | |
| Ratchet Cap | ||||
| 816/06 | 2601322013 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 816/06 | 2601329051 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 826 | 2606610901 | |||
| Hex Socket Head Cap Screw | ||||
| 835 | 2603414062 | 1.70 | 2.06 | |
| Dust Chamber | ||||
| 854 | 1619X06377 | 9.53 | 11.53 | |
| Adapter | ||||
| 855 | 2605702039 | 4.10 | 4.96 | |
