Here you will find all available parts and drawings of the 'Bosch 0603282063 ( PEX115A )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

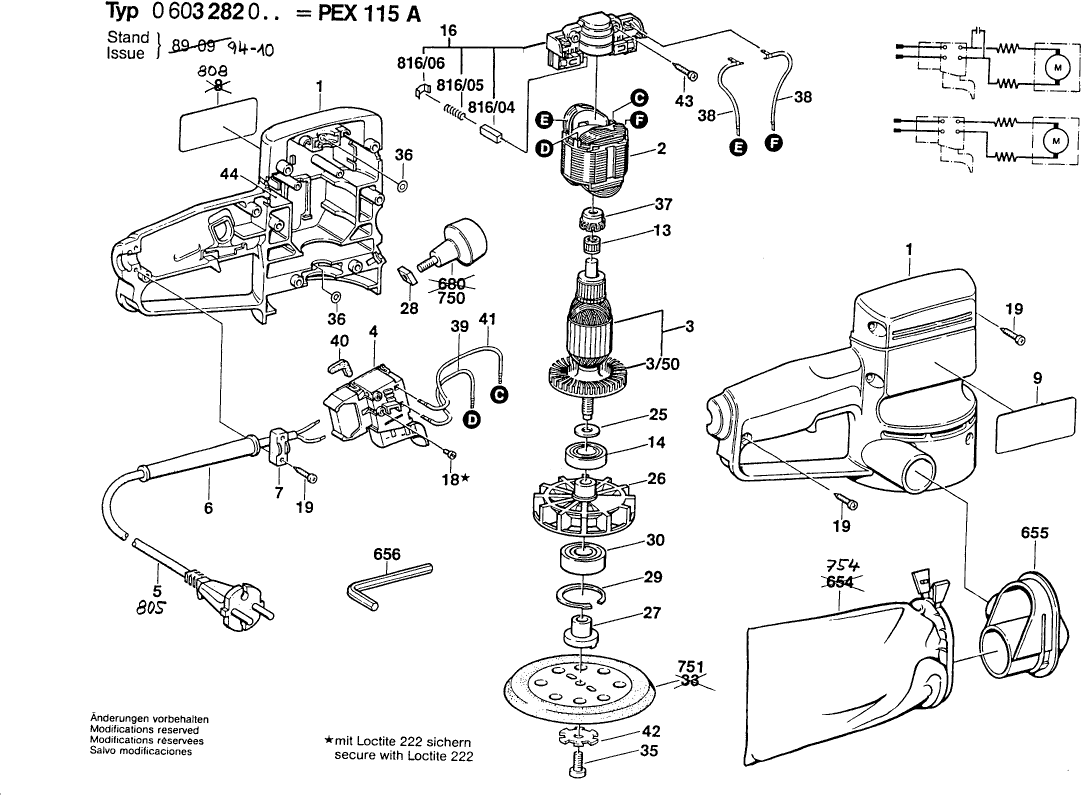

Technical drawing of model Bosch 0603282063 ( PEX115A )
Spare parts list of model Bosch 0603282063 ( PEX115A )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section GREEN | ||||
| 1 | 2605104287 | 13.93 | 16.86 | |
| No longer available, no replacement | ||||
| 2 | 2604220507 | |||
| Armature 220V | ||||
| 3 | 2604010750 | 36.85 | 44.59 | |
| Fan | ||||
| 3/50 | 2606610055 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 4 | 2607200376 | |||
| Grommet Ø6,5-Ø6,9x95 MM | ||||
| 6 | 2600703031 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Nameplate | ||||
| 9 | 2601110749 | 1.18 | 1.43 | |
| Needle bearing | ||||
| 13 | 2600917002 | 2.71 | 3.28 | |
| groove ball bearing | ||||
| 14 | 2600905034 | 10.73 | 12.98 | |
| Brush Plate | ||||
| 16 | 2604337118 | 20.42 | 24.71 | |
| Socket head cap screw M3x6,5-4.8 | ||||
| 18 | 2603410001 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 4x12 | ||||
| 19 | 2603490021 | 0.83 | 1.00 | |
| Plain Washer DIN 315-M8-GT-C | ||||
| 25 | 2600100041 | 1.18 | 1.43 | |
| Fan | ||||
| 26 | 2606610057 | 12.41 | 15.02 | |
| No longer available, no replacement | ||||
| 27 | 2600328016 | |||
| Square Nut DIN 562-M6-04 | ||||
| 28 | 2915121006 | 1.94 | 2.35 | |
| Washer | ||||
| 29 | 2600190059 | 1.70 | 2.06 | |
| Spring retaining ring | ||||
| 29 | 2600116014 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 30 | 2600905111 | |||
| No longer available, no replacement | ||||
| 35 | 2910975197 | |||
| O-Ring 5,0x1,5 MM | ||||
| 36 | 1900210000 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 37 | 2600222002 | |||
| Connecting Cable L=115 MM WHITE | ||||
| 38 | 2604448109 | 0.83 | 1.00 | |
| Cable L=103MM WHITE | ||||
| 39 | 2604448140 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 40 | 2601022000 | |||
| Cable L=233 MM WHITE | ||||
| 41 | 1614431010 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 42 | 2600190150 | |||
| Torx Oval-Head Screw 4x20 | ||||
| 43 | 2603490023 | 0.83 | 1.00 | |
| Seal Strip | ||||
| 44 | 2602380002 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 655 | 2605702012 | |||
| Offset Screwdriver DIN 911-4 | ||||
| 656 | 2607950004 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 682 | 2608610001 | |||
| No longer available, no replacement | ||||
| 750 | 2602026046 | |||
| No information available, not orderable | ||||
| 751 | 2608601065 | |||
| No longer available, no replacement | ||||
| 754 | 2605411025 | |||
| No information available, not orderable | ||||
| 757 | 1609200976 | |||
| No longer available, no replacement | ||||
| 783 | 2600282002 | |||
| No information available, not orderable | ||||
| 784 | 2605438108 | |||
| Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN- | ||||
| 805 | 1607000386 | 15.71 | 19.01 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 816/04 | 2604321917 | |||
| Compression Spring | ||||
| 816/05 | 2604610026 | 1.94 | 2.35 | |
| Ratchet Cap | ||||
| 816/06 | 2601322013 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 816/06 | 2601329051 | 1.18 | 1.43 | |
