Here you will find all available parts and drawings of the 'Bosch 0603339003 ( PDA180 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

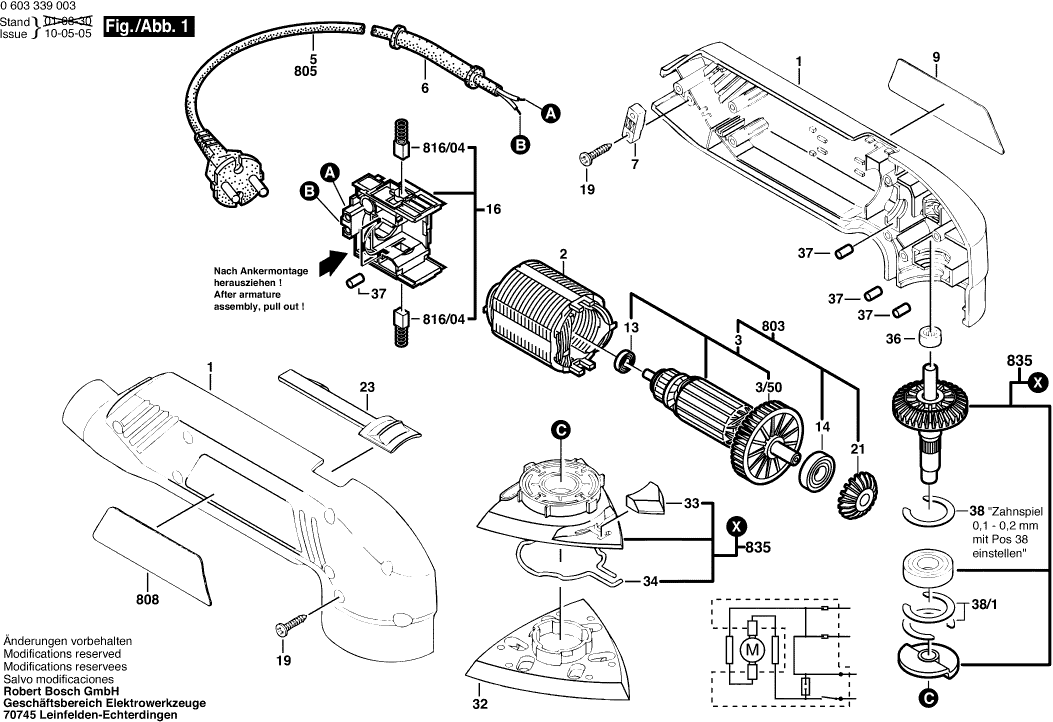

Technical drawing of model Bosch 0603339003 ( PDA180 )

Spare parts list of model Bosch 0603339003 ( PDA180 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing Section GREEN
1 2605104650 12.41 15.02
Field 220-240V
2 2604220639 13.93 16.86
Armature 220-240V
3 2604010965 29.75 36.00
No longer available, no replacement
3/50 2606610083
Grommet Ø6,5-Ø6,9x95 MM
6 2600703012 2.24 2.71
Cable Clip
7 2601035001 1.18 1.43
Manufacturer's nameplate
9 2601119879 2.71 3.28
groove ball bearing 8x19x6
13 2600905046 8.45 10.22
groove ball bearing 8x22x7
14 1600905011 4.70 5.69
Brush Plate
16 2604337078 18.19 22.01
Screw 4x16
19 2603490022 0.83 1.00
Pinion
21 2606333038 5.33 6.45
Switch Slide
23 2602319021 1.70 2.06
Closing Plate
32 2608000232 8.45 10.22
Catch Slide
33 2608000173 2.24 2.71
Clamping Spring
34 2604680000 2.24 2.71
Needle bearing
36 2600917002 2.71 3.28
Damping rubber
37 2603100056 1.18 1.43
Shim 0,2 MM
38 2600101088 1.18 1.43
Shim 0,5 MM
38/1 2600101091 1.70 2.06
Armature 220-240V
803 2604010962 36.85 44.59
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
805 1607000386 15.71 19.01
Marking Plate
808 2601119950 2.71 3.28
No longer available, no replacement
816/04 2607014010
Tool Holding Fixture
835 2601098902 18.19 22.01
