Here you will find all available parts and drawings of the 'Bosch 0603307103 (PDA10-92)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

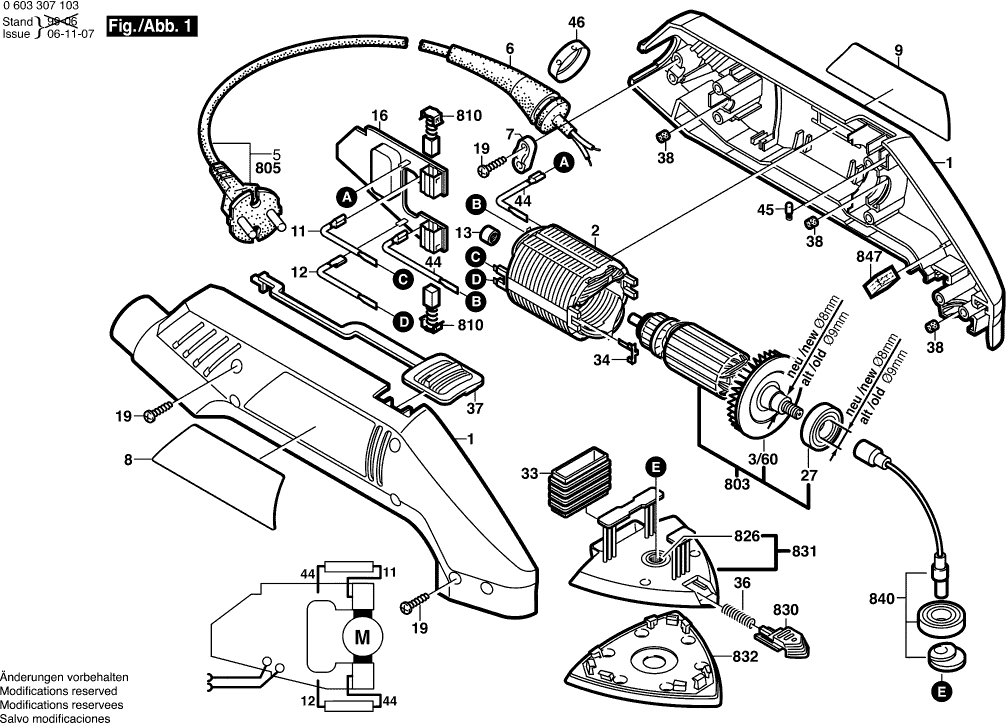

Technical drawing of model Bosch 0603307103 (PDA10-92)
Spare parts list of model Bosch 0603307103 (PDA10-92)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104416 | 11.94 | 14.45 | |
| Field | ||||
| 2 | 2604220518 | 35.58 | 43.05 | |
| No longer available, no replacement | ||||
| 3/60 | 2606610083 | |||
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Nameplate | ||||
| 8 | 2601118946 | 2.87 | 3.47 | |
| Manufacturer's nameplate | ||||
| 9 | 2601118953 | 2.87 | 3.47 | |
| Connecting Cable | ||||
| 11 | 2604448178 | 1.24 | 1.50 | |
| Connecting Cable | ||||
| 12 | 2604448016 | 1.49 | 1.80 | |
| Needle bearing | ||||
| 13 | 2600917002 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 16 | 1607233095 | |||
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 27 | 2600905060 | |||
| Flexible Connection | ||||
| 33 | 2600712003 | 2.00 | 2.42 | |
| Contact Spring | ||||
| 34 | 2601329037 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 36 | 2604610034 | |||
| No longer available, no replacement | ||||
| 37 | 2602319008 | |||
| Damping rubber | ||||
| 38 | 2603100056 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 44 | 2604448034 | 1.49 | 1.80 | |
| Thrust Member | ||||
| 45 | 2600590010 | 3.48 | 4.21 | |
| Clamping Ring | ||||
| 46 | 2600290025 | 2.87 | 3.47 | |
| Armature | ||||
| 803 | 2604010931 | 47.68 | 57.69 | |
| Power supply cord | ||||
| 805 | 1607000388 | 11.37 | 13.76 | |
| No longer available, no replacement | ||||
| 810 | 2607014010 | |||
| Needle-Roller Bearing | ||||
| 826 | 2600917007 | 3.48 | 4.21 | |
| No longer available, no replacement | ||||
| 830 | 2608000144 | |||
| No longer available, no replacement | ||||
| 831 | 2601098901 | |||
| No longer available, no replacement | ||||
| 832 | 2608000143 | |||
| No longer available, no replacement | ||||
| 840 | 2603010002 | |||
| Guide Piece | ||||
| 847 | 2608005068 | 0.83 | 1.00 | |
