Here you will find all available parts and drawings of the 'Bosch 3603M11000 (PCM8SD)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

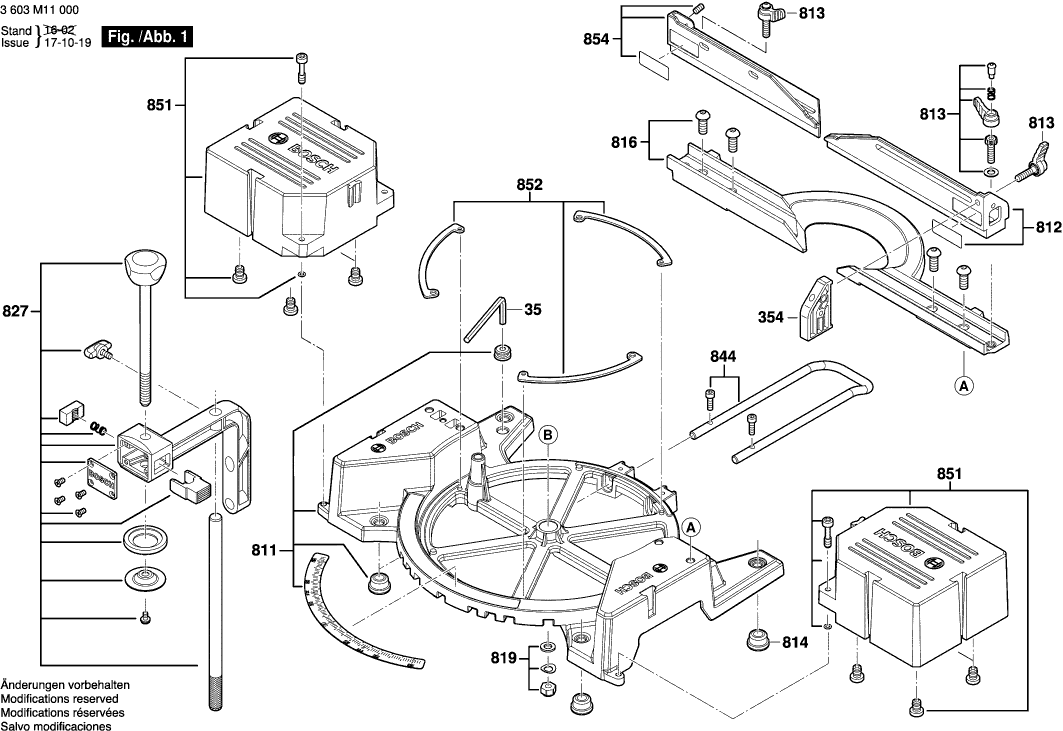

Technical drawing of model Bosch 3603M11000 (PCM8SD)
Spare parts list of model Bosch 3603M11000 (PCM8SD)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 4 | 1609B04011 | |||
| Belt | ||||
| 26 | 1609B01802 | 18.94 | 22.92 | |
| Hexagon Socket Screw Key | ||||
| 35 | 1609BP7026 | 2.86 | 3.46 | |
| Knob | ||||
| 106 | 1609B01839 | 3.44 | 4.16 | |
| Wear Plate | ||||
| 148 | 1609B01457 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 171 | 1609BP7087 | 1.49 | 1.80 | |
| Mounting Plate | ||||
| 172 | 1609B02264 | 13.13 | 15.89 | |
| Flange Bolt | ||||
| 173 | 1609B00213 | 1.00 | 1.21 | |
| Dust Bag | ||||
| 229 | 1609BP7021 | 12.82 | 15.51 | |
| Connection Block | ||||
| 250 | 1609BP7059 | 1.49 | 1.80 | |
| Contact strap | ||||
| 272 | 1609B02601 | 2.40 | 2.90 | |
| Spring Clip | ||||
| 273 | 1609B01798 | 1.49 | 1.80 | |
| Stop | ||||
| 354 | 1609B01789 | 6.73 | 8.14 | |
| Motor Housing | ||||
| 801 | 1609B02699 | 16.79 | 20.32 | |
| Field | ||||
| 802 | 1609B02719 | 47.53 | 57.51 | |
| Armature | ||||
| 803 | 1609B02720 | 80.26 | 97.11 | |
| Power supply cord EU 2,68M 2x1mm H05VV-F | ||||
| 805 | 1609B02647 | 12.82 | 15.51 | |
| Suppression Capacitor | ||||
| 806 | 1609B02700 | 1.49 | 1.80 | |
| Nameplate | ||||
| 808 | 1609BN0161 | 2.40 | 2.90 | |
| Table | ||||
| 809 | 1609B02701 | 98.18 | 118.80 | |
| Carbon-Brush Set | ||||
| 810 | 1609BP7209 | 10.90 | 13.19 | |
| Base Unit | ||||
| 811 | 1609B02734 | 58.03 | 70.22 | |
| Mitre Fence | ||||
| 812 | 1609B02659 | 18.94 | 22.92 | |
| Knob | ||||
| 813 | 1609B02635 | 4.94 | 5.98 | |
| Rubber Bushing | ||||
| 814 | 1609B02707 | 2.08 | 2.52 | |
| Detent | ||||
| 815 | 1609B02774 | 7.46 | 9.03 | |
| Mitre Fence | ||||
| 816 | 1609B02773 | 34.82 | 42.13 | |
| Pointer | ||||
| 817 | 1609B02737 | 1.00 | 1.21 | |
| Insert | ||||
| 818 | 1609B02776 | 3.44 | 4.16 | |
| Fastening parts kit | ||||
| 819 | 1609B02738 | 1.49 | 1.80 | |
| Torsion Spring | ||||
| 821 | 1609B02777 | 14.94 | 18.08 | |
| Knob | ||||
| 822 | 1609B02715 | 1.49 | 1.80 | |
| Support Element | ||||
| 823 | 1609B02778 | 58.03 | 70.22 | |
| Laser module | ||||
| 824 | 1609B02338 | 21.30 | 25.77 | |
| Shaft | ||||
| 825 | 1609B02779 | 4.94 | 5.98 | |
| Knob | ||||
| 826 | 1609B02687 | 2.08 | 2.52 | |
| Clamp | ||||
| 827 | 1609B01797 | 27.81 | 33.65 | |
| Locking Lever | ||||
| 828 | 1609B02780 | 6.73 | 8.14 | |
| Locking Device | ||||
| 830 | 1609B02783 | 1.49 | 1.80 | |
| Locking Device | ||||
| 833 | 1609B02784 | 34.82 | 42.13 | |
| Gear | ||||
| 834 | 1609B02785 | 27.81 | 33.65 | |
| Housing | ||||
| 836 | 1609B02786 | 98.18 | 118.80 | |
| Flange | ||||
| 837 | 1609B02726 | 7.46 | 9.03 | |
| Cover | ||||
| 838 | 1609B02794 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 839 | 1609B02795 | |||
| Linkage | ||||
| 840 | 1609B01796 | 12.82 | 15.51 | |
| Set Of Handles | ||||
| 841 | 1609B02793 | 18.94 | 22.92 | |
| Power Supply | ||||
| 842 | 1609B02789 | 21.30 | 25.77 | |
| Leaf Spring | ||||
| 843 | 1609B02731 | 1.00 | 1.21 | |
| Bar | ||||
| 844 | 1609B02732 | 4.94 | 5.98 | |
| Bar | ||||
| 845 | 1609B02747 | 4.18 | 5.06 | |
| Knob | ||||
| 846 | 1609B02788 | 1.00 | 1.21 | |
| Yoke | ||||
| 847 | 1609B02787 | 71.68 | 86.73 | |
| End cap | ||||
| 848 | 1609B02632 | 4.18 | 5.06 | |
| Bearing | ||||
| 849 | 1609B02790 | 31.42 | 38.02 | |
| Carrying Handle | ||||
| 850 | 1609B02791 | 4.94 | 5.98 | |
| Extension Stand | ||||
| 851 | 1609B02750 | 9.67 | 11.70 | |
| Sliding Plate | ||||
| 852 | 1609B02736 | 3.44 | 4.16 | |
| Supporting foot | ||||
| 853 | 1609B02775 | 1.49 | 1.80 | |
| Mitre Fence | ||||
| 854 | 1609B02660 | 18.94 | 22.92 | |
| Pointer | ||||
| 855 | 1609B01818 | 1.00 | 1.21 | |
| Pointer | ||||
| 856 | 1609B02765 | 1.00 | 1.21 | |
| Pointer | ||||
| 857 | 1609B02765 | 1.00 | 1.21 | |
| Clamping Piece | ||||
| 858 | 1609B02782 | 1.00 | 1.21 | |
| Plate | ||||
| 859 | 1609B02796 | 2.86 | 3.46 | |
| Detent | ||||
| 860 | 1609B02797 | 8.35 | 10.10 | |
| Cover | ||||
| 861 | 1609B02798 | 6.73 | 8.14 | |
| Scale | ||||
| 862 | 1609B02799 | 14.94 | 18.08 | |
| Pulley | ||||
| 863 | 1609B02800 | 12.82 | 15.51 | |
| Pulley | ||||
| 864 | 1609B02801 | 2.86 | 3.46 | |
| Clamp | ||||
| 865 | 1609B02803 | 3.44 | 4.16 | |
| Clamp | ||||
| 865 | 1609B02802 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 866 | 1609B02670 | |||
| Plate | ||||
| 870 | 1609B02792 | 2.40 | 2.90 | |
