Here you will find all available parts and drawings of the 'Bosch 3603M01200 ( PCM7 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

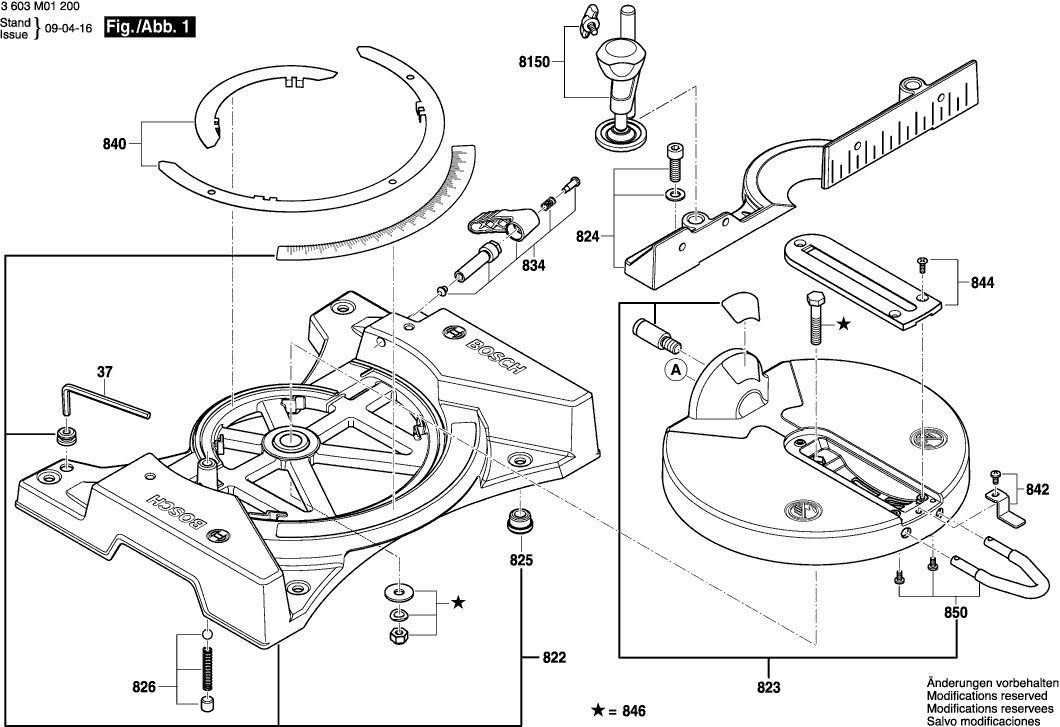

Technical drawing of model Bosch 3603M01200 ( PCM7 )
Spare parts list of model Bosch 3603M01200 ( PCM7 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Main Switch | ||||
| 4 | 1609BP7225 | 2.71 | 3.28 | |
| Motor Capacitor | ||||
| 12 | 1609BP7165 | 1.94 | 2.35 | |
| Hexagon Socket Screw Key | ||||
| 37 | 1609BP7026 | 2.24 | 2.71 | |
| Wear Plate | ||||
| 53 | 1609BP7215 | 1.70 | 2.06 | |
| Connection Block | ||||
| 129 | 1609BP7059 | 1.18 | 1.43 | |
| Cable | ||||
| 130 | 1609BP7064 | 1.18 | 1.43 | |
| Cover | ||||
| 138 | 1609BP7109 | 0.83 | 1.00 | |
| Dust Bag | ||||
| 149 | 1609BP7021 | 10.73 | 12.98 | |
| Motor Housing | ||||
| 801 | 1609BP7170 | 18.19 | 22.01 | |
| Stator 230V | ||||
| 802 | 1609BP7171 | 36.85 | 44.59 | |
| Armature 230V | ||||
| 803 | 1609BP7172 | 73.72 | 89.20 | |
| Power supply cord | ||||
| 805 | 1609BP7173 | 13.93 | 16.86 | |
| Strain-Relief Clamp | ||||
| 807 | 1609BP7174 | 1.18 | 1.43 | |
| Carbon-Brush Set | ||||
| 810 | 1609BP7209 | 8.45 | 10.22 | |
| Base | ||||
| 822 | 1609BP7175 | 60.65 | 73.39 | |
| Saw Table | ||||
| 823 | 1609BP7176 | 55.25 | 66.85 | |
| Mitre Fence | ||||
| 824 | 1609BP7177 | 18.19 | 22.01 | |
| Rubber Bushing | ||||
| 825 | 1609BP7210 | 1.18 | 1.43 | |
| Ball | ||||
| 826 | 1609BP7178 | 1.18 | 1.43 | |
| Locking Lever | ||||
| 834 | 1609BP7179 | 4.70 | 5.69 | |
| Sliding Plate | ||||
| 840 | 1609BP7180 | 4.10 | 4.96 | |
| Pointer | ||||
| 842 | 1609BP7181 | 1.18 | 1.43 | |
| Insert | ||||
| 844 | 1609BP7182 | 2.71 | 3.28 | |
| Fastening parts kit | ||||
| 846 | 1609BP7183 | 1.70 | 2.06 | |
| Handle Bar | ||||
| 850 | 1609BP7184 | 4.10 | 4.96 | |
| Shaft | ||||
| 856 | 1609BP7185 | 4.70 | 5.69 | |
| Pointer | ||||
| 861 | 1609BP7186 | 1.18 | 1.43 | |
| Lever | ||||
| 867 | 1609BP7187 | 6.54 | 7.91 | |
| Detent Pin | ||||
| 869 | 1609BP7188 | 2.24 | 2.71 | |
| Support Element | ||||
| 871 | 1609BP7189 | 26.84 | 32.48 | |
| Laser module | ||||
| 873 | 1609BP7190 | 13.93 | 16.86 | |
| Torsion Spring | ||||
| 884 | 1609BP7191 | 12.41 | 15.02 | |
| Clamping Piece | ||||
| 885 | 1609BP7192 | 1.94 | 2.35 | |
| Locking Device | ||||
| 892 | 1609BP7193 | 4.70 | 5.69 | |
| Tapping Screw | ||||
| 896 | 1609BP7211 | 1.18 | 1.43 | |
| Cover | ||||
| 897 | 1609BP7212 | 1.18 | 1.43 | |
| Locking Device | ||||
| 899 | 1609BP7194 | 4.70 | 5.69 | |
| Baffle | ||||
| 8102 | 1609BP7195 | 1.94 | 2.35 | |
| Housing | ||||
| 8103 | 1609BP7196 | 40.61 | 49.14 | |
| Gear | ||||
| 8110 | 1609BP7197 | 18.19 | 22.01 | |
| No longer available, no replacement | ||||
| 8121 | 1609BP7198 | |||
| Safety Cover | ||||
| 8123 | 1609BP7199 | 15.71 | 19.01 | |
| Trigger | ||||
| 8126 | 1609BP7200 | 1.18 | 1.43 | |
| Set Of Handles | ||||
| 8127 | 1609BP7219 | 13.93 | 16.86 | |
| No longer available, no replacement | ||||
| 8142 | 1609BP7203 | |||
| Linkage | ||||
| 8146 | 1609BP7204 | 4.70 | 5.69 | |
| Clamp | ||||
| 8150 | 1609BP7164 | 6.54 | 7.91 | |
