Here you will find all available parts and drawings of the 'Bosch 3603BA1000 ( PBS75A )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

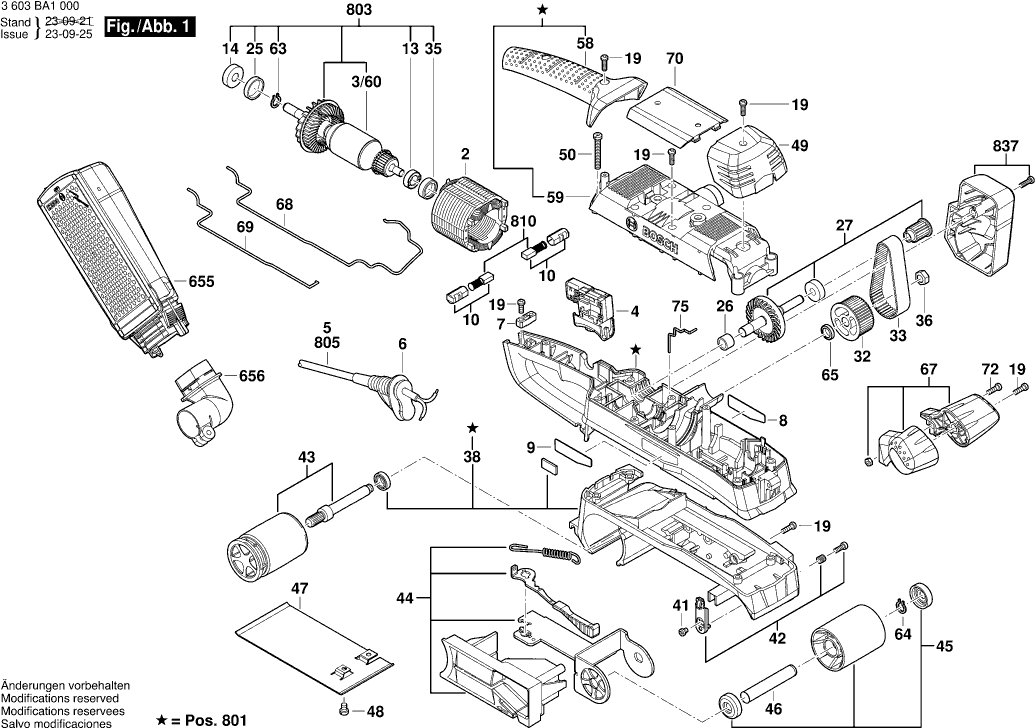

Technical drawing of model Bosch 3603BA1000 ( PBS75A )
Spare parts list of model Bosch 3603BA1000 ( PBS75A )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 230-240V | ||||
| 2 | 1619P08315 | 20.42 | 24.71 | |
| Fan | ||||
| 3/60 | 1619P08441 | 1.94 | 2.35 | |
| On-Off Switch | ||||
| 4 | 1619X06336 | 8.45 | 10.22 | |
| Grommet | ||||
| 6 | 1619X06341 | 1.70 | 2.06 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Nameplate | ||||
| 8 | 1619P13001 | 0.83 | 1.00 | |
| Manufacturer's nameplate PBS 75 A | ||||
| 9 | 1619X06962 | 1.94 | 2.35 | |
| Carbon Brush Holder | ||||
| 10 | 1619X06663 | 2.71 | 3.28 | |
| groove ball bearing | ||||
| 13 | 1619X06535 | 2.71 | 3.28 | |
| groove ball bearing 9x24x7 | ||||
| 14 | 1619X07386 | 4.10 | 4.96 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Intermediate Ring | ||||
| 25 | 1619X06345 | 0.83 | 1.00 | |
| Needle-Roller Bearing Ø14 MM | ||||
| 26 | 2600910001 | 3.31 | 4.01 | |
| Gear Shaft | ||||
| 27 | 1619X06662 | 13.93 | 16.86 | |
| Toothed Belt Wheel | ||||
| 32 | 1619X06349 | 8.45 | 10.22 | |
| Toothed Belt Z=75 | ||||
| 33 | 2604736010 | 8.45 | 10.22 | |
| Intermediate Ring | ||||
| 35 | 1619X06351 | 0.83 | 1.00 | |
| Hex Nut | ||||
| 36 | 1619X06352 | 2.24 | 2.71 | |
| Housing Base | ||||
| 38 | 1619X06665 | 36.85 | 44.59 | |
| Bolt | ||||
| 41 | 1619X06903 | 1.94 | 2.35 | |
| Lever Arm | ||||
| 42 | 1619X06673 | 25.28 | 30.59 | |
| Drive Roller | ||||
| 43 | 1619X06660 | 15.71 | 19.01 | |
| Adjusting Device | ||||
| 44 | 1619X06963 | 10.73 | 12.98 | |
| Roller | ||||
| 45 | 1619X06671 | 13.93 | 16.86 | |
| Axle | ||||
| 46 | 1619X06360 | 4.10 | 4.96 | |
| Base Plate | ||||
| 47 | 1619X06361 | 5.83 | 7.05 | |
| Socket head cap screw | ||||
| 48 | 1619X06538 | 1.18 | 1.43 | |
| Brush-Cover | ||||
| 49 | 1619X06898 | 1.94 | 2.35 | |
| Socket head cap screw | ||||
| 50 | 1619X06539 | 1.18 | 1.43 | |
| Handle Cover | ||||
| 58 | 1619X06366 | 5.33 | 6.45 | |
| Housing | ||||
| 59 | 1619X06339 | 6.54 | 7.91 | |
| Seal Ring | ||||
| 63 | 1619X06368 | 4.10 | 4.96 | |
| Clip | ||||
| 64 | 2610923854 | 0.83 | 1.00 | |
| Sintered-Metal Bushing | ||||
| 65 | 1619X06363 | 0.83 | 1.00 | |
| Handle | ||||
| 67 | 1619X06666 | 5.83 | 7.05 | |
| Lead WHITE | ||||
| 68 | 1619X06542 | 0.83 | 1.00 | |
| Lead | ||||
| 69 | 1619X06543 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 70 | 1619X06372 | |||
| Socket head cap screw | ||||
| 72 | 1619X06374 | 0.83 | 1.00 | |
| wire bow | ||||
| 75 | 1619X06375 | 1.18 | 1.43 | |
| Dust Chamber | ||||
| 655 | 1619X06377 | 9.53 | 11.53 | |
| Fitting | ||||
| 656 | 1619X08691 | 4.70 | 5.69 | |
| Housing Set | ||||
| 801 | 1619X07525 | 44.82 | 54.23 | |
| Armature set | ||||
| 803 | 1619P12322 | 44.82 | 54.23 | |
| Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F | ||||
| 805 | 1607000388 | 9.53 | 11.53 | |
| Carbon-Brush Set | ||||
| 810 | 1619X07528 | 6.54 | 7.91 | |
| Covering hood | ||||
| 837 | 1619X07529 | 3.31 | 4.01 | |
