Here you will find all available parts and drawings of the 'Bosch 0603270203 (PBS75A)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

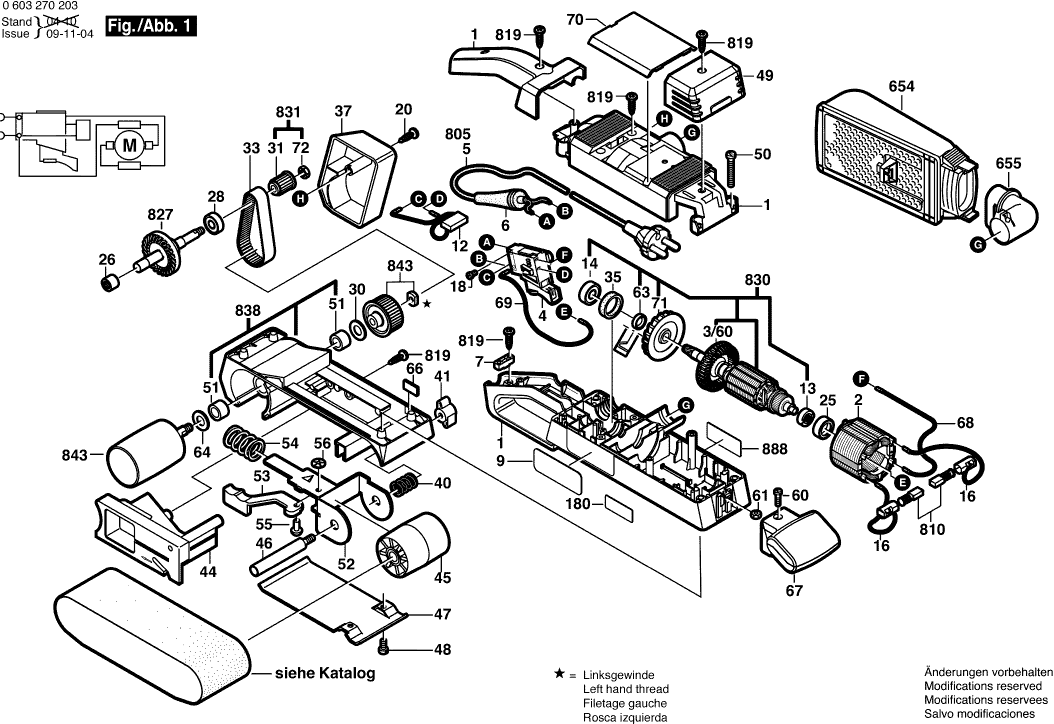

Technical drawing of model Bosch 0603270203 (PBS75A)
Spare parts list of model Bosch 0603270203 (PBS75A)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 2605104548 | |||
| Field | ||||
| 2 | 2604220480 | 20.39 | 24.67 | |
| Fan | ||||
| 3/60 | 2606610049 | 2.08 | 2.52 | |
| Switch | ||||
| 4 | 2607200084 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2601118959 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 12 | 1607328028 | |||
| Flanged Bearing | ||||
| 13 | 2605805008 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 14 | 1610905011 | 13.13 | 15.89 | |
| Brush Holder | ||||
| 16 | 2604449026 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 20 | 2603490023 | 1.00 | 1.21 | |
| Intermediate Ring | ||||
| 25 | 1600502011 | 2.40 | 2.90 | |
| Needle-Roller Bearing | ||||
| 26 | 2600910001 | 4.18 | 5.06 | |
| groove ball bearing | ||||
| 28 | 1900905041 | 12.82 | 15.51 | |
| Shim | ||||
| 30 | 2600100099 | 2.08 | 2.52 | |
| Toothed Belt Wheel | ||||
| 31 | 2606625037 | 2.18 | 2.64 | |
| Toothed Belt | ||||
| 33 | 2604736010 | 9.47 | 11.46 | |
| Intermediate Ring | ||||
| 35 | 1600206024 | 1.49 | 1.80 | |
| Covering hood | ||||
| 37 | 1605510150 | 4.18 | 5.06 | |
| Compression Spring | ||||
| 40 | 2604630002 | 1.49 | 1.80 | |
| Wing Nut | ||||
| 41 | 2603339005 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 44 | 1608005003 | |||
| Roller | ||||
| 45 | 2606625908 | 37.50 | 45.38 | |
| Axle | ||||
| 46 | 1603521027 | 9.67 | 11.70 | |
| Base Plate | ||||
| 47 | 2601098040 | 7.46 | 9.03 | |
| Socket head cap screw | ||||
| 48 | 2603410045 | 2.08 | 2.52 | |
| Brush-Cover | ||||
| 49 | 1605500122 | 5.81 | 7.03 | |
| Socket head cap screw | ||||
| 50 | 2910011170 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 51 | 1900301018 | |||
| Bearing Bracket | ||||
| 52 | 1605807013 | 8.35 | 10.10 | |
| Tensioning Lever | ||||
| 53 | 1602098006 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 54 | 1604619017 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 55 | 2917030110 | |||
| Locking washer | ||||
| 56 | 1600146001 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 60 | 2910021126 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 61 | 2915011005 | 1.00 | 1.21 | |
| Seal Ring | ||||
| 63 | 2600290033 | 3.44 | 4.16 | |
| Shim | ||||
| 64 | 1600101618 | 2.40 | 2.90 | |
| Ceramic Plate | ||||
| 66 | 1601010007 | 2.40 | 2.90 | |
| Handle | ||||
| 67 | 1605133036 | 7.46 | 9.03 | |
| Connecting Cable | ||||
| 68 | 1604438018 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 69 | 1604448000 | 2.08 | 2.52 | |
| Housing Cover | ||||
| 70 | 1605500120 | 2.40 | 2.90 | |
| Fan | ||||
| 71 | 1606610120 | 2.40 | 2.90 | |
| Hex Nut | ||||
| 72 | 2603300015 | 1.00 | 1.21 | |
| Dust Chamber | ||||
| 654 | 1619X06377 | 11.37 | 13.76 | |
| Fitting | ||||
| 655 | 2605702038 | 4.58 | 5.54 | |
| Handle | ||||
| 800 | 1605133036 | 7.46 | 9.03 | |
| Power supply cord | ||||
| 805 | 1607000388 | 11.37 | 13.76 | |
| Carbon-Brush Set | ||||
| 810 | 2604321905 | 9.67 | 11.70 | |
| Tapping Screw | ||||
| 819 | 2910611020 | 1.49 | 1.80 | |
| Crown Gear | ||||
| 827 | 2606333900 | 18.94 | 22.92 | |
| Armature | ||||
| 830 | 2604010935 | 64.67 | 78.25 | |
| Toothed Belt Wheel | ||||
| 831 | 2606625907 | 2.86 | 3.46 | |
| Housing | ||||
| 838 | 2605190900 | 52.45 | 63.46 | |
| Roller | ||||
| 843 | 2606625905 | 22.88 | 27.68 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
