Here you will find all available parts and drawings of the 'Bosch 0603391003 ( PBS7A )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

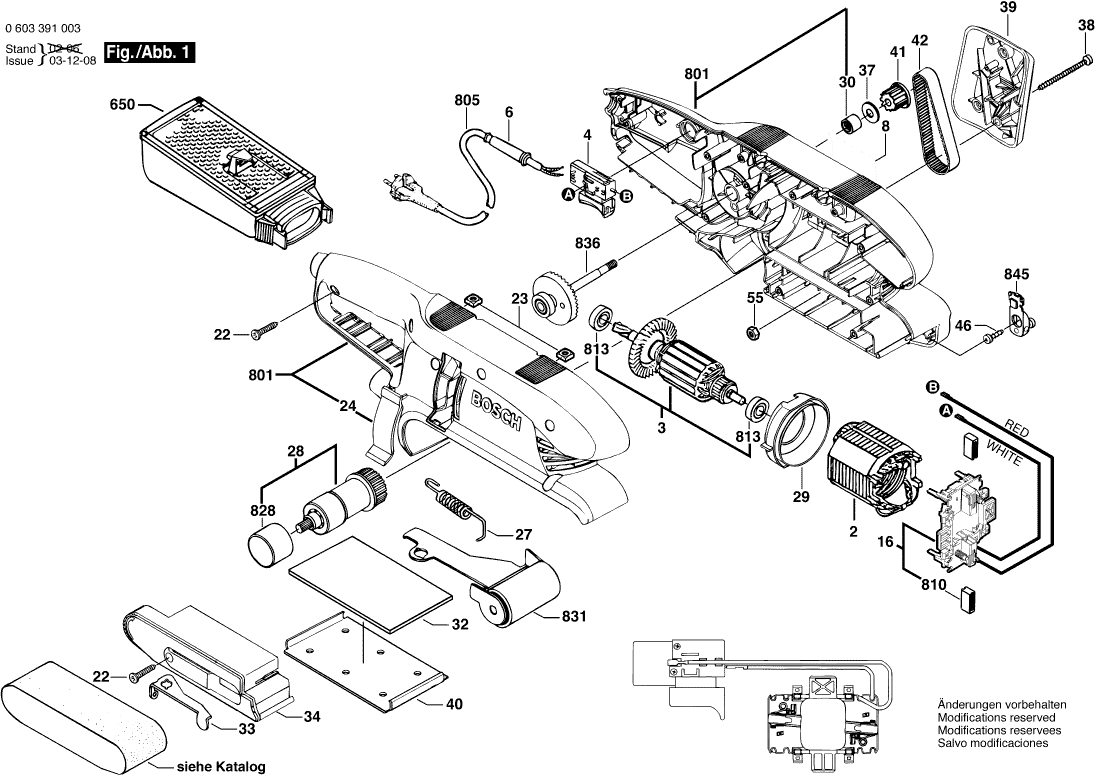

Technical drawing of model Bosch 0603391003 ( PBS7A )
Spare parts list of model Bosch 0603391003 ( PBS7A )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 230V | ||||
| 2 | 2610390992 | 13.93 | 16.86 | |
| No longer available, no replacement | ||||
| 3 | 2610391052 | |||
| Switch | ||||
| 4 | 2610390848 | 8.45 | 10.22 | |
| Grommet Ø6,5-Ø6,9x95 MM | ||||
| 6 | 2600703012 | 2.24 | 2.71 | |
| Nameplate | ||||
| 8 | 2610389977 | 1.18 | 1.43 | |
| Brush Holder | ||||
| 16 | 2610391288 | 8.45 | 10.22 | |
| Torx Oval-Head Screw T20-8x19 MM | ||||
| 22 | 2610374919 | 0.83 | 1.00 | |
| Square Nut | ||||
| 23 | 2610385585 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 24 | 2610389694 | |||
| Spring | ||||
| 27 | 2610392308 | 1.18 | 1.43 | |
| Pulley | ||||
| 28 | 2609000812 | 13.93 | 16.86 | |
| Air Guide Plate | ||||
| 29 | 2610389927 | 2.24 | 2.71 | |
| Needle bearing | ||||
| 30 | 2610377223 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 32 | 2610389697 | |||
| Lever | ||||
| 33 | 2610390971 | 2.24 | 2.71 | |
| Covering hood | ||||
| 34 | 2610387965 | 3.31 | 4.01 | |
| Disc Spring | ||||
| 37 | 2610391223 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 8x60 | ||||
| 38 | 2610374994 | 1.18 | 1.43 | |
| Belt Cover | ||||
| 39 | 2610389693 | 4.10 | 4.96 | |
| Support | ||||
| 40 | 2610389698 | 5.83 | 7.05 | |
| Toothed Belt Wheel | ||||
| 41 | 2610387991 | 1.94 | 2.35 | |
| Toothed Belt | ||||
| 42 | 2610387984 | 5.33 | 6.45 | |
| Torx Oval-Head Screw 8x16 | ||||
| 46 | 2610374916 | 1.18 | 1.43 | |
| Nut M6 | ||||
| 55 | 2610061550 | 1.18 | 1.43 | |
| Dust Chamber | ||||
| 650 | 1619X06377 | 9.53 | 11.53 | |
| Housing Set | ||||
| 801 | 2610391451 | 36.85 | 44.59 | |
| No longer available, no replacement | ||||
| 805 | 2610362954 | |||
| Carbon-Brush Set | ||||
| 810 | 2610391290 | 6.54 | 7.91 | |
| No longer available, no replacement | ||||
| 813 | 2610376473 | |||
| Rubber Ring | ||||
| 828 | 2610391336 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 831 | 2610376140 | |||
| No longer available, no replacement | ||||
| 836 | 2610387990 | |||
| Lever Arm | ||||
| 845 | 2610392590 | 5.83 | 7.05 | |
