Here you will find all available parts and drawings of the 'Bosch 0603933303 ( PBM9,6VSP-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

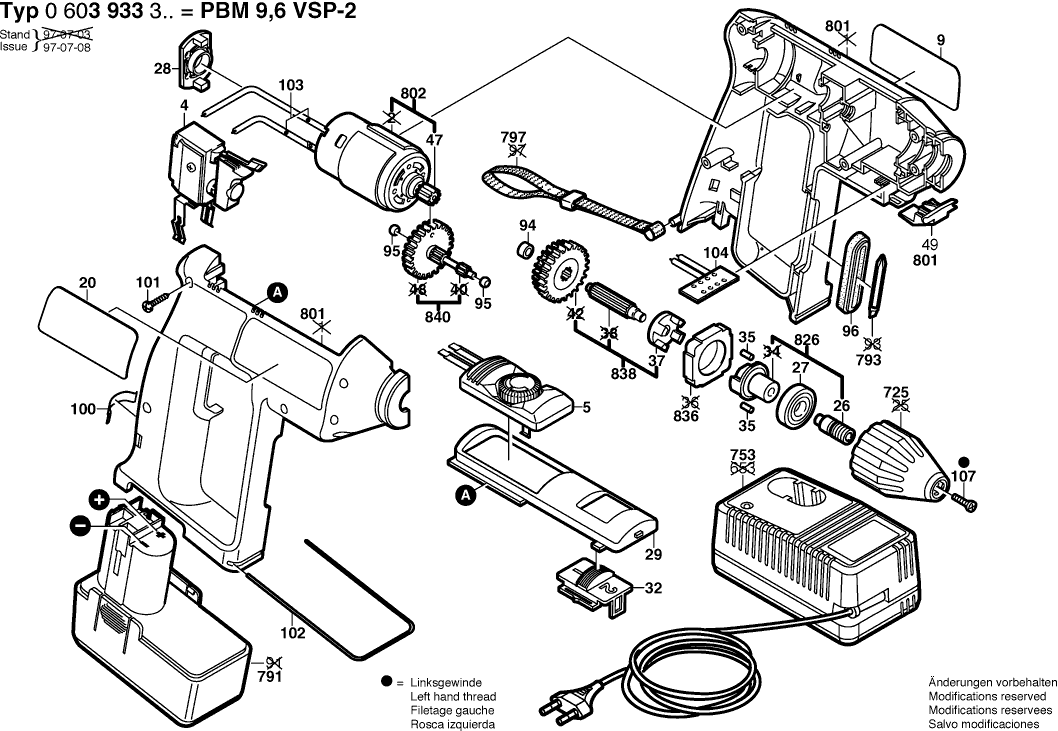

Technical drawing of model Bosch 0603933303 ( PBM9,6VSP-2 )
Spare parts list of model Bosch 0603933303 ( PBM9,6VSP-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| On-Off Switch | ||||
| 4 | 2607200320 | 60.65 | 73.39 | |
| Torque Control | ||||
| 5 | 2607233030 | 13.93 | 16.86 | |
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601118403 | 1.70 | 2.06 | |
| Reference Plate SHADOW SIDE | ||||
| 20 | 2601118404 | 1.70 | 2.06 | |
| groove ball bearing | ||||
| 27 | 1900905127 | 22.36 | 27.06 | |
| Adapter | ||||
| 28 | 2605719006 | 1.18 | 1.43 | |
| Insert Piece BLACK | ||||
| 29 | 2605510116 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 32 | 2601099032 | |||
| Roller Body | ||||
| 35 | 2602329024 | 1.18 | 1.43 | |
| Carrier | ||||
| 37 | 2606440002 | 2.24 | 2.71 | |
| Pinion Z=11 | ||||
| 47 | 2606316112 | 3.31 | 4.01 | |
| Insert Piece BLACK | ||||
| 49 | 2605510117 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 94 | 2600301011 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 95 | 2600302002 | 1.18 | 1.43 | |
| Rubber-Inter Calation | ||||
| 96 | 2600290022 | 2.24 | 2.71 | |
| Clamp Spring | ||||
| 100 | 2601322016 | 1.70 | 2.06 | |
| Tapping Screw DIN7981-ST3,9x19-F-Z | ||||
| 101 | 2912401420 | 0.83 | 1.00 | |
| Retaining Bracket | ||||
| 102 | 2601329041 | 1.18 | 1.43 | |
| Connecting Cable L=79 MM WHITE | ||||
| 103 | 2604413004 | 1.18 | 1.43 | |
| Contact retainer | ||||
| 104 | 2608018004 | 4.70 | 5.69 | |
| Countersunk-Head Screw | ||||
| 107 | 2603421227 | 1.18 | 1.43 | |
| Keyless Chuck | ||||
| 725 | 2608572214 | 40.61 | 49.14 | |
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 753 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger AUS 240/7,2-14,4V, 30 MIN. | ||||
| 753 | 2607224705 | 130.32 | 157.69 | |
| Fast Charger USA 120/7,2-24V, 1h | ||||
| 753 | 2607224431 | 130.32 | 157.69 | |
| Fast Charger EU 230/7,2-14,4V, 30 MIN. | ||||
| 753 | 2607224701 | 101.94 | 123.35 | |
| Fast Charger GB 230/7,2-14,4V, 30 MIN. | ||||
| 753 | 2607224703 | 101.94 | 123.35 | |
| Fast Charger GB 230/7,2-24V, 1h | ||||
| 753 | 2607224427 | 91.56 | 110.79 | |
| Fast Charger AUS 240/7,2-14,4V, 1h | ||||
| 753 | 2607224443 | 81.47 | 98.58 | |
| Slide-In Accu Package 9,6V, 1,5 Ah, NiCd | ||||
| 791 | 2607336143 | 101.94 | 123.35 | |
| Screwdriver Blade 6 MM | ||||
| 793 | 1609200147 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 797 | 2601398009 | |||
| Housing Section GREEN | ||||
| 801 | 2605104855 | 12.41 | 15.02 | |
| DC motor 9,6V | ||||
| 802 | 2607022923 | 15.71 | 19.01 | |
| Drilling Spindle 3/8" | ||||
| 826 | 2606135917 | 15.71 | 19.01 | |
| Splined Shaft | ||||
| 838 | 2606309914 | 8.45 | 10.22 | |
| Toothed Shaft Z=10/19/81 | ||||
| 840 | 1609340005 | 12.41 | 15.02 | |
| No information available, not orderable | ||||
| 899 | 0603933327 | |||
