Here you will find all available parts and drawings of the 'Bosch 0603933860 ( PBM9,6VE-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

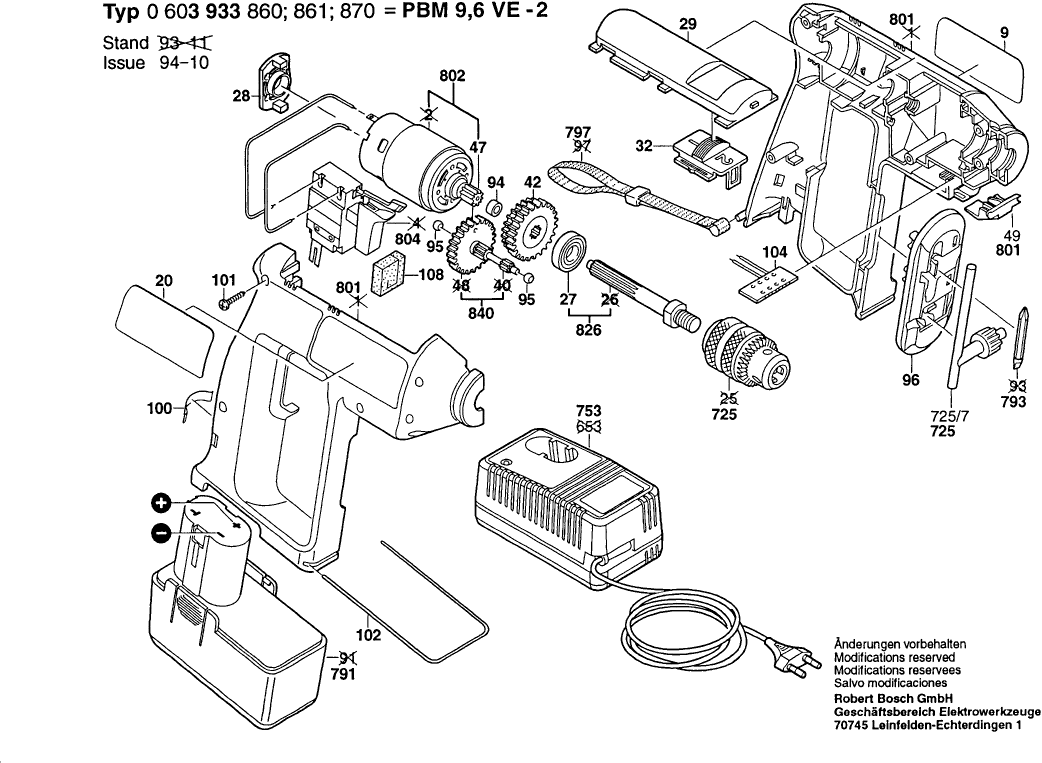

Technical drawing of model Bosch 0603933860 ( PBM9,6VE-2 )
Spare parts list of model Bosch 0603933860 ( PBM9,6VE-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601118399 | 1.70 | 2.06 | |
| Reference Plate SHADOW SIDE | ||||
| 20 | 2601118400 | 1.70 | 2.06 | |
| groove ball bearing | ||||
| 27 | 1900905127 | 22.36 | 27.06 | |
| Adapter | ||||
| 28 | 2605719006 | 1.18 | 1.43 | |
| Insert Piece BLACK | ||||
| 29 | 2605510147 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 32 | 2601099032 | |||
| Cylindrical Gear Z=58/67 | ||||
| 42 | 1609340007 | 11.88 | 14.37 | |
| Pinion Z=11 | ||||
| 47 | 2606316112 | 3.31 | 4.01 | |
| Insert Piece BLACK | ||||
| 49 | 2605510117 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 94 | 2600301011 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 95 | 2600302002 | 1.18 | 1.43 | |
| Key Holder | ||||
| 96 | 2608040067 | 1.94 | 2.35 | |
| Clamp Spring | ||||
| 100 | 2601322016 | 1.70 | 2.06 | |
| Tapping Screw DIN7981-ST3,9x19-F-Z | ||||
| 101 | 2912401420 | 0.83 | 1.00 | |
| Retaining Bracket | ||||
| 102 | 2601329041 | 1.18 | 1.43 | |
| Contact retainer | ||||
| 104 | 2608018004 | 4.70 | 5.69 | |
| No longer available, no replacement | ||||
| 108 | 2601010038 | |||
| No longer available, no replacement | ||||
| 725 | 2608571032 | |||
| No information available, not orderable | ||||
| 725/7 | 1607950053 | |||
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 753 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger USA 120/7,2-24V, 1h | ||||
| 753 | 2607224431 | 130.32 | 157.69 | |
| Fast Charger AUS 240/7,2-14,4V, 30 MIN. | ||||
| 753 | 2607224705 | 130.32 | 157.69 | |
| Fast Charger EU 230/7,2-14,4V, 30 MIN. | ||||
| 753 | 2607224701 | 101.94 | 123.35 | |
| Fast Charger AUS 240/7,2-14,4V, 1h | ||||
| 753 | 2607224443 | 81.47 | 98.58 | |
| Slide-In Accu Package 9,6V, 1,5 Ah, NiCd | ||||
| 791 | 2607336143 | 101.94 | 123.35 | |
| Screwdriver Blade 6 MM | ||||
| 793 | 1609200147 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 797 | 2601398009 | |||
| Housing Section GREEN | ||||
| 801 | 2605104855 | 12.41 | 15.02 | |
| DC motor 9,6V | ||||
| 802 | 2607022923 | 15.71 | 19.01 | |
| No longer available, no replacement | ||||
| 804 | 2607200309 | |||
| Drilling Spindle 3/8" | ||||
| 826 | 2606309915 | 13.93 | 16.86 | |
| Toothed Shaft Z=10/19/81 | ||||
| 840 | 1609340005 | 12.41 | 15.02 | |
| No information available, not orderable | ||||
| 899 | 0603933870 | |||
