Here you will find all available parts and drawings of the 'Bosch 0603933203 (PBM7,2VS-1)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

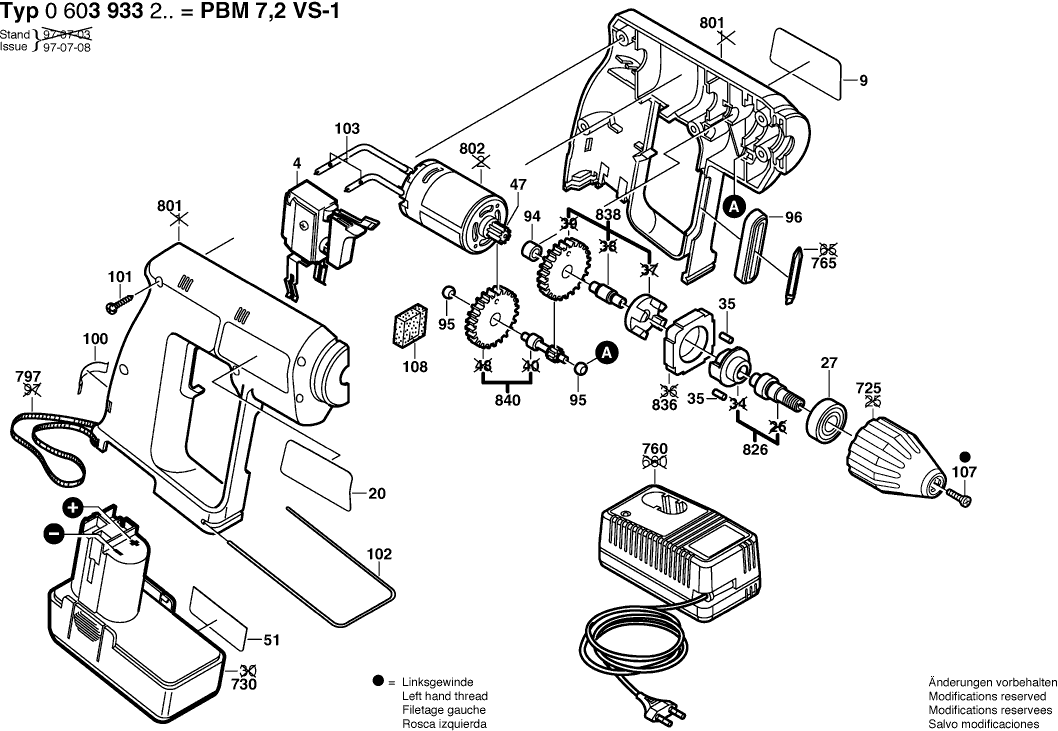

Technical drawing of model Bosch 0603933203 (PBM7,2VS-1)
Spare parts list of model Bosch 0603933203 (PBM7,2VS-1)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| On-Off Switch | ||||
| 4 | 2607200317 | 20.42 | 24.71 | |
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601118326 | 3.31 | 4.01 | |
| Reference Plate SHADOW SIDE | ||||
| 20 | 2601118327 | 3.31 | 4.01 | |
| groove ball bearing | ||||
| 27 | 1900905127 | 27.81 | 33.65 | |
| Roller Body | ||||
| 35 | 2602329024 | 1.49 | 1.80 | |
| Pinion Z=14 | ||||
| 47 | 2606316142 | 3.04 | 3.68 | |
| Sticker RECHARGABLE BATERY | ||||
| 51 | 2601118320 | 3.31 | 4.01 | |
| Sintered-Metal Bushing | ||||
| 94 | 2600301011 | 1.49 | 1.80 | |
| Sintered-Metal Bushing | ||||
| 95 | 2600302002 | 1.49 | 1.80 | |
| Rubber-Inter Calation | ||||
| 96 | 2600290022 | 2.86 | 3.46 | |
| Clamp Spring | ||||
| 100 | 2601322016 | 2.08 | 2.52 | |
| Screw | ||||
| 101 | 2603490022 | 1.00 | 1.21 | |
| Retaining Bracket | ||||
| 102 | 2601329041 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 103 | 2604413004 | 1.49 | 1.80 | |
| Countersunk-Head Screw | ||||
| 107 | 2603421227 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 108 | 2601010038 | |||
| Keyless Chuck | ||||
| 725 | 2608572214 | 47.53 | 57.51 | |
| Slide-In Accu Package 7,2V,1,5Ah,NiCd | ||||
| 730 | 2607336141 | 55.25 | 66.85 | |
| Fast Charger | ||||
| 760 | 2607224705 | 155.51 | 188.17 | |
| Fast Charger | ||||
| 760 | 2607224425 | 155.51 | 188.17 | |
| Fast Charger | ||||
| 760 | 2607224431 | 155.51 | 188.17 | |
| Fast Charger | ||||
| 760 | 2607224701 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 760 | 2607224703 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 760 | 2607224427 | 110.30 | 133.46 | |
| Fast Charger | ||||
| 760 | 2607224443 | 98.18 | 118.80 | |
| Screwdriver Blade | ||||
| 765 | 1609200147 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 797 | 2601398010 | |||
| Housing Section GREEN | ||||
| 801 | 2605104860 | 10.73 | 12.98 | |
| DC motor 7,2V | ||||
| 802 | 2607022913 | 26.84 | 32.48 | |
| Drilling Spindle | ||||
| 826 | 2606135917 | 17.22 | 20.84 | |
| Jack Shaft Z= 65 | ||||
| 838 | 2606100915 | 12.41 | 15.02 | |
| Intmd. Transmission Hsg Z= 12/63 | ||||
| 840 | 2606308916 | 13.93 | 16.86 | |
| No information available, not orderable | ||||
| 899 | 0603933223 | |||
