Here you will find all available parts and drawings of the 'Bosch 0603921023 ( PBM7,2V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

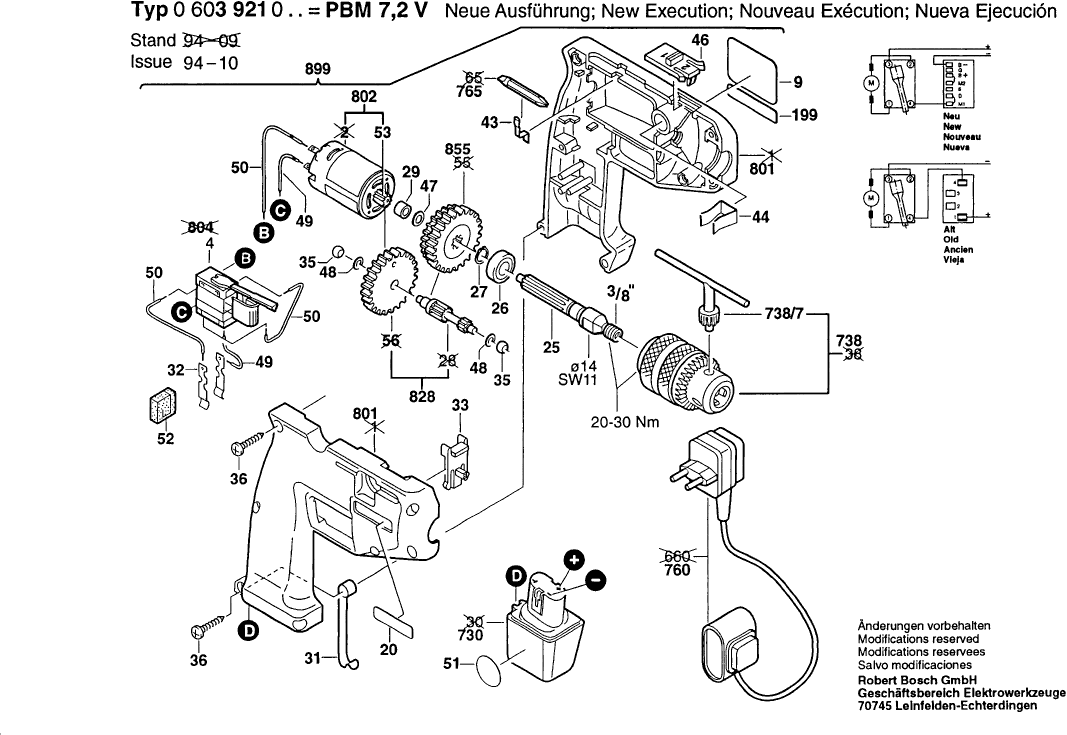

Technical drawing of model Bosch 0603921023 ( PBM7,2V )
Spare parts list of model Bosch 0603921023 ( PBM7,2V )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| On-Off Switch | ||||
| 4 | 2607200294 | 11.88 | 14.37 | |
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601118256 | 2.71 | 3.28 | |
| Sticker SHADOW SIDE | ||||
| 20 | 2601110606 | 1.18 | 1.43 | |
| Drilling Spindle 3/8" | ||||
| 25 | 2606135018 | 8.45 | 10.22 | |
| groove ball bearing | ||||
| 26 | 1900905127 | 22.36 | 27.06 | |
| Spring retaining ring DIN 471-10x1MM-FSt | ||||
| 27 | 2916650001 | 1.94 | 2.35 | |
| Sintered-Metal Bushing | ||||
| 29 | 2600301011 | 1.18 | 1.43 | |
| Holding Spring Ø8,7 MM | ||||
| 31 | 2601251002 | 1.18 | 1.43 | |
| Contact Spring | ||||
| 32 | 2601324012 | 1.18 | 1.43 | |
| Locking Lever 36,5 MM | ||||
| 33 | 2601099026 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 35 | 2600302002 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 36 | 2603490022 | 0.83 | 1.00 | |
| Holding Spring | ||||
| 43 | 2601250002 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 44 | 2601250003 | |||
| Adjusting Slide BLACK | ||||
| 46 | 2601099027 | 1.18 | 1.43 | |
| Shim 0,3 MM THICK | ||||
| 48 | 2600100636 | 1.18 | 1.43 | |
| Connecting Cable L=52 MM WHITE | ||||
| 49 | 2604413005 | 1.18 | 1.43 | |
| Connecting Cable L=79 MM WHITE | ||||
| 50 | 2604413004 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 51 | 1601110265 | |||
| No longer available, no replacement | ||||
| 52 | 2601010038 | |||
| Pinion Z=11 | ||||
| 53 | 2606316112 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 199 | 1601110265 | |||
| No longer available, no replacement | ||||
| 730 | 2607300001 | |||
| No information available, not orderable | ||||
| 738 | 1608571066 | |||
| No information available, not orderable | ||||
| 738/7 | 1607950042 | |||
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 760 | 2607224425 | 130.32 | 157.69 | |
| Screwdriver Blade 6 MM | ||||
| 765 | 1609200147 | 2.71 | 3.28 | |
| Housing Section GREEN | ||||
| 801 | 2605104998 | 13.93 | 16.86 | |
| DC motor 7,2V | ||||
| 802 | 1609340003 | 29.75 | 36.00 | |
| Toothed Shaft Z=10/19/81 | ||||
| 828 | 1609340005 | 12.41 | 15.02 | |
| Cylindrical Gear Z=58/67 | ||||
| 855 | 1609340007 | 11.88 | 14.37 | |
