Here you will find all available parts and drawings of the 'Bosch 0603924403 ( PBM4,8V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

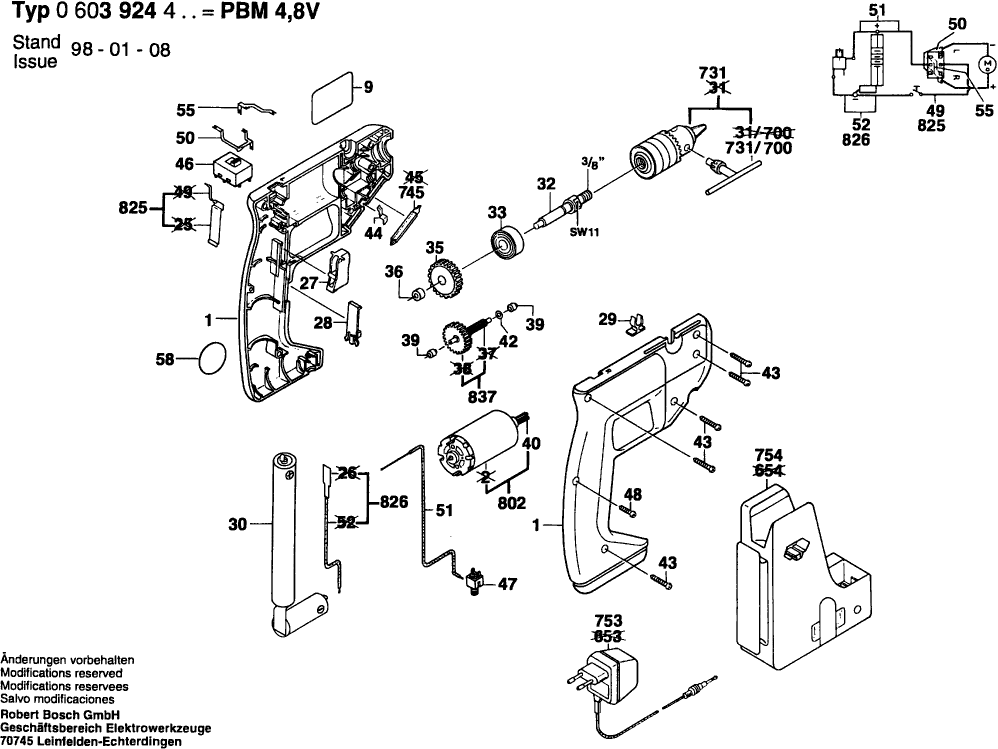

Technical drawing of model Bosch 0603924403 ( PBM4,8V )
Spare parts list of model Bosch 0603924403 ( PBM4,8V )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section GREEN | ||||
| 1 | 2605104253 | 8.45 | 10.22 | |
| Manufacturer's nameplate | ||||
| 9 | 2601117022 | 0.83 | 1.00 | |
| Control Lever | ||||
| 27 | 2603231012 | 1.18 | 1.43 | |
| Rejection Slide | ||||
| 28 | 2601099010 | 1.18 | 1.43 | |
| Key Holder | ||||
| 29 | 2608040029 | 1.18 | 1.43 | |
| Accumulator Battery 4,8V, 1,2Ah, NiCd | ||||
| 30 | 2607335006 | 40.61 | 49.14 | |
| Drilling Spindle 3/8", SW 11 | ||||
| 32 | 2606135022 | 4.10 | 4.96 | |
| groove ball bearing | ||||
| 33 | 1900905127 | 22.36 | 27.06 | |
| Cylindrical Gear Z=64 | ||||
| 35 | 2606316114 | 5.83 | 7.05 | |
| Sintered-Metal Bushing | ||||
| 36 | 2600301011 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 39 | 2600302002 | 1.18 | 1.43 | |
| Pinion Z=11 | ||||
| 40 | 2606316112 | 3.31 | 4.01 | |
| Shim 0,3 MM THICK | ||||
| 42 | 2600100636 | 1.18 | 1.43 | |
| Cross Recessed-Head Screw 3x17 MM | ||||
| 43 | 2603435023 | 1.18 | 1.43 | |
| Holding Spring | ||||
| 44 | 2601250002 | 1.18 | 1.43 | |
| Change-Over Switch | ||||
| 46 | 2607200214 | 5.33 | 6.45 | |
| No longer available, no replacement | ||||
| 47 | 2604483001 | |||
| Tapping Screw DIN7981-ST2,9x13-C-Z | ||||
| 48 | 2912401006 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 49 | 2604449037 | |||
| Bus Bar | ||||
| 50 | 2601390000 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 51 | 2604413014 | |||
| Connecting Cable | ||||
| 52 | 2604413012 | 0.83 | 1.00 | |
| Bus Bar | ||||
| 55 | 2601390001 | 1.18 | 1.43 | |
| Sticker | ||||
| 58 | 2601110999 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 731 | 1608571066 | |||
| No information available, not orderable | ||||
| 731/700 | 1607950042 | |||
| Screwdriver Blade 6 MM | ||||
| 745 | 1609200147 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 753 | 2607224316 | |||
| No longer available, no replacement | ||||
| 754 | 2608005030 | |||
| DC motor 4,8V | ||||
| 802 | 2607022905 | 15.71 | 19.01 | |
| No longer available, no replacement | ||||
| 825 | 2604449037 | |||
| No longer available, no replacement | ||||
| 826 | 2604449049 | |||
| Toothed Shaft Z=58/11 | ||||
| 837 | 2606100913 | 12.41 | 15.02 | |
