Here you will find all available parts and drawings of the 'Bosch 0611227999 (PBH380)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

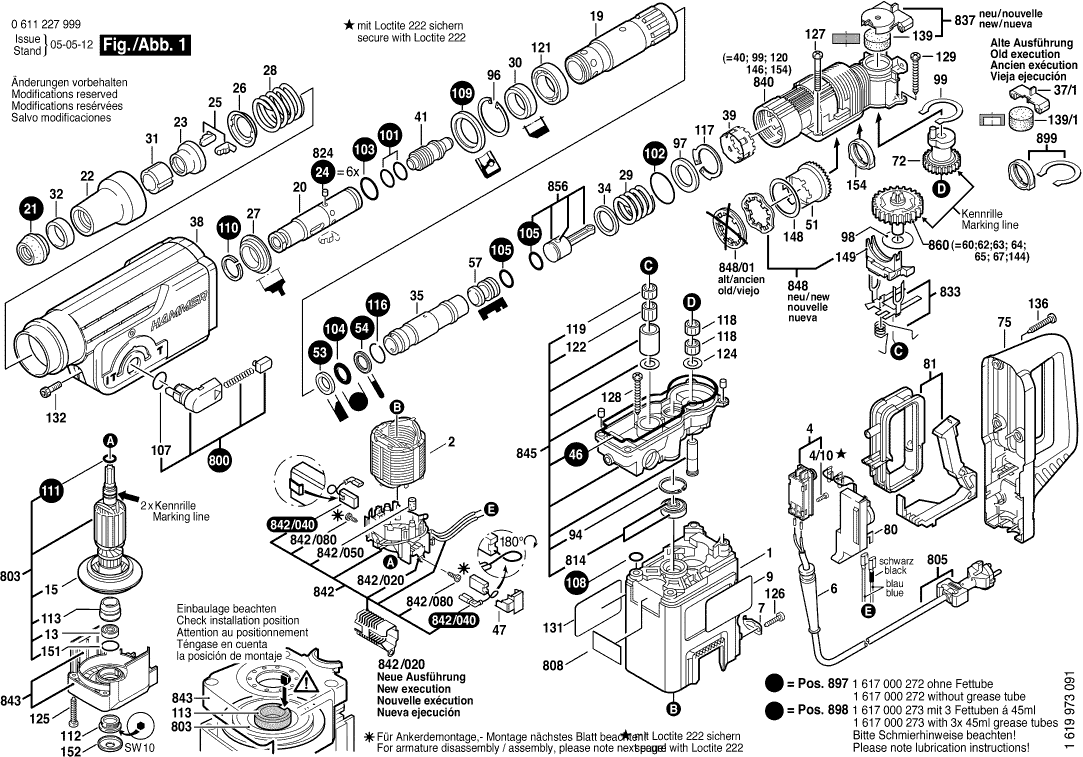

Technical drawing of model Bosch 0611227999 (PBH380)
Spare parts list of model Bosch 0611227999 (PBH380)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1615102142 | |||
| Field | ||||
| 2 | 1604220343 | 34.82 | 42.13 | |
| Switch | ||||
| 4 | 1617200048 | 16.79 | 20.32 | |
| Socket head cap screw | ||||
| 4/10 | 2910011088 | 1.00 | 1.21 | |
| Grommet | ||||
| 6 | 1610703053 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302018 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 1611110672 | 2.38 | 2.88 | |
| groove ball bearing | ||||
| 13 | 1610900025 | 13.90 | 16.82 | |
| No longer available, no replacement | ||||
| 15 | 1616610071 | |||
| Guide Tube | ||||
| 19 | 1615806121 | 89.25 | 107.99 | |
| No longer available, no replacement | ||||
| 20 | 1618597071 | |||
| Protective Cap | ||||
| 21 | 1610508017 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 22 | 1610591009 | |||
| Stop Sleeve | ||||
| 23 | 1610520001 | 11.37 | 13.76 | |
| Stopping Device | ||||
| 25 | 1612300027 | 10.90 | 13.19 | |
| Indexing Disk | ||||
| 26 | 1610290025 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 27 | 1610222008 | |||
| Compression Spring | ||||
| 28 | 1614621000 | 2.86 | 3.46 | |
| Compression Spring | ||||
| 29 | 1614616008 | 2.18 | 2.64 | |
| Ball Race | ||||
| 30 | 1610250007 | 11.94 | 14.45 | |
| No longer available, no replacement | ||||
| 31 | 1610390015 | |||
| No longer available, no replacement | ||||
| 32 | 1610202016 | |||
| Supporting Disc | ||||
| 34 | 1610102622 | 1.00 | 1.21 | |
| Hammer Pipe | ||||
| 35 | 1615806089 | 100.27 | 121.33 | |
| Covering hood | ||||
| 38 | 1615190064 | 13.58 | 16.43 | |
| Clutch Ring | ||||
| 39 | 1610290024 | 6.96 | 8.42 | |
| No longer available, no replacement | ||||
| 41 | 1613124036 | |||
| No longer available, no replacement | ||||
| 46 | 1611015036 | |||
| Cover | ||||
| 47 | 1610591012 | 1.32 | 1.60 | |
| Crown Gear | ||||
| 51 | 1616333023 | 111.64 | 135.08 | |
| No longer available, no replacement | ||||
| 53 | 1610190023 | |||
| No longer available, no replacement | ||||
| 54 | 1610101014 | |||
| Striker | ||||
| 57 | 1618710053 | 15.26 | 18.46 | |
| Eccentric Cog Wheel | ||||
| 72 | 1616337004 | 72.96 | 88.28 | |
| Handle | ||||
| 75 | 1615132059 | 11.94 | 14.45 | |
| No longer available, no replacement | ||||
| 80 | 1617233024 | |||
| Switch-Pawl | ||||
| 81 | 1612026055 | 7.32 | 8.86 | |
| Auxiliary Handle | ||||
| 84 | 160202507H | 10.90 | 13.19 | |
| Auxiliary Handle | ||||
| 84 | 1612025060 | 7.46 | 9.03 | |
| Support clamp | ||||
| 85 | 1618040056 | 4.12 | 4.99 | |
| T-Head Bolt | ||||
| 86 | 1613490001 | 8.35 | 10.10 | |
| Clamping Band | ||||
| 87 | 1611316008 | 9.67 | 11.70 | |
| Spring retaining ring | ||||
| 94 | 1610119007 | 1.24 | 1.50 | |
| Spring retaining ring | ||||
| 96 | 2916660024 | 4.94 | 5.98 | |
| Shim ring | ||||
| 97 | 2916190284 | 0.83 | 1.00 | |
| Friction Washer | ||||
| 98 | 1610101622 | 2.00 | 2.42 | |
| Holding Plate | ||||
| 99 | 1610190030 | 3.04 | 3.68 | |
| O-Ring | ||||
| 101 | 1610210094 | 2.52 | 3.05 | |
| No longer available, no replacement | ||||
| 102 | 1610210095 | |||
| No longer available, no replacement | ||||
| 103 | 1610210100 | |||
| No longer available, no replacement | ||||
| 104 | 1610210093 | |||
| O-Ring | ||||
| 105 | 1610210096 | 2.52 | 3.05 | |
| O-Ring | ||||
| 107 | 1610210116 | 2.86 | 3.46 | |
| O-Ring | ||||
| 108 | 1900210103 | 2.86 | 3.46 | |
| Rotary shaft lip seal | ||||
| 109 | 1610283028 | 5.27 | 6.38 | |
| No longer available, no replacement | ||||
| 110 | 1610116003 | |||
| No longer available, no replacement | ||||
| 111 | 1610210081 | |||
| No longer available, no replacement | ||||
| 112 | 1613461001 | |||
| Bushing | ||||
| 113 | 1610501036 | 7.32 | 8.86 | |
| Spring retaining ring | ||||
| 116 | 1610116004 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 117 | 1610119008 | 1.32 | 1.60 | |
| No longer available, no replacement | ||||
| 118 | 1610913009 | |||
| Needle-Roller Assembly | ||||
| 119 | 1610913011 | 5.96 | 7.21 | |
| No longer available, no replacement | ||||
| 121 | 1610905014 | |||
| Needle-Roller Assembly | ||||
| 122 | 1610913029 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 124 | 1610101008 | |||
| Tapping Screw | ||||
| 125 | 2912401036 | 0.83 | 1.00 | |
| Tapping Screw | ||||
| 126 | 2910211019 | 1.00 | 1.21 | |
| Oval-Head Screw | ||||
| 127 | 2912311166 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 128 | 2910211037 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 129 | 2912401037 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 131 | 1611110673 | 2.52 | 3.05 | |
| Microencapsulated Screw | ||||
| 132 | 2914551117 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 136 | 2910211236 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 139 | 1610005002 | |||
| Shim | ||||
| 148 | 1610102627 | 2.00 | 2.42 | |
| Shim | ||||
| 148 | 1610102633 | 2.00 | 2.42 | |
| Adapting Piece | ||||
| 149 | 1612388021 | 3.48 | 4.21 | |
| No longer available, no replacement | ||||
| 151 | 2600210028 | |||
| No longer available, no replacement | ||||
| 152 | 1610508030 | |||
| No longer available, no replacement | ||||
| 154 | 1610222010 | |||
| No longer available, no replacement | ||||
| 750 | 2605438314 | |||
| Auxiliary Handle | ||||
| 784 | 2602025062 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 800 | 1617000945 | |||
| No longer available, no replacement | ||||
| 803 | 1614010186 | |||
| Power supply cord | ||||
| 805 | 1607000227 | 23.90 | 28.92 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 814 | 1617000822 | |||
| Cylindrical Roller | ||||
| 824 | 1617000271 | 4.58 | 5.54 | |
| Control Fork | ||||
| 833 | 1617000949 | 21.73 | 26.29 | |
| No longer available, no replacement | ||||
| 837 | 1617000291 | |||
| Impact Mechanism Housing | ||||
| 840 | 1617000811 | 58.79 | 71.14 | |
| No longer available, no replacement | ||||
| 842 | 1614336009 | |||
| No longer available, no replacement | ||||
| 842/020 | 1614336043 | |||
| Carbon-Brush Set | ||||
| 842/040 | 1617014122 | 15.61 | 18.89 | |
| Rubber Buffer | ||||
| 842/050 | 1613212004 | 3.04 | 3.68 | |
| Tapping Screw | ||||
| 842/080 | 2912401005 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 843 | 1615808078 | |||
| Gear Housing | ||||
| 845 | 1617000962 | 111.64 | 135.08 | |
| Clutch Sleeve | ||||
| 848 | 1617000415 | 21.73 | 26.29 | |
| No longer available, no replacement | ||||
| 856 | 1617000999 | |||
| No longer available, no replacement | ||||
| 860 | 1617000817 | |||
| No longer available, no replacement | ||||
| 897 | 1617000272 | |||
| No longer available, no replacement | ||||
| 898 | 1617000273 | |||
| Holding Plate | ||||
| 899 | 1617000293 | 10.34 | 12.51 | |
