Here you will find all available parts and drawings of the 'Bosch 3603C94200 ( PBH3000-2FRE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

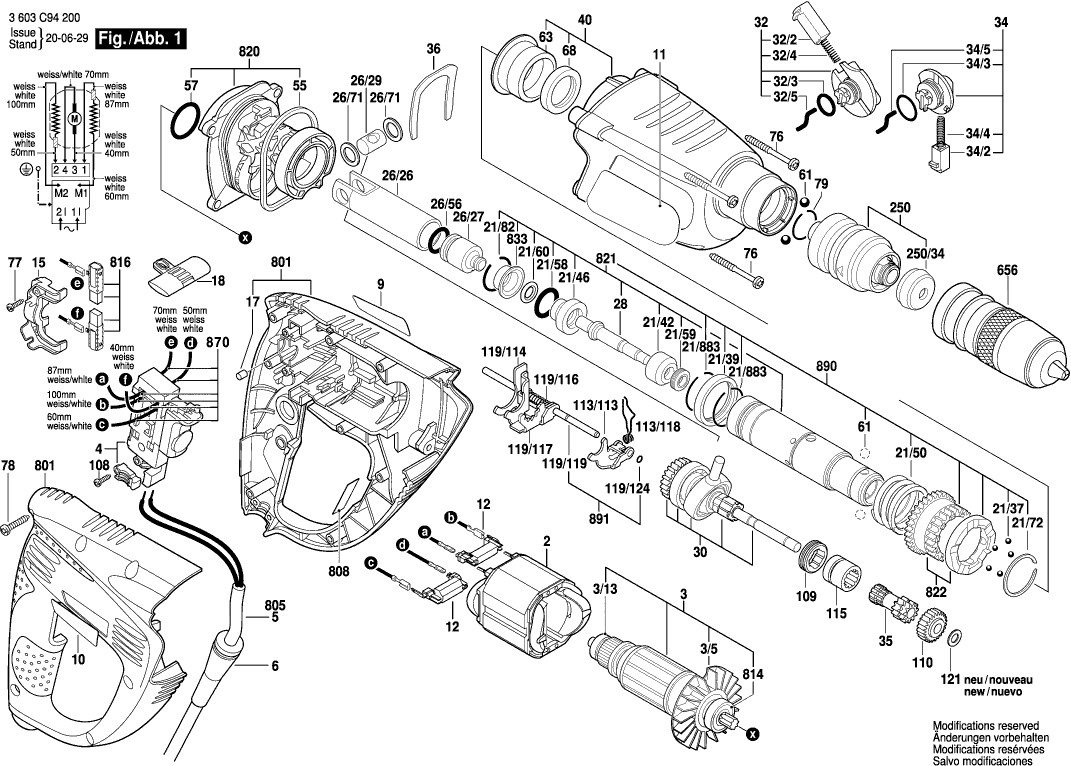

Technical drawing of model Bosch 3603C94200 ( PBH3000-2FRE )

Spare parts list of model Bosch 3603C94200 ( PBH3000-2FRE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field 230V
2 1614220193 18.19 22.01
Armature 230V
3 1614010251 49.56 59.97
groove ball bearing 7x19x6
3/13 1610905032 4.10 4.96
Fan
3/5 1616610094 1.70 2.06
Switch
4 1617200111 23.75 28.74
Grommet Ø7,3-Ø8,6x76 MM
6 2600703018 1.94 2.35
Manufacturer's nameplate PBH 3000-2 FRE
9 1611110Z11 1.94 2.35
Manufacturer's nameplate PBH 3000-2 FRE
10 1611110Z12 1.94 2.35
Reference Plate
11 1611110Z13 1.94 2.35
Suppression Filter
12 1617328032 5.83 7.05
Bearing Bracket
15 1615808099 2.71 3.28
Damping rubber
17 2603100056 1.18 1.43
Change-Over Switch
18 1613231025 0.83 1.00
Ball DIN 5401-4 MM-III-ST
21/37 1903230007 1.18 1.43
Friction Washer
21/39 1610102078 2.24 2.71
Thrust Ring
21/42 1610290099 4.10 4.96
Guide Bushing
21/46 1610390066 9.53 11.53
Compression Spring
21/50 1614643019 1.94 2.35
O-Ring
21/58 1610210178 1.18 1.43
Shaft Seal
21/59 1600A009VC 2.24 2.71
O-Ring 9,0x3,5 MM
21/60 1610210176 0.83 1.00
Retaining ring
21/72 1604601027 0.83 1.00
Retaining ring
21/82 1614601057 0.83 1.00
Retaining ring A22 DIN 7993
21/883 1604601028 0.83 1.00
Hammer Piston
26/26 1618700089 11.88 14.37
Striker
26/27 1610311018 13.93 16.86
Piston Pin
26/29 1613105012 2.71 3.28
O-Ring
26/56 1610210187 1.70 2.06
Shim washer 1,2 MM THICK
26/71 1610101011 1.18 1.43
Striker Pin
28 1613124091 6.54 7.91
Drive bearing
30 1617000601 55.25 66.85
Clamp Handle
32 1612026134 4.70 5.69
Switch Button RED
32/2 1612026035 1.18 1.43
O-Ring 12,5x2,5 MM
32/3 1610210200 0.83 1.00
Compression Spring
32/4 1614611006 2.71 3.28
Driver Pin
32/5 1614690006 0.83 1.00
Clamp Handle
34 1612026132 4.70 5.69
Switch Button
34/2 1612026138 1.18 1.43
O-Ring 17,0x2,0 MM
34/3 1610210201 0.83 1.00
Compression Spring
34/4 1614643020 2.71 3.28
Driver Pin
34/5 1614690007 0.83 1.00
Gear Sleeve
35 1616328050 7.58 9.17
Holding Plate
36 1611016003 1.70 2.06
Ball DIN 5401-4 MM-III-ST
37 1903230007 1.18 1.43
Friction Washer
39 1610102078 2.24 2.71
Gear Housing
40 1617000603 26.84 32.48
Thrust Ring
42 1610290099 4.10 4.96
Guide Bushing
46 1610390066 9.53 11.53
Compression Spring
50 1614643019 1.94 2.35
O-Ring
55 1610290108 1.18 1.43
O-Ring 24,0x2,5 MM
57 1610210068 1.18 1.43
O-Ring
58 1610210178 1.18 1.43
Shaft Seal
59 1600A009VC 2.24 2.71
O-Ring 9,0x3,5 MM
60 1610210176 0.83 1.00
Ball DIN 5401-5,5MM-III-ST
61 1903230010 0.83 1.00
Plain bearing
63 1610202026 4.10 4.96
Shaft Seal
68 1610283019 5.83 7.05
Retaining ring
72 1604601027 0.83 1.00
Thread-forming tap. Screw
76 160343000A 0.83 1.00
Lens Head Screw 3x10 ST
77 1613435034 0.83 1.00
Torx Oval-Head Screw 4x20
78 2603490023 0.83 1.00
Retaining ring
79 1614601026 1.18 1.43
Retaining ring
82 1614601057 0.83 1.00
Lens Head Screw 3x10 ST
108 1613435034 0.83 1.00
Switching Element
109 1615820098 1.70 2.06
Cylindrical Gear
110 1616312008 4.70 5.69
Shift Plate
113/113 1601021006 1.70 2.06
Switch Spring
113/118 1614651020 2.71 3.28
Switching Element
115 1615820099 2.71 3.28
Shift Plate
119/114 1601021007 1.70 2.06
Compression Spring
119/116 1614643021 1.18 1.43
Shift Plate
119/117 1601021008 1.70 2.06
Guide Rod
119/119 1613023002 2.24 2.71
Retaining ring
119/124 1614601063 0.83 1.00
Auxiliary Handle BLACK
120 2602025125 7.58 9.17
Shim
121 1610100613 0.83 1.00
Quick-Change Collet Chuck
250 1617000663 60.65 73.39
Protective Cap
250/34 1610508047 1.70 2.06
Depth-Gauge
651 2609005615 3.31 4.01
Keyless Chuck
656 1608572032 60.65 73.39
Motor Housing
801 1617000V97 23.75 28.74
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1607000392 15.71 19.01
Nameplate
808 160111A3H6 1.94 2.35
groove ball bearing 9x24x7
814 1610905048 6.54 7.91
Carbon-Brush Set
816 1617014146 9.53 11.53
Intermediate Flange
820 1617000V98 18.19 22.01
Hammer Pipe
821 1617000607 67.25 81.37
Clutch Set
822 1617000A41 8.45 10.22
No information available, not orderable
830 1617000600
Holding Jacket
833 1610590014 1.70 2.06
Gear Housing
840 1617000603 26.84 32.48
Connecting Cable
870 1619P01776 4.70 5.69
Retaining ring A22 DIN 7993
883 1604601028 0.83 1.00
Hammer Pipe
890 1617000609 91.56 110.79
Guide Rod
891 1617000602 2.71 3.28
Locking Hook
895 1615438457 5.33 6.45
