Here you will find all available parts and drawings of the 'Bosch 3603C93100 (PBH2900FRE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

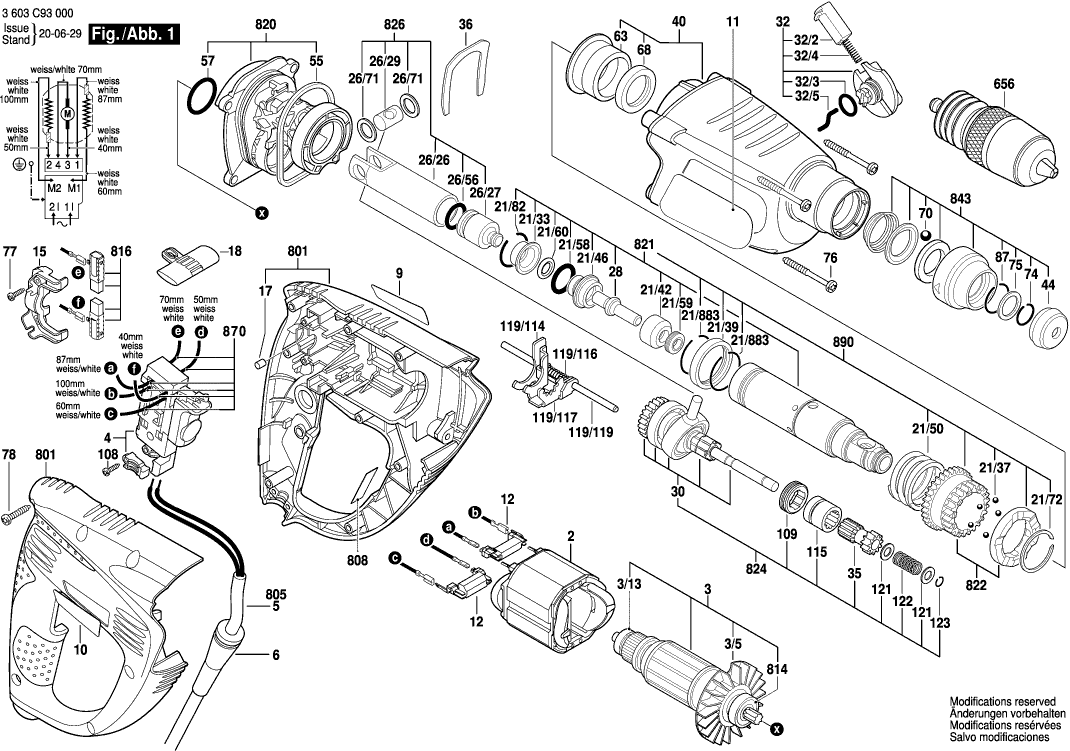

Technical drawing of model Bosch 3603C93100 (PBH2900FRE)
Spare parts list of model Bosch 3603C93100 (PBH2900FRE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 1614220193 | 21.30 | 25.77 | |
| Armature | ||||
| 3 | 1614010251 | 43.12 | 52.18 | |
| groove ball bearing | ||||
| 3/13 | 1610905032 | 4.94 | 5.98 | |
| Fan | ||||
| 3/5 | 1616610094 | 2.08 | 2.52 | |
| Switch | ||||
| 4 | 1617200111 | 27.81 | 33.65 | |
| Grommet | ||||
| 6 | 2600703018 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 9 | 1611110Z07 | 2.86 | 3.46 | |
| Manufacturer's nameplate | ||||
| 10 | 1611110Z08 | 2.86 | 3.46 | |
| Reference Plate | ||||
| 11 | 1611110Z13 | 2.40 | 2.90 | |
| Suppression Filter | ||||
| 12 | 1617328032 | 7.46 | 9.03 | |
| Bearing Bracket | ||||
| 15 | 1615808099 | 3.44 | 4.16 | |
| Damping rubber | ||||
| 17 | 2603100056 | 1.49 | 1.80 | |
| Change-Over Switch | ||||
| 18 | 1613231025 | 1.00 | 1.21 | |
| Holding Jacket | ||||
| 21/33 | 1610590014 | 2.08 | 2.52 | |
| Ball | ||||
| 21/37 | 1903230007 | 1.49 | 1.80 | |
| Friction Washer | ||||
| 21/39 | 1610102078 | 2.86 | 3.46 | |
| Thrust Ring | ||||
| 21/42 | 1610102073 | 4.94 | 5.98 | |
| Guide Bushing | ||||
| 21/46 | 1610390051 | 6.73 | 8.14 | |
| Compression Spring | ||||
| 21/50 | 1614643019 | 2.40 | 2.90 | |
| O-Ring | ||||
| 21/58 | 1610210178 | 1.49 | 1.80 | |
| Rotary shaft lip seal | ||||
| 21/59 | 1610283035 | 5.81 | 7.03 | |
| O-Ring | ||||
| 21/60 | 1610210176 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 21/72 | 1604601027 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 21/82 | 1614601057 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 21/883 | 1604601028 | 1.00 | 1.21 | |
| Hammer Piston | ||||
| 26/26 | 1618700089 | 13.13 | 15.89 | |
| Striker | ||||
| 26/27 | 1610311018 | 16.79 | 20.32 | |
| Piston Pin | ||||
| 26/29 | 1613105012 | 3.44 | 4.16 | |
| O-Ring | ||||
| 26/56 | 1610210187 | 2.08 | 2.52 | |
| Shim washer | ||||
| 26/71 | 1610101011 | 1.49 | 1.80 | |
| Striker Pin | ||||
| 28 | 1613124081 | 9.67 | 11.70 | |
| Drive bearing | ||||
| 30 | 1617000601 | 64.67 | 78.25 | |
| Clamp Handle | ||||
| 32 | 1612026136 | 5.81 | 7.03 | |
| Switch Button | ||||
| 32/2 | 1612026035 | 1.49 | 1.80 | |
| O-Ring | ||||
| 32/3 | 1610210200 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 32/4 | 1614611006 | 3.44 | 4.16 | |
| Driver Pin | ||||
| 32/5 | 1614690006 | 1.00 | 1.21 | |
| Holding Jacket | ||||
| 33 | 1610590014 | 2.08 | 2.52 | |
| Gear Sleeve | ||||
| 35 | 1616328051 | 10.90 | 13.19 | |
| Holding Plate | ||||
| 36 | 1611016003 | 2.08 | 2.52 | |
| Ball | ||||
| 37 | 1903230007 | 1.49 | 1.80 | |
| Friction Washer | ||||
| 39 | 1610102078 | 2.86 | 3.46 | |
| Gear Housing | ||||
| 40 | 1617000V99 | 31.42 | 38.02 | |
| Thrust Ring | ||||
| 42 | 1610102073 | 4.94 | 5.98 | |
| Protective Cap | ||||
| 44 | 1610508047 | 2.08 | 2.52 | |
| Guide Bushing | ||||
| 46 | 1610390051 | 6.73 | 8.14 | |
| Compression Spring | ||||
| 50 | 1614643019 | 2.40 | 2.90 | |
| O-Ring | ||||
| 55 | 1610290108 | 1.49 | 1.80 | |
| O-Ring | ||||
| 57 | 1610210068 | 1.49 | 1.80 | |
| O-Ring | ||||
| 58 | 1610210178 | 1.49 | 1.80 | |
| Rotary shaft lip seal | ||||
| 59 | 1610283035 | 5.81 | 7.03 | |
| O-Ring | ||||
| 60 | 1610210176 | 1.00 | 1.21 | |
| Plain bearing | ||||
| 63 | 1610202026 | 4.94 | 5.98 | |
| Shaft Seal | ||||
| 68 | 1610283019 | 7.46 | 9.03 | |
| Ball | ||||
| 70 | 1903230013 | 2.08 | 2.52 | |
| Retaining ring | ||||
| 72 | 1604601027 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 74 | 1614601027 | 1.00 | 1.21 | |
| Retaining Washer | ||||
| 75 | 1610101629 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 76 | 160343000A | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 77 | 1613435034 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 78 | 2603490023 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 82 | 1614601057 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 87 | 160460102S | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 108 | 1613435034 | 1.00 | 1.21 | |
| Switching Element | ||||
| 109 | 1615820098 | 2.08 | 2.52 | |
| Switching Element | ||||
| 115 | 1615820099 | 3.44 | 4.16 | |
| Shift Plate | ||||
| 119/114 | 1601021007 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 119/116 | 1614643021 | 1.49 | 1.80 | |
| Shift Plate | ||||
| 119/117 | 1601021008 | 2.08 | 2.52 | |
| Guide Rod | ||||
| 119/119 | 1613023002 | 2.86 | 3.46 | |
| Auxiliary Handle | ||||
| 120 | 2602025125 | 9.67 | 11.70 | |
| Shim | ||||
| 121 | 1610100613 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 122 | 1614643022 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 123 | 2916540004 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 651 | 2609005615 | |||
| Keyless Chuck | ||||
| 656 | 1618571033 | 64.67 | 78.25 | |
| Motor Housing | ||||
| 801 | 1617000V97 | 27.81 | 33.65 | |
| Power supply cord | ||||
| 805 | 1614460026 | 16.79 | 20.32 | |
| Nameplate | ||||
| 808 | 160111A3H6 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 814 | 1610905048 | 8.35 | 10.10 | |
| Carbon-Brush Set | ||||
| 816 | 1617014146 | 10.68 | 12.92 | |
| Intermediate Flange | ||||
| 820 | 1617000V98 | 21.30 | 25.77 | |
| Hammer Pipe | ||||
| 821 | 1617000606 | 71.68 | 86.73 | |
| Clutch Set | ||||
| 822 | 1617000A41 | 10.90 | 13.19 | |
| Shaft | ||||
| 824 | 1617000608 | 80.26 | 97.11 | |
| Hammer Piston | ||||
| 826 | 1617000604 | 31.42 | 38.02 | |
| Drive bearing | ||||
| 830 | 1617000601 | 64.67 | 78.25 | |
| Gear Housing | ||||
| 840 | 1617000V99 | 31.42 | 38.02 | |
| Protection Sleeve | ||||
| 843 | 1617000531 | 10.90 | 13.19 | |
| Connecting Cable | ||||
| 870 | 1619P01776 | 5.81 | 7.03 | |
| Retaining ring | ||||
| 883 | 1604601028 | 1.00 | 1.21 | |
| Hammer Pipe | ||||
| 890 | 1617000605 | 64.67 | 78.25 | |
| Locking Hook | ||||
| 895 | 1615438457 | 6.73 | 8.14 | |
