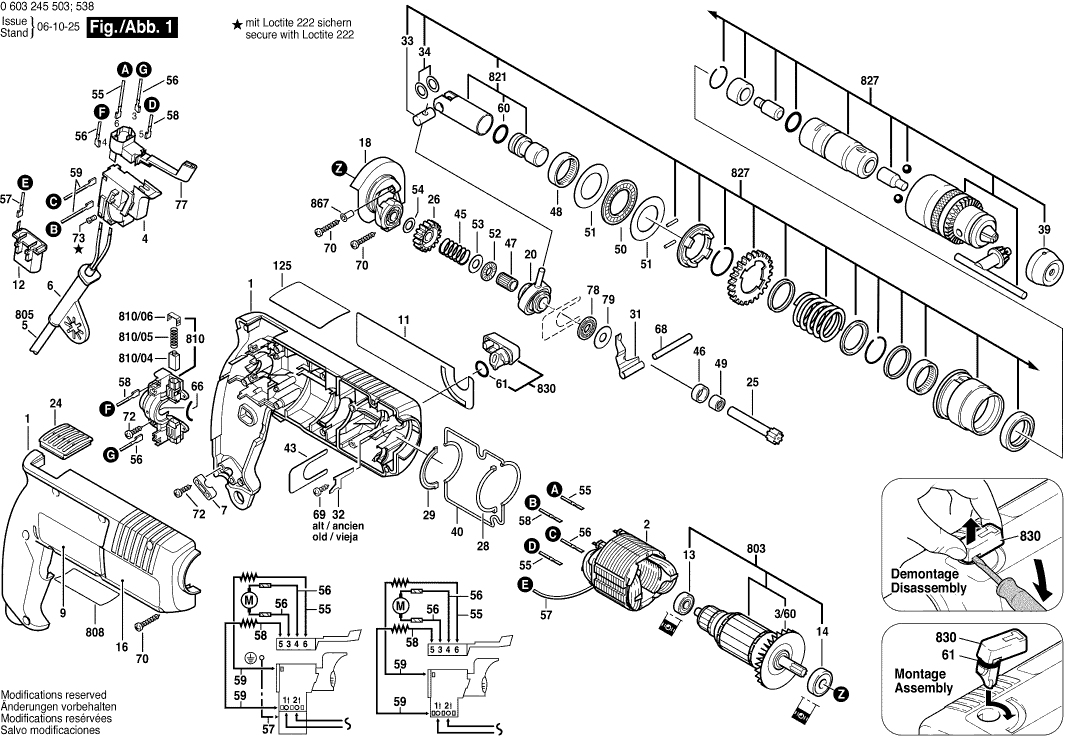

Technical drawing of model Bosch 0603245503 (PBH200RF)
Spare parts list of model Bosch 0603245503 (PBH200RF)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1615104002 | |||
| Field | ||||
| 2 | 2604220411 | 21.30 | 25.77 | |
| Fan | ||||
| 3/60 | 2606610022 | 3.71 | 4.49 | |
| No longer available, no replacement | ||||
| 4 | 2607200209 | |||
| Grommet | ||||
| 6 | 2600707061 | 2.86 | 3.46 | |
| Grommet | ||||
| 6 | 2600707060 | 2.40 | 2.90 | |
| Grommet | ||||
| 6 | 2600707062 | 1.49 | 1.80 | |
| Cable Clip | ||||
| 7 | 1611035005 | 2.08 | 2.52 | |
| Manufacturer's nameplate | ||||
| 9 | 1611110371 | 1.73 | 2.09 | |
| Manufacturer's nameplate | ||||
| 11 | 1611110370 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 12 | 1607328040 | |||
| groove ball bearing | ||||
| 13 | 1610905032 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 14 | 1610905048 | 8.35 | 10.10 | |
| Reference Plate | ||||
| 16 | 1611110372 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 18 | 1615700027 | |||
| Drive bearing | ||||
| 20 | 1615819012 | 31.42 | 38.02 | |
| Protective Grille | ||||
| 24 | 1612388019 | 1.49 | 1.80 | |
| Toothed Shaft | ||||
| 25 | 1613160008 | 18.94 | 22.92 | |
| Cylindrical Gear | ||||
| 26 | 1616317600 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 28 | 1611015034 | |||
| No longer available, no replacement | ||||
| 29 | 1611015035 | |||
| Pressure Lever | ||||
| 31 | 1611329009 | 2.86 | 3.46 | |
| Piston Pin | ||||
| 33 | 1613103006 | 2.86 | 3.46 | |
| Shim washer | ||||
| 34 | 1610100608 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 39 | 1610508015 | |||
| No longer available, no replacement | ||||
| 40 | 1611015033 | |||
| Holding Plate | ||||
| 43 | 1611031005 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 45 | 1614610005 | 1.49 | 1.80 | |
| Retaining snap ring | ||||
| 46 | 1610200014 | 1.49 | 1.80 | |
| Needle-Roller Assembly | ||||
| 47 | 1610913008 | 4.18 | 5.06 | |
| Needle-Roller Bearing | ||||
| 49 | 2600917003 | 2.86 | 3.46 | |
| Roller-Cage Assembly | ||||
| 50 | 1610920002 | 3.44 | 4.16 | |
| Support Disc | ||||
| 51 | 1610102617 | 2.08 | 2.52 | |
| Thrust Needle Rim | ||||
| 52 | 1610920005 | 2.86 | 3.46 | |
| Support Disc | ||||
| 53 | 1610100602 | 1.49 | 1.80 | |
| Shim | ||||
| 54 | 1610100604 | 1.49 | 1.80 | |
| Shim | ||||
| 54 | 1610100606 | 1.49 | 1.80 | |
| Shim | ||||
| 54 | 1610100607 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 55 | 2604448096 | |||
| Connecting Cable | ||||
| 56 | 1614448014 | 2.40 | 2.90 | |
| Connecting Cable | ||||
| 58 | 2604448034 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 59 | 2604448060 | |||
| No longer available, no replacement | ||||
| 60 | 1610210086 | |||
| O-Ring | ||||
| 61 | 1610210046 | 2.08 | 2.52 | |
| Damping rubber | ||||
| 66 | 1610026001 | 1.00 | 1.21 | |
| Straight Pin | ||||
| 68 | 2917550133 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 70 | 2912401022 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 72 | 2912401019 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 73 | 2603410001 | 1.49 | 1.80 | |
| Change-Over Switch | ||||
| 77 | 2607200231 | 14.94 | 18.08 | |
| Roller-Cage Assembly | ||||
| 78 | 1610920006 | 2.86 | 3.46 | |
| Support Disc | ||||
| 79 | 1610100609 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 120/20 | 2915011007 | 1.00 | 1.21 | |
| Wing Screw | ||||
| 120/30 | 1613480007 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 120/50 | 2608040014 | |||
| Wing Screw | ||||
| 120/60 | 1613480008 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 125 | 1611110377 | 1.73 | 2.09 | |
| Auxiliary Handle | ||||
| 720 | 1619PB4323 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 750 | 2605438245 | |||
| No longer available, no replacement | ||||
| 752 | 1613001005 | |||
| No longer available, no replacement | ||||
| 754 | 2607000122 | |||
| No longer available, no replacement | ||||
| 803 | 1614010076 | |||
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 810 | 2609992600 | |||
| No longer available, no replacement | ||||
| 810/04 | 1617014117 | |||
| Compression Spring | ||||
| 810/05 | 2604611026 | 1.49 | 1.80 | |
| Ratchet Cap | ||||
| 810/06 | 2601322013 | 1.49 | 1.80 | |
| Parts Set | ||||
| 821 | 1617000215 | 23.90 | 28.92 | |
| Parts Set | ||||
| 827 | 1617000935 | 141.37 | 171.06 | |
| No longer available, no replacement | ||||
| 830 | 1617000177 | |||
| Tubular rivet | ||||
| 867 | 2917161108 | 1.00 | 1.21 | |
