Here you will find all available parts and drawings of the 'Bosch 0603304768 ( PBH160R )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

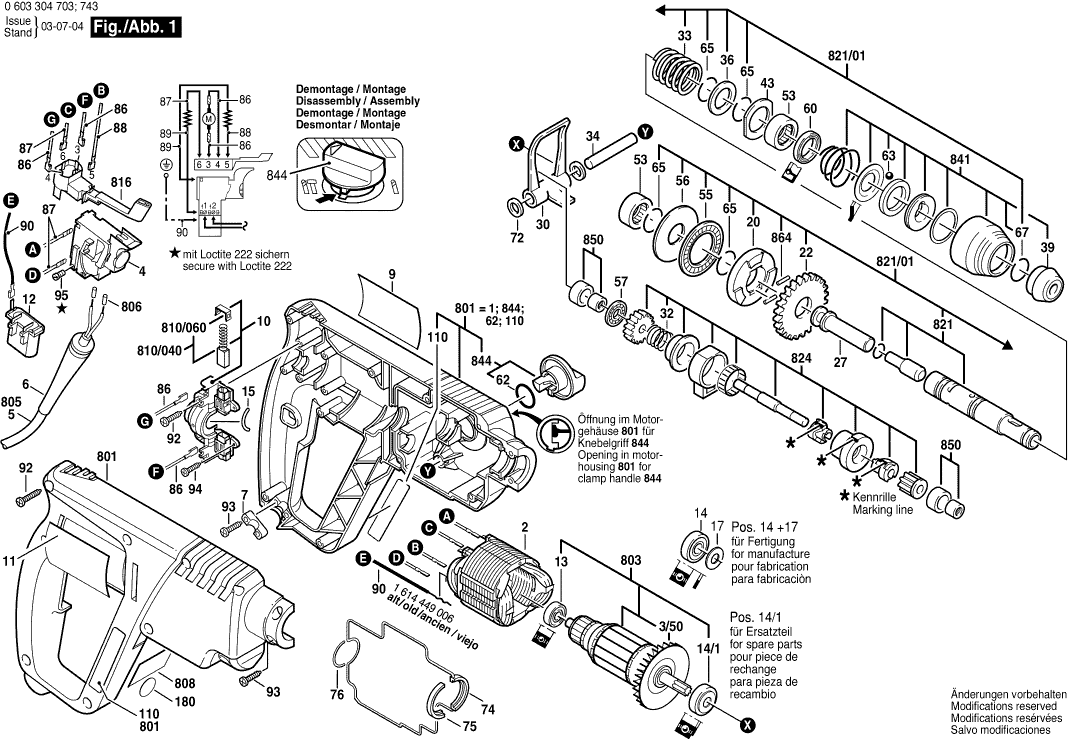

Technical drawing of model Bosch 0603304768 ( PBH160R )

Spare parts list of model Bosch 0603304768 ( PBH160R )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field 220-240V
2 2604220515 18.19 22.01
Fan
3/50 2606610022 3.31 4.01
No longer available, no replacement
4 2607200357
Grommet Ø7,3-Ø8,6x76 MM
6 2600703018 1.94 2.35
Cable Clip
7 1611035005 1.70 2.06
Manufacturer's nameplate
9 1601118139 3.31 4.01
No longer available, no replacement
10 2605807060
Reference Plate
11 1601118140 3.31 4.01
Suppression Filter
12 1607328040 5.33 6.45
groove ball bearing 7x19x6
13 1610905025 5.33 6.45
groove ball bearing 9x24x7
14/1 1610905048 6.54 7.91
Damping rubber
15 1610026001 0.83 1.00
Catch Disk
20 1616409012 4.10 4.96
Cylindrical Gear Z=51
22 1616317608 5.33 6.45
Striker
27 1618710068 5.33 6.45
No longer available, no replacement
30 1611911000
Compression Spring
32 1614632001 1.94 2.35
Compression Spring
33 1614634008 0.83 1.00
Bearing Pin
34 1613100021 0.83 1.00
Supporting Disc
36 1610190021 1.70 2.06
Protective Cap SDS-PLUS
39 1610508021 0.83 1.00
Supporting Disc
43 1610190020 0.83 1.00
Clamp Handle BLACK
44 1612026075 1.94 2.35
Needle bearing
53 1610910077 3.31 4.01
No longer available, no replacement
55 1610920012
Support Disc 1,0 MM THICK
56 1610102030 1.94 2.35
Roller Thrust Bearing BLACK
57 1610920009 1.94 2.35
Seal Ring
60 1610280006 1.94 2.35
O-Ring 18,0x2,5 MM
62 1610210125 0.83 1.00
Ball DIN 5401-Ø7MM-III-ST
63 1903230013 1.70 2.06
No longer available, no replacement
65 1614601018
Spring retaining ring
67 1614601077 1.18 1.43
Shim washer 1,0 MM THICK
72 1610100007 0.83 1.00
No longer available, no replacement
74 1611015040
Sealing Frame
75 1611015041 0.83 1.00
No longer available, no replacement
76 1611015042
Hex Nut DIN 934-M6-8-A
78/20 2915011007 0.83 1.00
Wing Screw M6x(15)55
78/30 1613480007 1.18 1.43
No longer available, no replacement
78/50 2608040014
Wing Screw M6x20 MM
78/60 1613480008 1.18 1.43
Connecting Cable L=85 MM WHITE
86 2604448147 0.83 1.00
Connecting Cable L=115MM BLUE
87 2604448096 1.18 1.43
Connecting Cable L=88 MM WHITE
88 2604448034 1.18 1.43
No longer available, no replacement
89 2604448060
No longer available, no replacement
90 2604448170
Tapping Screw DIN7981-ST3,9x22-C-Z
92 2912401021 0.83 1.00
Tapping Screw DIN7981-ST3,9x16-C-Z
93 2912401019 0.83 1.00
Torx Oval-Head Screw 3x10
94 2603490017 1.70 2.06
Socket head cap screw M3x6,5-4.8
95 2603410001 1.18 1.43
Reference Plate
110 1601118B75 0.83 1.00
Drill Chuck Shank 1/2 SDS-PLUS
700 1617000154 26.84 32.48
Countersunk-Head Screw M6x27 LEFTHAND THREADS
700/20 2603421226 1.18 1.43
Chuck
701 1608571088 23.75 28.74
Chuck Wrench SG2
701/7 2607950007 5.33 6.45
No longer available, no replacement
702 1617000133
Retaining ring
702/10/2 2604601004 1.18 1.43
No longer available, no replacement
702/20 1608521004
No longer available, no replacement
702/30 2607000248
No longer available, no replacement
702/40 1608511020
No longer available, no replacement
703 1615439003
Rubber Bushing Ø5-7 MM
703/30 1610312001 0.83 1.00
Rubber Bushing Ø8-10 MM
703/651 1610312002 0.83 1.00
No longer available, no replacement
750 2605438387
No longer available, no replacement
752 1613001005
No longer available, no replacement
754 2607018117
Auxiliary Handle
778 1619PB4323 7.58 9.17
Auxiliary Handle Ø 43 MM
778 1612025034 0.83 1.00
Housing Section GREEN
801 1617000362 33.45 40.47
No longer available, no replacement
803 1614010144
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1614460026 13.93 16.86
End Splice DIN 46 228-A1-6
806 1900452012 0.83 1.00
Nameplate
808 160111A3H5 1.94 2.35
No longer available, no replacement
810/040 1617014136
Ratchet Cap
810/060 2601322013 1.18 1.43
Ratchet Cap
810/060 2601322017 1.18 1.43
Change-Over Switch
816 2607200231 12.41 15.02
Hammer Pipe SDS-PLUS
821 1617000320 26.84 32.48
Hammer Pipe SDS-PLUS
821/01 1617000349 55.25 66.85
Jack Shaft
824 1617000972 40.61 49.14
No longer available, no replacement
841 1617000303
Clamp Handle BLACK
844 1617000322 2.71 3.28
No longer available, no replacement
844/1 1617000974
Bushing
850 1617000975 4.70 5.69
Straight Pin DIN6325-2,5x12-RIKO
864 1613100019 1.18 1.43
