Here you will find all available parts and drawings of the 'Bosch 0603262103 (PAS800-X)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

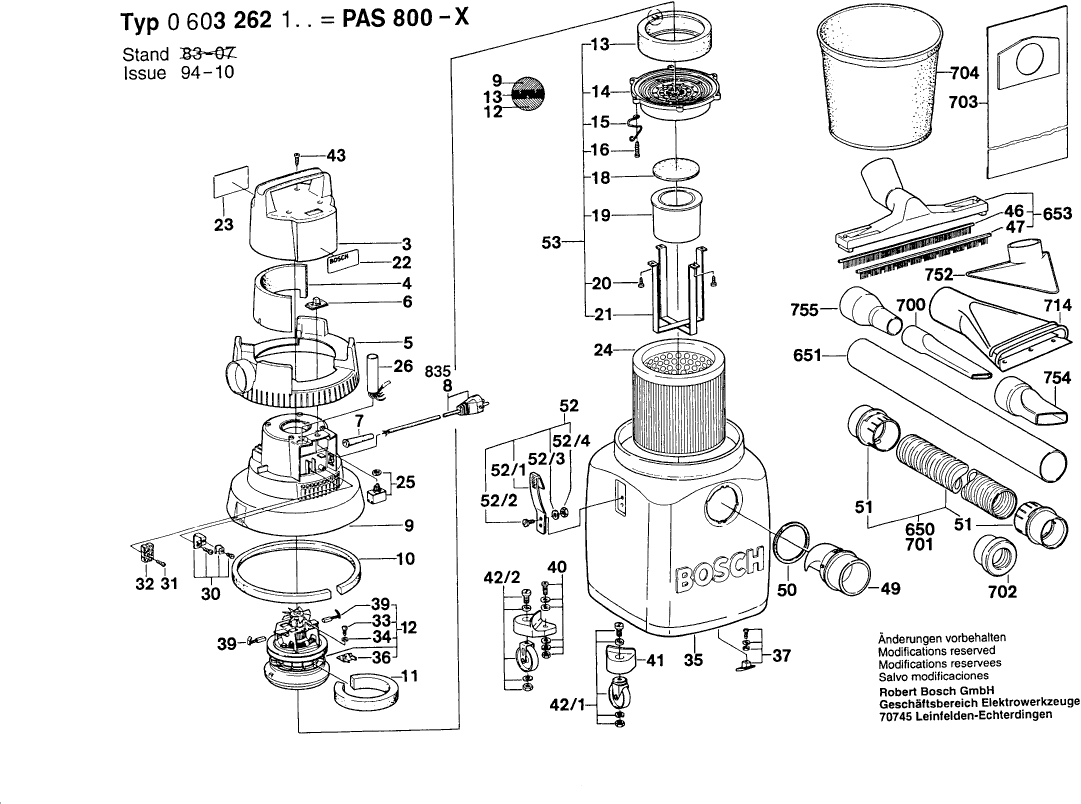

Technical drawing of model Bosch 0603262103 (PAS800-X)
Spare parts list of model Bosch 0603262103 (PAS800-X)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 3 | 1609201401 | |||
| No longer available, no replacement | ||||
| 5 | 1609200947 | |||
| No longer available, no replacement | ||||
| 6 | 1609200949 | |||
| No longer available, no replacement | ||||
| 7 | 1609201097 | |||
| No longer available, no replacement | ||||
| 9 | 1609200957 | |||
| No longer available, no replacement | ||||
| 10 | 1609200958 | |||
| No longer available, no replacement | ||||
| 11 | 1609201098 | |||
| Suction Blower | ||||
| 12 | 1609200961 | 244.89 | 296.32 | |
| No longer available, no replacement | ||||
| 13 | 1609201099 | |||
| No longer available, no replacement | ||||
| 14 | 1609200962 | |||
| No longer available, no replacement | ||||
| 15 | 1609201100 | |||
| Lens Head Screw | ||||
| 16 | 2603490026 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 18 | 1609201101 | |||
| No longer available, no replacement | ||||
| 19 | 1609200952 | |||
| Tapping Screw | ||||
| 20 | 2910611018 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 21 | 1609201102 | |||
| Nameplate | ||||
| 22 | 1601110305 | 1.00 | 1.21 | |
| Sticker | ||||
| 23 | 1601110304 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 24 | 1609200953 | |||
| On-Off Switch | ||||
| 25 | 1609200954 | 23.90 | 28.92 | |
| Suppression Filter | ||||
| 26 | 1609200956 | 58.03 | 70.22 | |
| No longer available, no replacement | ||||
| 30 | 1609201237 | |||
| Tapping Screw | ||||
| 31 | 2910211007 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 32 | 1609201105 | |||
| No longer available, no replacement | ||||
| 33 | 2910211017 | |||
| Spring Lock Washer | ||||
| 34 | 2916690003 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 35 | 1609201200 | |||
| No longer available, no replacement | ||||
| 36 | 1609200959 | |||
| No longer available, no replacement | ||||
| 39 | 1609200960 | |||
| Parts Set | ||||
| 40 | 1609201107 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 41 | 1609201108 | |||
| No longer available, no replacement | ||||
| 42 | 1609200966 | |||
| Screw | ||||
| 43 | 2603490022 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 49 | 1609201201 | |||
| No longer available, no replacement | ||||
| 50 | 1609201202 | |||
| Hose fitting | ||||
| 51 | 1609201203 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 52 | 1609201208 | |||
| Socket head cap screw | ||||
| 52/20 | 2910021196 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 52/30 | 2916011884 | |||
| Hex Nut | ||||
| 52/40 | 2915011007 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 53 | 1609201207 | |||
| Air Hose | ||||
| 650 | 2607000167 | 1.00 | 1.21 | |
| Suction Pipe | ||||
| 651 | 1609200968 | 1.00 | 1.21 | |
| Suction Nozzle | ||||
| 653 | 1609200970 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 653/10 | 1609201109 | |||
| No longer available, no replacement | ||||
| 653/20 | 1609201110 | |||
| Crevice Nozzle | ||||
| 700 | 2607000165 | 1.00 | 1.21 | |
| Reduction Sleeve | ||||
| 702 | 1609200933 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 703 | 1609200934 | |||
| No longer available, no replacement | ||||
| 704 | 2607432010 | |||
| No longer available, no replacement | ||||
| 705 | 1609200931 | |||
| No longer available, no replacement | ||||
| 706 | 1609201236 | |||
| Air Hose | ||||
| 706/10 | 1609202230 | 1.00 | 1.21 | |
| Air Hose | ||||
| 706/10/1 | 1609202230 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 706/20 | 1609201271 | |||
| No longer available, no replacement | ||||
| 706/30 | 1609201272 | |||
| No longer available, no replacement | ||||
| 706/40 | 1609201273 | |||
| Reduction Sleeve | ||||
| 706/50 | 1609200933 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 707 | 2607000163 | |||
| Suction Nozzle | ||||
| 708 | 1609201229 | 1.00 | 1.21 | |
| Suction Nozzle | ||||
| 709 | 1609201230 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 710 | 1609201231 | |||
| No longer available, no replacement | ||||
| 711 | 1609201232 | |||
| No longer available, no replacement | ||||
| 712 | 1609201233 | |||
| No longer available, no replacement | ||||
| 713 | 1609201234 | |||
| No longer available, no replacement | ||||
| 714 | 1609201235 | |||
| Air Hose | ||||
| 750 | 2607000167 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 752 | 1609200969 | |||
| Crevice Nozzle | ||||
| 754 | 1609200971 | 1.00 | 1.21 | |
| Suction Pipe | ||||
| 755 | 1609200976 | 1.00 | 1.21 | |
| Power supply cord | ||||
| 835 | 1607000227 | 23.90 | 28.92 | |
| End Splice | ||||
| 835/020 | 1900452012 | 1.49 | 1.80 | |
