Here you will find all available parts and drawings of the 'Bosch 0603222003 ( PAH1200 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

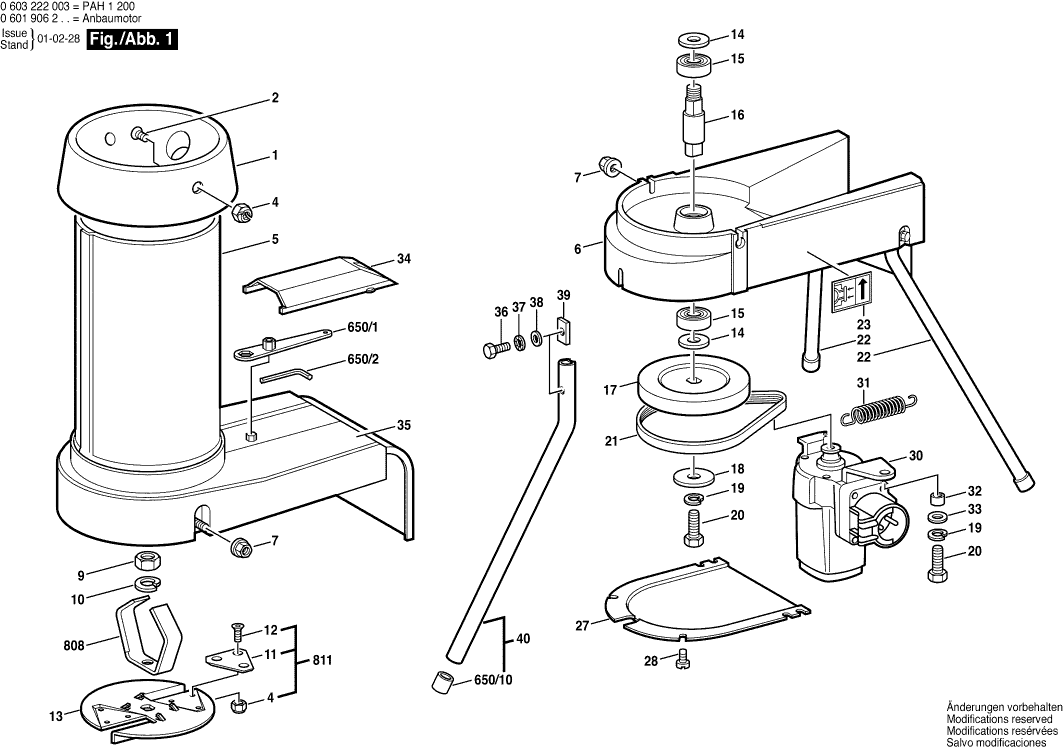

Technical drawing of model Bosch 0603222003 ( PAH1200 )

Spare parts list of model Bosch 0603222003 ( PAH1200 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Filter Funnel
1 1609201531 0.83 1.00
Oval countersunk screw DIN 964-M6x20-5.8
2 2910821201 0.83 1.00
Hex Nut DIN 985-M6-8
4 2915061004 0.83 1.00
Upper Housing
5 1609201532 0.83 1.00
Housing Base
6 1609201533 0.83 1.00
Hex Nut DIN 934-M8-8-A
7 2915011009 1.94 2.35
Hex Nut M 16
9 1609201544 0.83 1.00
Spring Lock Washer
10 2916680013 0.83 1.00
Countersunk-Head Screw M 6x12 MM
12 1609201549 0.83 1.00
Cutter Plate
13 1609201534 0.83 1.00
Shim ring
14 1609201546 0.83 1.00
groove ball bearing 20x42x12
15 1900905124 55.25 66.85
Drive Shaft
16 1609201535 0.83 1.00
Pulley
17 1609201536 0.83 1.00
Plain Washer Ø 28 x Ø 9x3 MM
18 1609201545 0.83 1.00
No longer available, no replacement
19 2916680009
Hex Screw DIN 933-M8x20-8.8
20 2911061242 1.18 1.43
V-Belt
21 1609201537 0.83 1.00
Support Tube
22 1609201538 0.83 1.00
Reference Plate
23 1601110352 0.83 1.00
Cover Plate
27 1609201539 0.83 1.00
Socket head cap screw DIN 84-AM4x10-5.8
28 2910011120 0.83 1.00
No longer available, no replacement
30 0601906203
Extension Spring
31 1609201540 0.83 1.00
Spacer Sleeve
32 1609201541 0.83 1.00
Plain Washer DIN 125-A 8,4-ST
33 2916011016 0.83 1.00
Sealing cap
34 1609201542 0.83 1.00
Outer Rim
35 1609201543 0.83 1.00
Hex Screw M 6x20 DIN 933-8.8
36 2911061201 0.83 1.00
Serrated Lock-Washer A 6,4 DIN 6798
37 2916070009 0.83 1.00
Plain Washer DIN 433-6,4-ST 50
38 2916011013 0.83 1.00
Clamping Piece M 6
39 1609201548 0.83 1.00
Support Tube
40 1609201547 0.83 1.00
Motor Housing GREEN
101 1605108129 15.71 19.01
Field 220-230V
102 1604220354 29.75 36.00
No information available, not orderable
103 1604010293
Nameplate
108 3601106003 1.18 1.43
Sticker
109 1601110046 1.18 1.43
Spiral Spring
111 1604652006 1.18 1.43
No information available, not orderable
112 3607328001
Ball Bearing 7x19x6
113 2600905032 4.10 4.96
Ball Bearing 9x26x8
114 1900905025 15.71 19.01
Brush Holder
116 3604336012 4.70 5.69
Wire Guide
120 1601025001 1.10 1.33
Blade terminal
121 1604477001 1.18 1.43
Socket head cap screw DIN 84-AM4x8-8.8
122 2910021118 0.83 1.00
No information available, not orderable
123 3605700068
No information available, not orderable
124 3600420005
No information available, not orderable
125 3605130004
Intermediate Ring
127 1600206026 1.18 1.43
Retaining ring DIN 9045 - Ø 30MM
128 2916600016 1.18 1.43
Air-Deflector Ring
129 1600502014 2.71 3.28
Compression Spring
130 1604613006 1.18 1.43
Sealing cap GREEN
131 1605500109 1.94 2.35
Intermediate Ring
132 1600502011 1.94 2.35
No longer available, no replacement
133 1605500112
No information available, not orderable
134 3604445001
Tapping Screw DIN 7971-ST3,9x16-F
136 2910211019 0.83 1.00
Tapping Screw DIN 7971-ST3,9x13-F
137 2910211018 0.83 1.00
Tapping Screw ST-4,8x57,5-TORX,T20
138 1613435009 1.18 1.43
Tapping Screw DIN 7971-B4,8x19
139 2910211234 1.18 1.43
No information available, not orderable
140 3604478001
No information available, not orderable
141 2910811166
Grommet
142 3600312005 1.94 2.35
No information available, not orderable
650 1609201530
No longer available, no replacement
650/1 1609201629
Cover
650/10 1607000190 1.18 1.43
Offset Screwdriver DIN 911-4
650/2 2607950004 1.18 1.43
Carbon-Brush Set
800 3607014012 20.42 24.71
No longer available, no replacement
808 1609201510
No longer available, no replacement
811 1609201511
