Here you will find all available parts and drawings of the 'Bosch 0603145003 (M22SBO)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

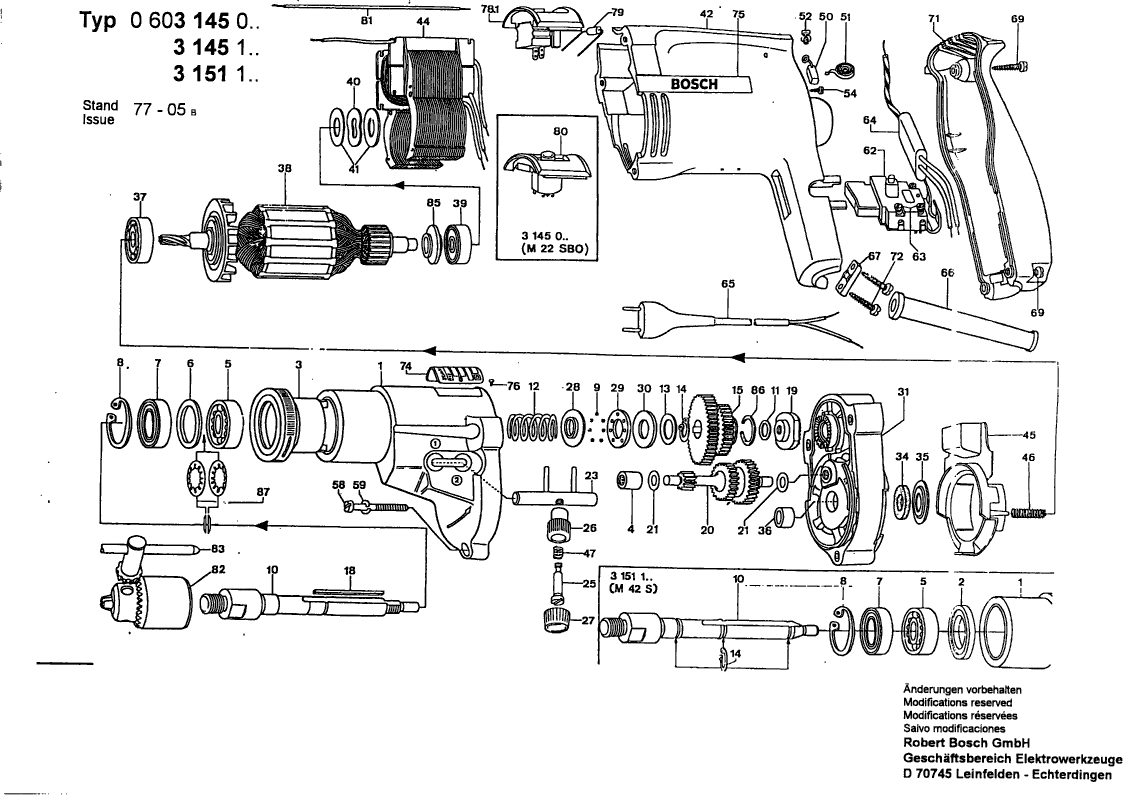

Technical drawing of model Bosch 0603145003 (M22SBO)
Spare parts list of model Bosch 0603145003 (M22SBO)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 2605806939 | |||
| No longer available, no replacement | ||||
| 3 | 2605801017 | |||
| Needle bearing | ||||
| 4 | 2600914004 | 4.18 | 5.06 | |
| groove ball bearing | ||||
| 5 | 1900900271 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 6 | 2600102003 | 1.00 | 1.21 | |
| Shaft Seal | ||||
| 7 | 2916730057 | 16.79 | 20.32 | |
| Spring retaining ring | ||||
| 8 | 2916660011 | 1.49 | 1.80 | |
| Ball | ||||
| 9 | 1903230003 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 10 | 2603523024 | |||
| Shim | ||||
| 11 | 2600100621 | 1.49 | 1.80 | |
| Shim | ||||
| 11 | 2600100623 | 1.49 | 1.80 | |
| Plain Washer | ||||
| 11 | 1230100633 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 12 | 2604630002 | 1.49 | 1.80 | |
| Shim | ||||
| 13 | 2600101663 | 1.49 | 1.80 | |
| Shim | ||||
| 13 | 2600101660 | 1.00 | 1.21 | |
| Shim | ||||
| 13 | 2600101661 | 1.00 | 1.21 | |
| Shim | ||||
| 13 | 2600101662 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 14 | 2916650002 | |||
| Flat Key | ||||
| 18 | 2602300004 | 1.00 | 1.21 | |
| Locating Washer | ||||
| 19 | 2600190013 | 18.94 | 22.92 | |
| No longer available, no replacement | ||||
| 20 | 2606308906 | |||
| Shim | ||||
| 21 | 2600100570 | 1.49 | 1.80 | |
| Guide Rod | ||||
| 23 | 2603103900 | 9.67 | 11.70 | |
| Pan head screw | ||||
| 25 | 2603413003 | 2.40 | 2.90 | |
| Round Nut | ||||
| 26 | 2603340002 | 2.08 | 2.52 | |
| Sealing cap | ||||
| 27 | 2600508029 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 28 | 2600220007 | |||
| No longer available, no replacement | ||||
| 29 | 2600138001 | |||
| No longer available, no replacement | ||||
| 30 | 2600101003 | |||
| Intermediate Flange | ||||
| 31 | 2605700915 | 1.00 | 1.21 | |
| Felt Washer | ||||
| 34 | 2600108020 | 1.49 | 1.80 | |
| Cupped Washer | ||||
| 35 | 2600500008 | 1.00 | 1.21 | |
| Receptacle | ||||
| 36 | 2600400020 | 6.73 | 8.14 | |
| groove ball bearing | ||||
| 37 | 2600905007 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 38 | 2604010439 | |||
| Ball Bearing | ||||
| 39 | 1900905018 | 16.79 | 20.32 | |
| Shim | ||||
| 40 | 2600150004 | 2.08 | 2.52 | |
| Shim | ||||
| 41 | 2600101020 | 1.49 | 1.80 | |
| Shim | ||||
| 41 | 2600101022 | 1.49 | 1.80 | |
| Shim | ||||
| 41 | 2600101023 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 42 | 2605104907 | |||
| No longer available, no replacement | ||||
| 44 | 2604222096 | |||
| Cover Disc | ||||
| 45 | 2601328023 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 46 | 2604611026 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 47 | 2604610006 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 50 | 2604320906 | |||
| No longer available, no replacement | ||||
| 51 | 2604652004 | |||
| Socket head cap screw | ||||
| 52 | 2603410010 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 54 | 2910211004 | 1.49 | 1.80 | |
| Spring Lock Washer | ||||
| 59 | 2916690003 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 62 | 2607200073 | |||
| Socket head cap screw | ||||
| 63 | 2603410023 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 64 | 2607329082 | |||
| Power supply cord | ||||
| 65 | 1607000386 | 18.94 | 22.92 | |
| Grommet | ||||
| 66 | 2600703011 | 2.86 | 3.46 | |
| Grommet | ||||
| 66 | 2600703012 | 2.86 | 3.46 | |
| Grommet | ||||
| 66 | 2600703013 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 67 | 2601035001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 69 | 2910211021 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 71 | 2605132031 | |||
| Tapping Screw | ||||
| 72 | 2910211019 | 1.00 | 1.21 | |
| Nameplate | ||||
| 74 | 160111A3H3 | 2.40 | 2.90 | |
| Sticker | ||||
| 75 | 2601007003 | 1.00 | 1.21 | |
| Round-Head Grooved Pin | ||||
| 76 | 2917724031 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 78/1 | 2607200013 | |||
| No longer available, no replacement | ||||
| 79 | 2607320008 | |||
| No longer available, no replacement | ||||
| 80 | 2607202900 | |||
| Connecting Cable | ||||
| 81 | 2604411527 | 1.00 | 1.21 | |
| Chuck | ||||
| 82 | 1608571069 | 23.90 | 28.92 | |
| Chuck Wrench | ||||
| 83 | 2607950007 | 6.73 | 8.14 | |
| Armature Plate | ||||
| 85 | 2600121002 | 1.49 | 1.80 | |
| Armature Plate | ||||
| 86 | 2600121002 | 1.49 | 1.80 | |
