Here you will find all available parts and drawings of the 'Bosch 0603132036 ( M21SO )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

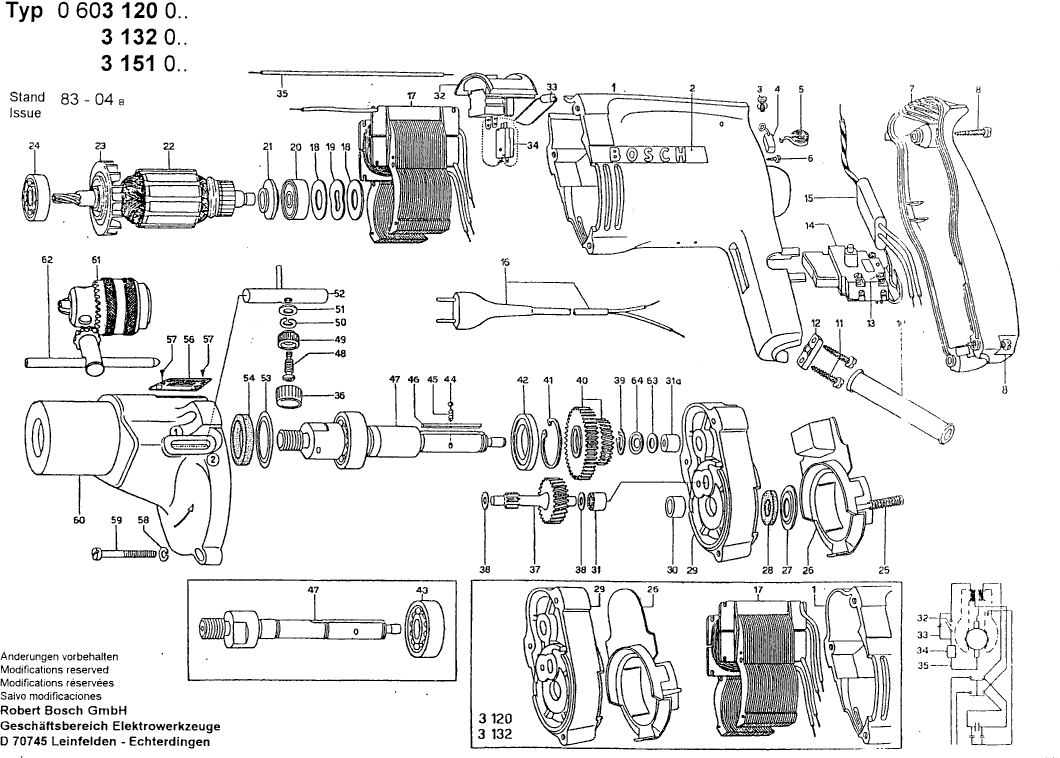

Technical drawing of model Bosch 0603132036 ( M21SO )

Spare parts list of model Bosch 0603132036 ( M21SO )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No longer available, no replacement
1 2605104901
Sticker
2 2601007003 0.83 1.00
Socket head cap screw
3 2603410010 0.83 1.00
No longer available, no replacement
4 2604320906
Spiral Spring
5 2604652002 1.18 1.43
Tapping Screw DIN 7971-BZ2,9x6,5
6 2910211004 1.18 1.43
No longer available, no replacement
7 2605132031
Tapping Screw DIN 7971-ST3,9x22-F
8 2910211021 1.18 1.43
Grommet Ø8,3-Ø9,4x95 MM
10 2600703011 2.24 2.71
Grommet Ø6,5-Ø6,9x95 MM
10 2600703012 2.24 2.71
Grommet Ø7,6-Ø8,2x95 MM
10 2600703013 1.94 2.35
Tapping Screw DIN 7971-ST3,9x16-F
11 2910211019 0.83 1.00
Cable Clip
12 2601035001 1.18 1.43
Socket head cap screw M3x10 MM
13 2603410023 1.18 1.43
No longer available, no replacement
14 2607200073
Suppression Filter
15 2607329051 7.58 9.17
No longer available, no replacement
17 2604222229
Shim 0,5 MM
18 2600101020 1.18 1.43
Shim 0,2 MM
18 2600101022 1.18 1.43
Shim 0,3 MM
18 2600101023 1.18 1.43
Shim
19 2600150004 1.70 2.06
Ball Bearing 7x22x7
20 1900905018 13.93 16.86
Armature Plate
21 2600121002 1.18 1.43
No longer available, no replacement
22 2604010442
Fan
23 2606610032 0.83 1.00
Groove ball bearing 10 MM DIN 625
24 2600905007 7.58 9.17
Compression Spring
25 2604611026 1.18 1.43
Brush
26 2601328018 0.83 1.00
Cupped Washer
27 2600500008 0.83 1.00
Felt Washer
28 2600108020 1.18 1.43
Intermediate Flange
29 2605700902 0.83 1.00
Receptacle
30 2600400020 5.33 6.45
Needle bearing
31 2600914004 3.31 4.01
No longer available, no replacement
32 2607200053
No longer available, no replacement
33 2607320008
No longer available, no replacement
34 2607202900
Connecting Cable
35 2604411519 0.83 1.00
Sealing cap
36 2600508029 1.18 1.43
No longer available, no replacement
37 2603160900
Shim 0,3 MM
38 2600100570 1.18 1.43
Spring retaining ring DIN 471-12x1-FSt
39 2916650003 1.18 1.43
No longer available, no replacement
40 2606328036
Retaining clip DIN 472-32x1,2 MM
41 2916660013 1.70 2.06
Shim washer
42 2600114025 0.83 1.00
groove ball bearing 12x32x10
43 1900900302 15.71 19.01
Ball DIN 5401-3,5 MM-III-ST
44 1903230006 1.70 2.06
Compression Spring
45 2604611016 0.83 1.00
Flat Key
46 2602300014 0.83 1.00
No longer available, no replacement
47 2603122019
Pan head screw
48 2603413020 1.18 1.43
Shift-Lever Knob
49 2603340015 0.83 1.00
Spring Lock Washer DIN 128-A5-FST
50 2916690004 1.18 1.43
Plain Washer DIN 433-5,3-ST
51 2916011011 1.18 1.43
Switching Pin
52 2603103017 0.83 1.00
Cupped Washer
53 2600500033 1.94 2.35
Felt Washer
54 2600108033 1.18 1.43
Needle Roller DIN 5402-A3x11,8-G2
55 1903201042 1.70 2.06
Nameplate
56 160111A3H3 1.94 2.35
Round-Head Grooved Pin 2x3 DIN 1476 ST
57 2917724031 0.83 1.00
Spring Lock Washer DIN 128-A4-FST
58 2916690003 0.83 1.00
Socket head cap screw
59 2603410025 0.83 1.00
No longer available, no replacement
60 2605806902
Chuck Ø1,5-13 MM, 1/2"
61 1608571069 20.42 24.71
Chuck Wrench SG2
62 2607950007 5.33 6.45
Shim
63 2600100565 0.83 1.00
Cupped Washer
64 2600500001 0.83 1.00
