Here you will find all available parts and drawings of the 'Bosch 3603C28001 ( KS5500 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

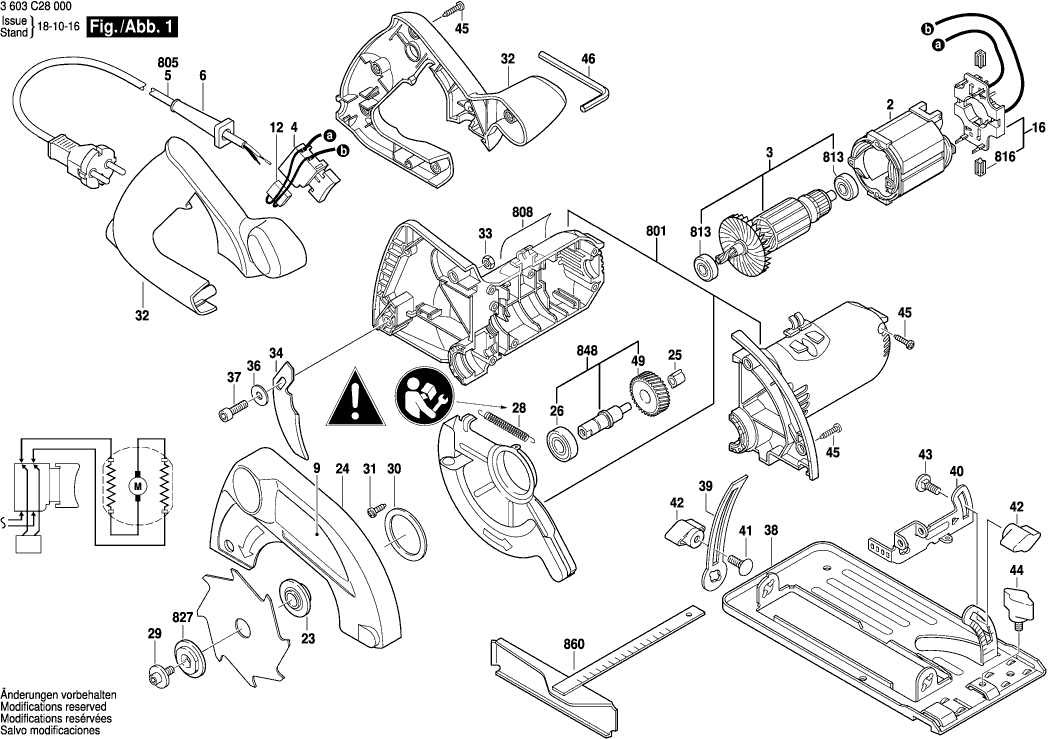

Technical drawing of model Bosch 3603C28001 ( KS5500 )
Spare parts list of model Bosch 3603C28001 ( KS5500 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 230V | ||||
| 2 | 2609001636 | 13.93 | 16.86 | |
| Armature 230V | ||||
| 3 | 2609001406 | 23.75 | 28.74 | |
| Switch | ||||
| 4 | 1607503101 | 5.83 | 7.05 | |
| No longer available, no replacement | ||||
| 5 | 2610362954 | |||
| Grommet | ||||
| 6 | 2610360176 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 9 | 1601118730 | |||
| Suppression Capacitor | ||||
| 12 | 2609004538 | 2.71 | 3.28 | |
| Brush Holder | ||||
| 16 | 2609006438 | 8.45 | 10.22 | |
| Washer | ||||
| 23 | 2610386555 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 24 | 2610386621 | |||
| Bearing | ||||
| 25 | 2610386569 | 1.94 | 2.35 | |
| Ball Bearing | ||||
| 26 | 2610366402 | 5.83 | 7.05 | |
| Extension Spring | ||||
| 28 | 2610386609 | 1.94 | 2.35 | |
| Hex Socket Head Cap Screw M6x14 MM | ||||
| 29 | 1603414007 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 30 | 2610386556 | |||
| Torx Oval-Head Screw 8x13 | ||||
| 31 | 2610374913 | 1.18 | 1.43 | |
| Set Of Handles | ||||
| 32 | 2610386620 | 7.58 | 9.17 | |
| Nut M6 | ||||
| 33 | 2610061550 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 34 | 2610386554 | |||
| Washer DIN 9021-6,4x18x1,6 | ||||
| 36 | 2610386712 | 1.94 | 2.35 | |
| Screw M6x22 MM | ||||
| 37 | 2610386933 | 1.18 | 1.43 | |
| Base | ||||
| 38 | 2610386840 | 10.73 | 12.98 | |
| Support | ||||
| 39 | 2610386841 | 1.70 | 2.06 | |
| Hinge | ||||
| 40 | 2610386842 | 1.94 | 2.35 | |
| Carrying Bolt M6x20 MM | ||||
| 41 | 2610386847 | 1.18 | 1.43 | |
| Hex Nut | ||||
| 42 | 2610387875 | 1.94 | 2.35 | |
| Carrying Bolt | ||||
| 43 | 2609003647 | 1.18 | 1.43 | |
| Wing Screw | ||||
| 44 | 2610387876 | 1.18 | 1.43 | |
| Torx Oval-Head Screw T20-8x19 MM | ||||
| 45 | 2610374919 | 0.83 | 1.00 | |
| Hexagon Socket Screw Key 5 MM | ||||
| 46 | 2610364015 | 2.71 | 3.28 | |
| Toothed Gear | ||||
| 49 | 2610388427 | 10.73 | 12.98 | |
| Housing Set | ||||
| 801 | 2609007280 | 20.42 | 24.71 | |
| No longer available, no replacement | ||||
| 808 | 2609001940 | |||
| No longer available, no replacement | ||||
| 813 | 2600905052 | |||
| Carbon-Brush Set 10 x 2 610 391 290 | ||||
| 816 | 1607000491 | 49.56 | 59.97 | |
| Carbon-Brush Set | ||||
| 816 | 2610391290 | 6.54 | 7.91 | |
| Conical Spring Washer | ||||
| 827 | 1605703108 | 2.24 | 2.71 | |
| Gear Shaft | ||||
| 848 | 2610387048 | 18.19 | 22.01 | |
| Parallel-Guide | ||||
| 860 | 2608005036 | 6.54 | 7.91 | |
